| Quantity: | |
|---|---|
DZ95259590077 DZ95259590078
Shacman
| Parameter | Specification |
|---|---|

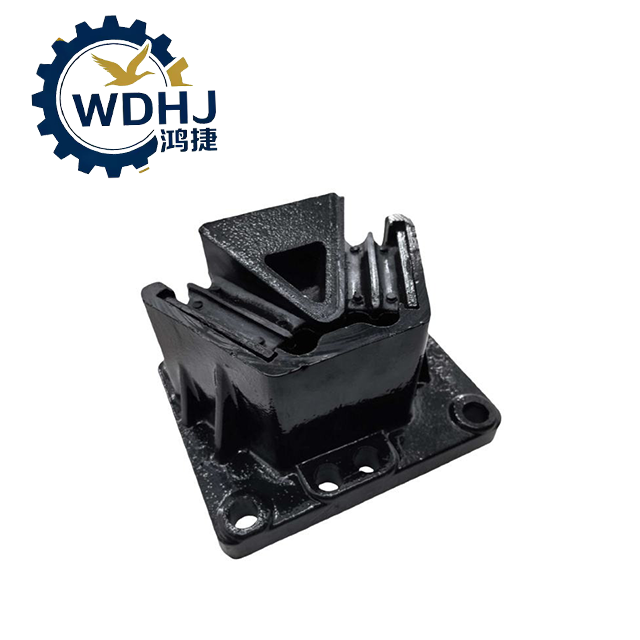

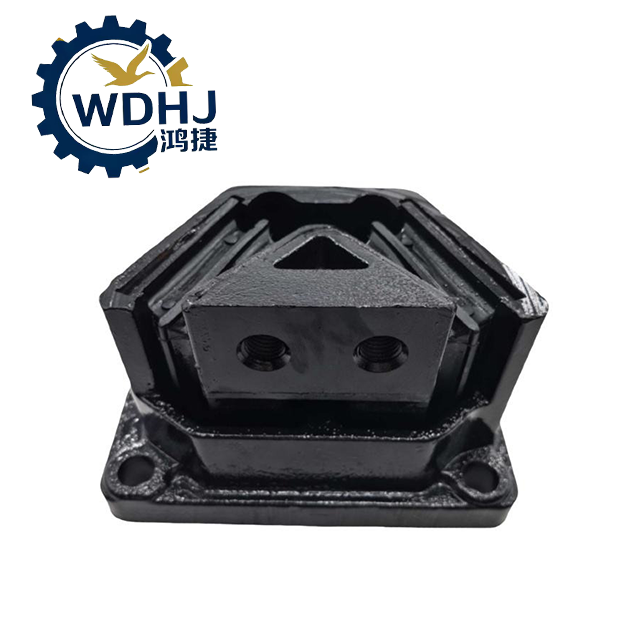

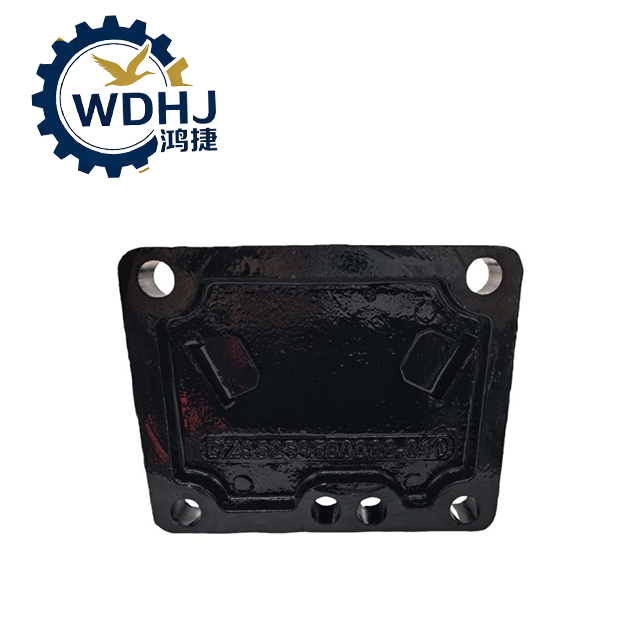

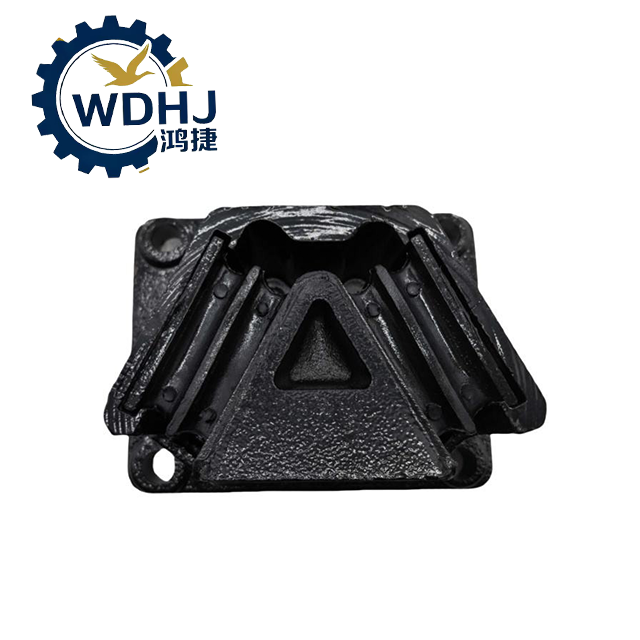

| Part Name | Left Front Engine Mounting Bracket |
| OEM Number | DZ95259590077 |
| Counterpart Part Number | DZ95259590078 (Right Front Engine Mount) – typically used as a pair |
| Construction | Dual-material: Steel bracket core + high-damping rubber bushing |
| Material | • Metal Frame: Cold-rolled steel with anti-corrosion coating • Rubber Element: Oil-resistant, heat-resistant synthetic rubber (NBR or EPDM) • Bonded via vulcanization process |
| Design Type | Compression-type engine mount with shear damping characteristics |
| Load Capacity | Designed for engines up to 460 HP (340 kW), typical for WP10/WP12 series |
| Weight (Approx.) | ~3.5 kg (7.7 lbs) |
| Dimensions | Custom-molded shape; exact dimensions are proprietary — must match original mounting holes and clearances |
| Color/Appearance | Black rubber body with silver/grey metal flange |
| Mounting Holes | Pre-drilled bolt holes for both engine-side and chassis-side attachment |
| Damping Direction | Effective in vertical and horizontal (lateral) directions to reduce engine shake during start-up, acceleration, and idle |
|
|
|
| Part Number | Part Name | Compatible Models | Specification / Model | Primary Application |
| DZ95259590067 | Engine Left Support Damping Pad | Shacman Delong F2000 / F3000 / X3000 | Left side, reinforced rubber-to-metal vulcanized mount | Engine Front/Rear Suspension Dampening |
| DZ95259590068 | Engine Right Support Damping Pad | Shacman Delong F2000 / F3000 / X3000 | Right side, heavy-duty anti-vibration compound | Powertrain Isolation & Noise Reduction |
| DZ93259590003 | Chassis Rubber Buffer Block | Shacman F2000 / F3000 / M3000 Tipper & Tractor | Molded rubber buffer, Shore hardness 70A | Chassis Frame Impact & Oscillation Absorption |
| DZ13241440150 | Cabin Front Shock Absorber Rubber Pad | Shacman Delong F3000 / M3000 / X3000 | Standard hydraulic/air cab suspension bushing | Cabin Suspension Front Mounting |
| DZ15221443420 | Cab Lateral Oscillation Damper Pad | Shacman Delong X3000 / H3000 / X5000 | Hydraulic telescopic damper with rubber end bushings | Cab Lateral Motion & Roll Stability Control |
| 81.96020.6103 | Engine Rear Support Rubber Cushion | Shacman F2000 / Steyr / MAN Tech Heavy Trucks | MAN technical standard, high-load vulcanized rubber | Rear Engine Mounting & Torque Restraint |
| DZ9725520278 | Leaf Spring Rubber Bushing & Cushion Pad | Shacman Delong F3000 / X3000 (6x4, 8x4) | Reinforced rubber with inner steel sleeve | Axle Leaf Spring Suspension Dampening |
| DZ96259590097 | Engine Front Mounting Damping Pad | Shacman Delong X3000 / X5000 / Weichai WP12 Engine | Polyurethane & natural rubber composite compound | Front Engine Support Vibration Isolation |
| DZ93189552071 | Transmission Support Rubber Cushion | Shacman Delong X3000 / M3000 with Fast Gearboxes | Dual-bolt mounting heavy-duty rubber pad | Gearbox Support & Transmission Vibration Control |
| DZ95259602038 | Chassis Vibration Damping Rubber Pad | Shacman Delong F3000 / X3000 Heavy Tipper Series | High-density wear-resistant rubber block | Rear Axle Suspension Frame Buffer |
