61500010344
Shacman Sinotruk HOWO
| Parameter | Specification |
|---|---|

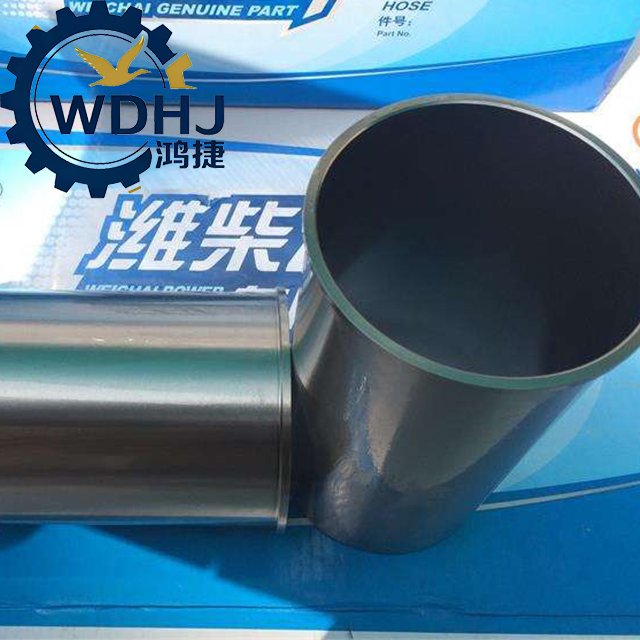

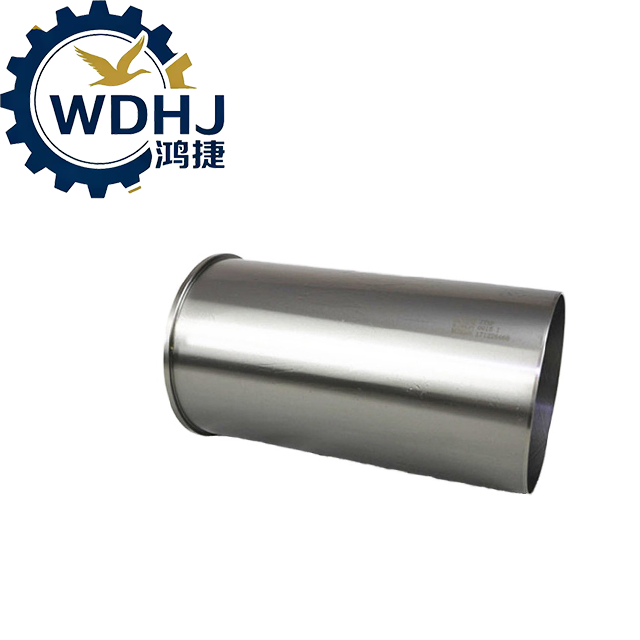

| Part Name | Engine Cylinder Liner / Cylinder Sleeve |
| OE Number | 61500010344 |
| Brand(s) | Weichai (Original Equipment), compatible with SINOTRUK HOWO, SHACMAN |
| Type | Wet-Type Cylinder Liner (direct contact with coolant) |
| Bore Diameter (STD) | 126 mm (Standard Size) |
| Available Oversizes | +0.25 mm, +0.50 mm, +0.75 mm, +1.00 mm (via related part numbers) |
| Material | High-strength cast iron (often pearlitic matrix with alloying elements) |
| Surface Treatment | Nitrided or chrome-plated inner bore for enhanced wear resistance |
| Coolant Contact | Outer wall directly exposed to cooling water jacket |
| Sealing System | Equipped with: |
| Manufacturer | Compatible Models |
|---|---|
| SINOTRUK (China National Heavy Duty Truck Group) | HOWO, HOHAN, Golden Prince, T7H, A7, Steyr King series |
| SHACMAN (Shaanxi Automobile Group) | F2000, F3000, M3000, X3000 series trucks |
| Dongfeng (DFAC) | Heavy-duty variants using Weichai engines |
| Foton Auman | ETX, L900 series with Weichai powertrain |
| Construction Machinery | Wheel loaders, excavators, dumpers with Weichai WD615/WP12 engines |
|
|
|
