Trailer Parts
| Attribute | Description |
|---|---|

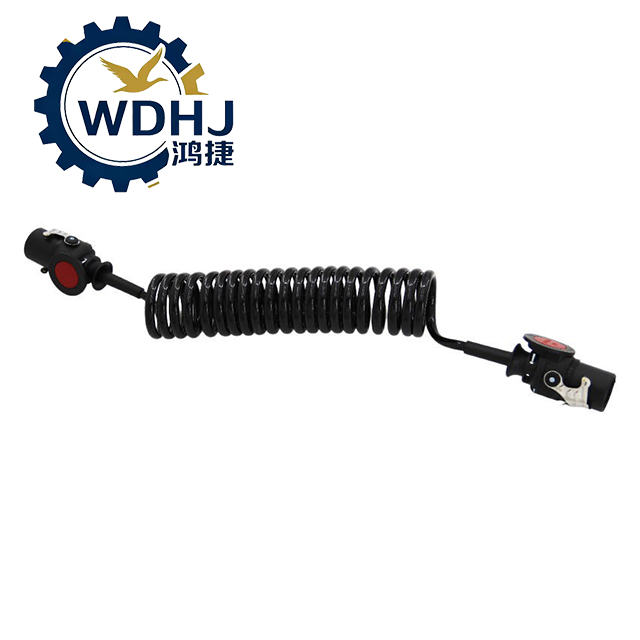

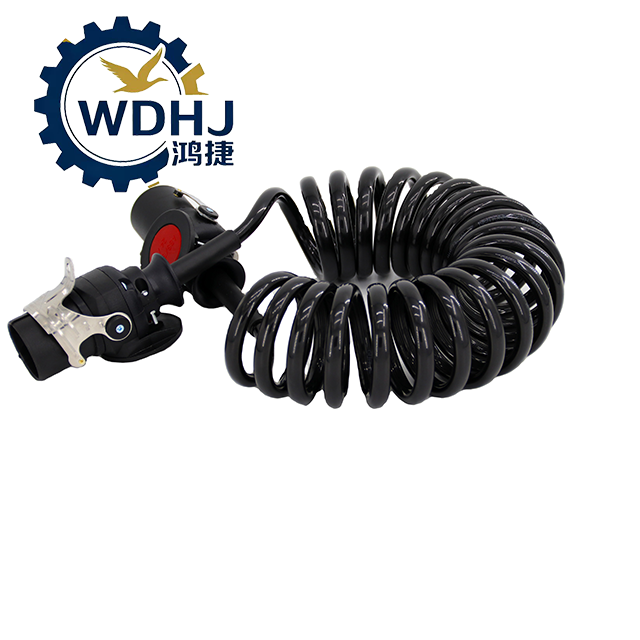

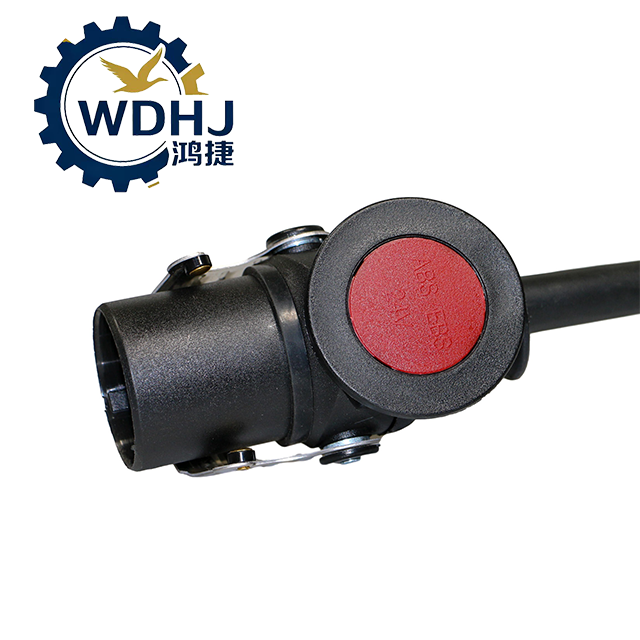

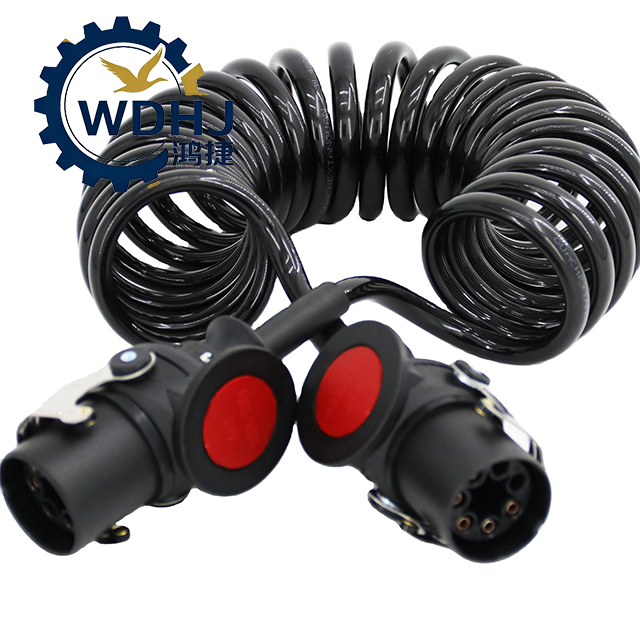

| Product Name | Trailer Tow Wiring Harness / Towing Electrical Cable |
| Common Names | Tow Line, Trailer Light Connector, Trailer Wiring Kit, Towing Harness |
| Application | Connecting trailer lighting system to towing vehicle |
| Connector Type | 4-Pin, 5-Pin, 6-Pin, 7-Pin (Blade or Round), ISO 1724, SAE J560 (heavy-duty) |
| Standard Compliance | ISO 11446, ISO 1724, SAE J560, ECE R121, DOT, CE |
| Cable Material | Copper conductors with PVC or rubber insulation |
| Jacket Material | Flexible PVC, Rubber, or TPE (Thermoplastic Elastomer) |
| Protection Grade | IP67 (dustproof and waterproof when connected) |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Cable Length | 3m, 5m, 8m, 10m (custom lengths available) |
| Color Coding | Standardized per ISO (e.g., Brown = Tail Light, Green = Right Turn, etc.) |
| Installation Type | Plug-and-play, hardwired, or universal adapter kits |
| Reusability | Yes – durable for multiple trailers and vehicles |
| Parameter | Specification |
|---|---|
| Model Number | TW-7P-ISO11446 |
| Connector Standard | ISO 11446 (7-pin flat) |
| Voltage Rating | 12V / 24V DC |
| Current Capacity | 20A max per circuit (brake light), 10A for others |
| Wire Gauge | 16 AWG (1.5 mm²) – standard; 14 AWG (2.5 mm²) for heavy loads |
| Insulation Resistance | ≥ 50 MΩ |
| Dielectric Withstanding | 500 V AC, 1 min (no breakdown) |
| Connector Shell Material | UV-resistant ABS plastic or nylon |
| Contact Material | Brass, tin-plated or copper alloy |
| Cable Outer Diameter | Approx. 8–12 mm |
| Bend Radius (Min) | 5x cable diameter |
| Life Cycle (Plug/Unplug) | ≥ 10,000 cycles |
| Approvals | E-marked, CE, RoHS compliant |
