Trailer Parts
| Attribute | Description |
|---|---|

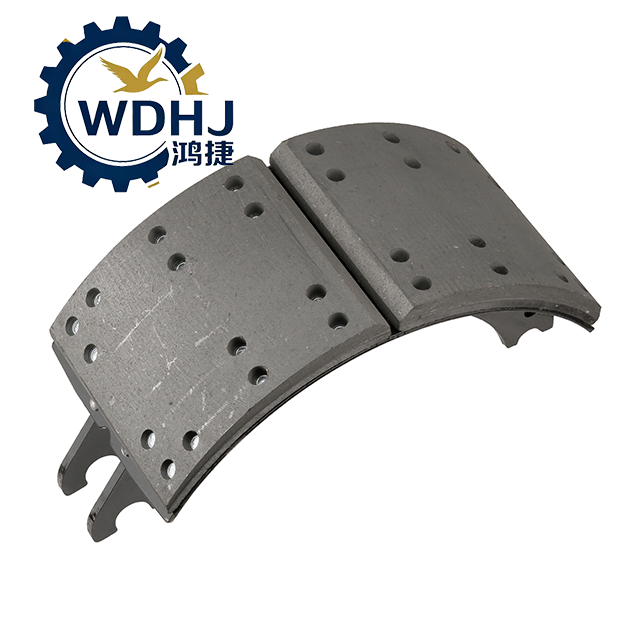

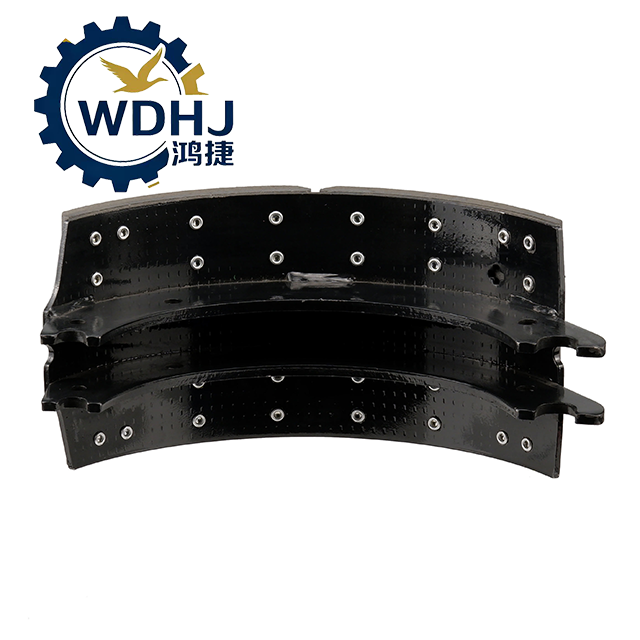

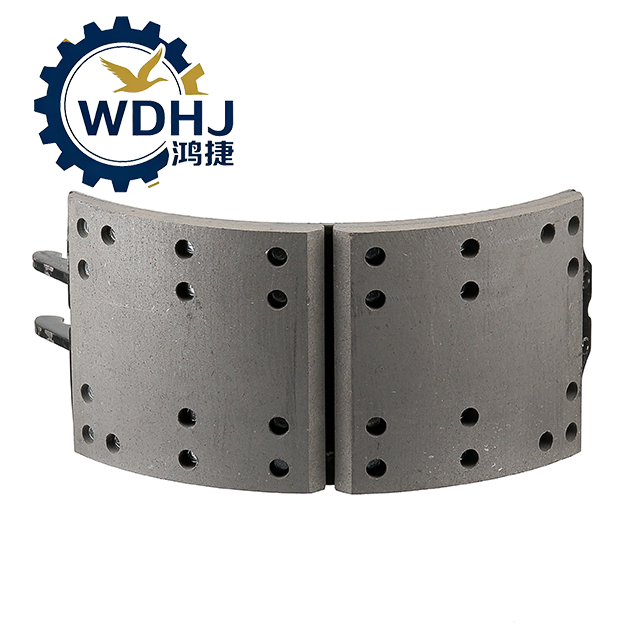

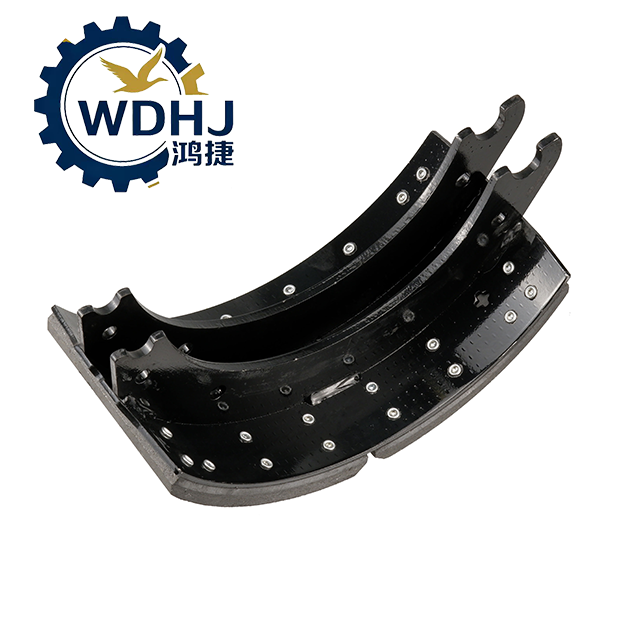

| Product Name | Brake Shoe / Drum Brake Shoe |
| Common Names | Friction Shoe, Lining Shoe, S-Cam Brake Shoe |
| Application | Front/rear axles of trucks, trailers, buses, and commercial vehicles |
| Backing Plate Material | High-tensile steel (Q235 or similar), rust-resistant coating |
| Friction Linings | Riveted or bonded non-asbestos organic (NAO), semi-metallic, or low-copper |
| Friction Attachment Type | Bonded (glued) or Riveted (more durable under high heat) |
| Operating Principle | Expands outward via S-cam or cam mechanism to press lining against drum |
| Temperature Resistance | Up to 400°C (short-term peak) |
| Standards Compliance | ECE R90 Class A/B, FMVSS 105, ISO 9001, GB 5765, DOT, REACH, RoHS |
| Reusability | No – replace as part of regular maintenance or overhaul |
| Typical Axle Load Range | 8,000 kg to 13,000 kg per axle (depending on design) |
| Parameter | Specification |
|---|---|
| Model Number | BS-TL28-70 |
| Compatible Brake System | Meritor 28 Series, 70" S-Cam, Bendix 28DV |
| Shoe Dimensions (H × W × Arc) | 28 mm × 170 mm × 70" arc length |
| Friction Material Type | Semi-metallic, non-asbestos |
| Coefficient of Friction (μ) | 0.38–0.42 (tested per SAE J661 at various temperatures) |
| Static Torque Output | Up to 22,000 N·m (system-dependent) |
| Max Operating Temperature | 350°C continuous, 400°C peak |
| Weight (per shoe) | ~3.2 kg |
| Wear Limit Indicator | Visual groove or thickness mark (replace at <3 mm) |
| Approvals | E-marked (E1, E9, etc.), meets ECE R90 Class A |
