Trailer Parts
| Attribute | Description |
|---|---|

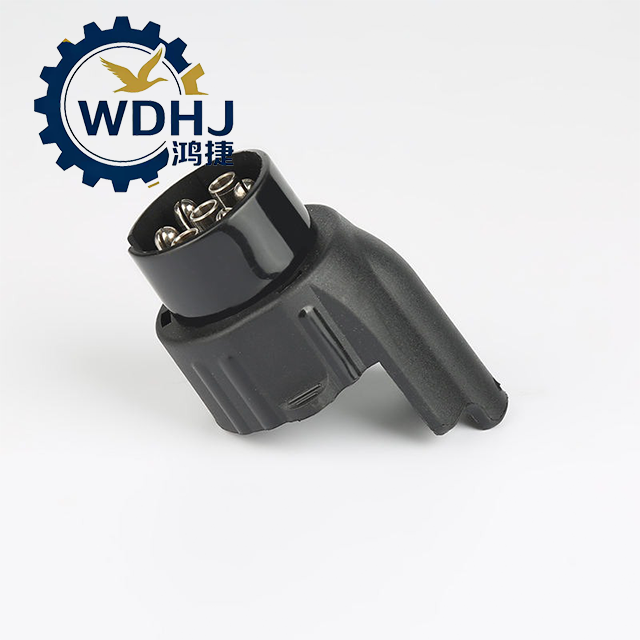

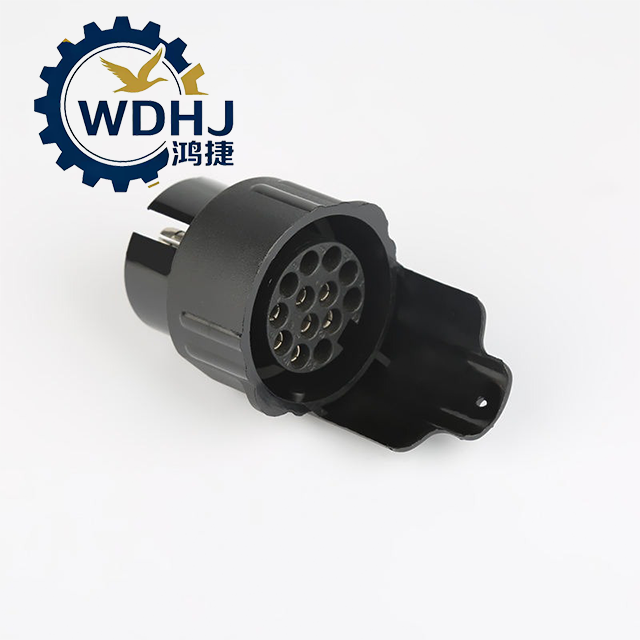

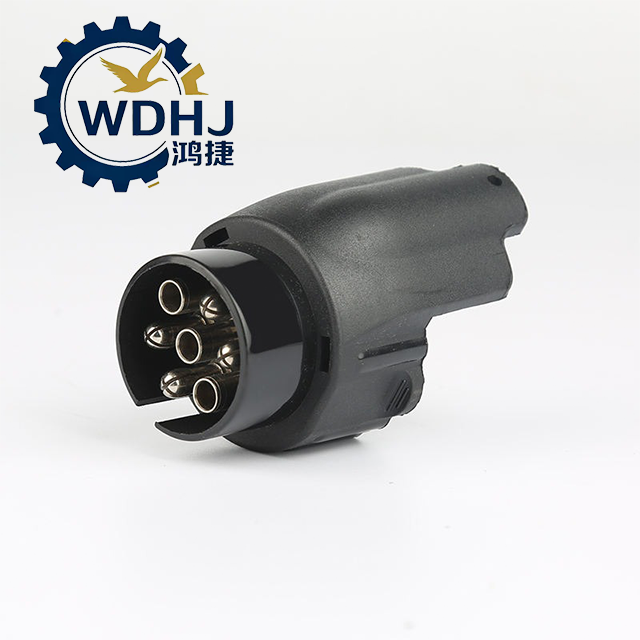

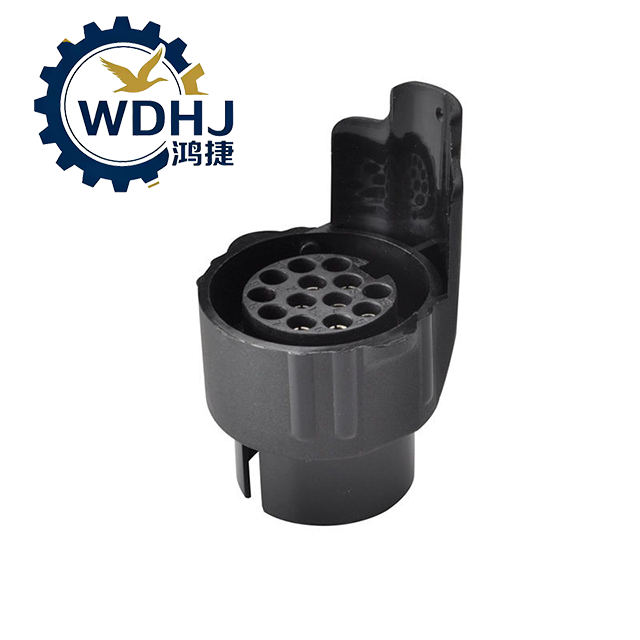

| Product Name | Trailer Connector Plug / Trailer Electrical Plug |
| Common Names | Tow Plug, Trailer Socket, Trailer Electrical Connector |
| Function | Transmits electrical signals: brake lights, turn signals, tail lights, ground, battery charge, ABS |
| Connector Types | 4-Pin, 5-Pin, 6-Pin, 7-Pin Flat (ISO 11446), 7-Pin Round (ISO 1724), SAE J560 (heavy-duty) |
| Standard Compliance | ISO 11446, ISO 1724, SAE J560, ECE R121, DOT, CE, RoHS |
| Housing Material | UV-resistant ABS plastic, nylon, or rubber |
| Contact Material | Brass or copper alloy, tin-plated or silver-coated |
| Protection Rating | IP67 (dust-tight and waterproof when mated) |
| Voltage Rating | 12V / 24V DC |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Mounting Type | Panel mount, inline, pigtail cable, flush mount |
| Cable Length (if included) | 0.5m – 3m (standard), custom lengths available |
| Color Coding | Standardized per ISO (e.g., Brown = Tail Light, Green = Right Turn Signal) |
| Reusability & Durability | High – designed for frequent connect/disconnect cycles |
| Parameter | Specification |
|---|---|
| Model Number | TC-7P-ISO11446 |
| Standard | ISO 11446 (7-pin flat) |
| Number of Pins | 7 pins |
| Pin Configuration | Standard ISO layout (see pinout below) |
| Current Rating per Circuit | 20A (brake/tail), 10A (others) |
| Insulation Resistance | ≥ 50 MΩ |
| Dielectric Strength | 500 V AC, 1 minute (no breakdown) |
| Contact Resistance | ≤ 10 mΩ |
| Mating Cycle Life | ≥ 10,000 cycles |
| Cable Gauge (if included) | 16 AWG (1.5 mm²) or 14 AWG (2.5 mm²) optional |
| Plug Dimensions | Approx. 65 mm × 35 mm × 25 mm |
| Weight | ~80–120 g (depending on housing and cable) |
| Approvals | E-marked, CE, RoHS, compliant with FMVSS 108 (USA) |
