HD469-2403016
Trailer Parts

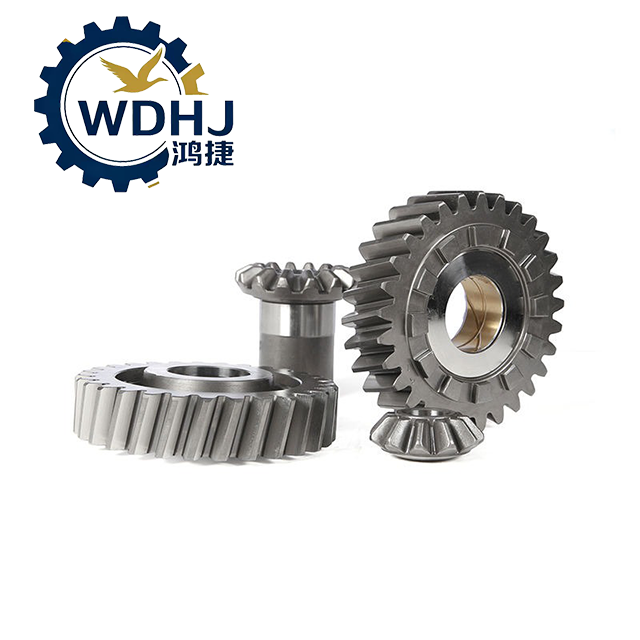

| Attribute | Description |
|---|---|
| Product Name | Planetary Gear Differential |
| Common Names | Planetary Diff, Epicyclic Differential, Axle Reduction Unit |
| Function | Distributes engine torque between wheels/axles; allows speed differentiation |
| Core Mechanism | Sun gear, planet gears (3–6), planet carrier, ring gear (internal teeth) |
| Application | Heavy-duty trucks, trailers, mining trucks, military vehicles, off-road machinery |
| Mounting Type | Inboard (within axle housing) or hub-mounted (hub reduction) |
| Gear Material | Alloy steel (e.g., 20CrMnTi, 42CrMo), carburized & hardened |
| Heat Treatment | Carburizing, quenching, tempering for surface hardness and core toughness |
| Lubrication System | Oil bath or forced lubrication (via axle lube system) |
| Operating Temperature | -40°C to +150°C |
| Standard Compliance | ISO 9001, SAE J615, DIN 743, GB/T 3480, API GL-5 compatible |
| Sealing Type | Double-lip oil seals with anti-leak design |
| Parameter | Specification |
|---|---|
| Model Number | PD-MERITOR-DRA140 |
| Type | Planetary Final Drive (Double Reduction) |
| Gear Ratio (Final Drive) | 3.7:1 to 5.9:1 (configurable per model) |
| Max Input Torque | Up to 25,000 N·m |
| Output Torque Capacity | Up to 60,000 N·m (after reduction) |
| Number of Planet Gears | 4 or 6 (symmetrically arranged) |
| Sun Gear Teeth | 16–20 |
| Planet Gear Teeth | 18–22 |
| Ring Gear (Internal) Teeth | 52–68 |
| Gear Module | 5–8 mm |
| Hardness (Surface) | HRC 58–62 (case-hardened) |
| Bearing Support | Tapered roller bearings (high-load capacity) |
| Lubricant Required | API GL-5 80W-90 or 85W-140 gear oil |
| Weight (approx.) | 85–110 kg (varies by axle integration) |
| Approvals | Meets Meritor MSA140 spec, E-marked, ISO 9001 certified |
| Part Number (OEM NO.) | Part Name | Compatible Shacman Models | Specification |
|---|---|---|---|
| HD469-2403016 | Rear Axle Wheel Side Differential Planetary Gear | Shacman Delong X3000, M3000, F3000, X5000 series, Shacman Aolong, Xuande series | Teeth: 22; Module: 1; Material: High-carbon chrome steel; Compatible Axle: HanDe HD469 axle; Heat treatment: HRC 58-63; Position: Rear axle wheel side differential |
| HD469-2510013 | Inter-Axle Differential Planetary Gear | Shacman Delong X3000, M3000, F3000 series, Shacman Aolong | Teeth: 18; Material: Case-hardened bearing steel; Compatible Axle: HanDe HD469 inter-axle differential; Position: Inter-axle differential assembly; OEM standard fitment |
| 81.35114.6113 | Wheel Side Planetary Carrier Assembly | Shacman Delong F3000, X3000, M3000, H3000, L3000, X5000, X6000 series | Material: High-strength alloy steel; Compatible Axle: HanDe MAN-type axle; Planetary gear teeth: 18; Internal ring gear teeth: 56; Gear ratio: 3.947; Weight: 24.4kg |

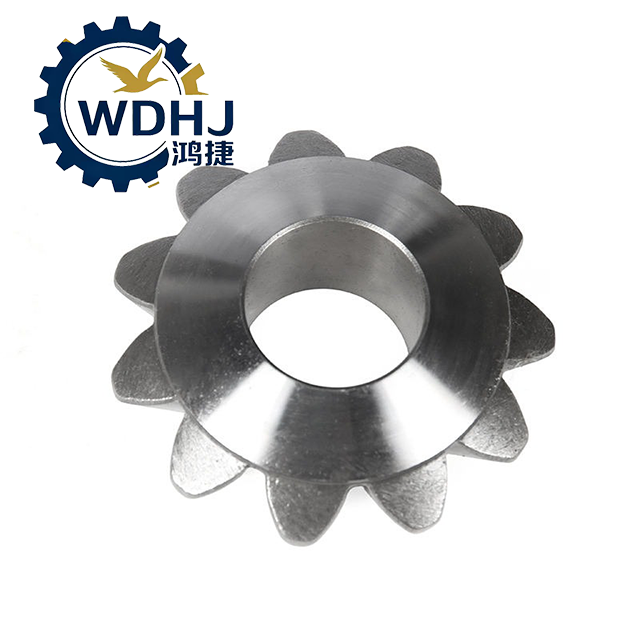

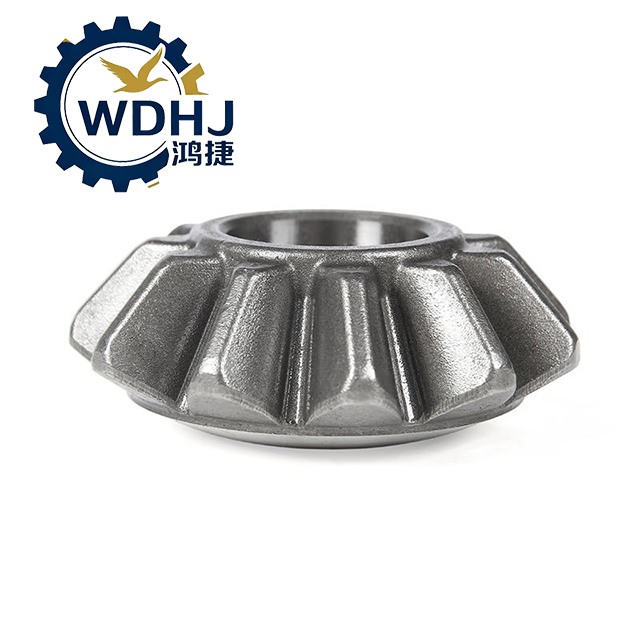

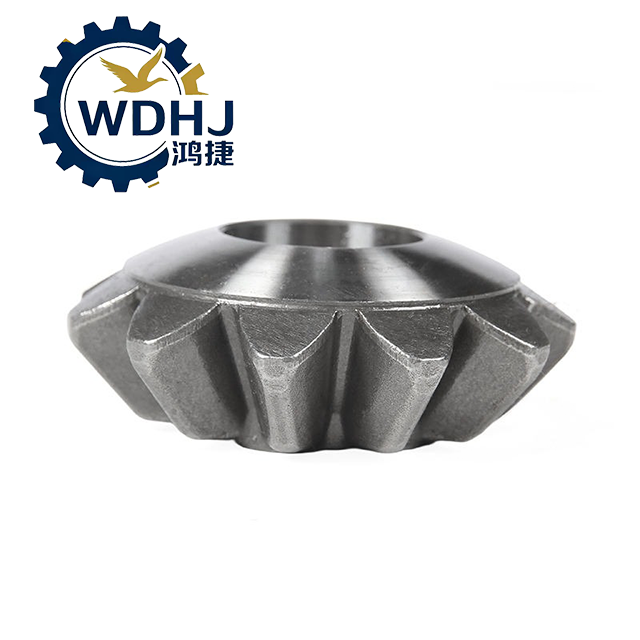

| 81.35108.0059 | Differential Bevel Planetary Gear | Shacman X3000, F3000, M3000 series, Sinotruk HOWO, Sitrak series | Teeth: 11; Material: Forged alloy steel; Hardness: HRC 58-63; Design standard: MAN Group engineering tolerances; Weight: 0.15-0.25kg per gear; Position: Axle differential assembly |
| DZ9112320710 | Planetary Gear Assembly | Shacman Delong X3000, M3000, F3000 series | Material: GCR15 bearing steel; Compatible Axle: HanDe 485/469 axle; Heat treatment: Carburizing quenching; OEM standard size; Direct replacement for original parts |
| 99000420050 | Planetary Wheel (Planetary Gear) | Shacman heavy duty trucks, Delong F2000, F3000 series | Teeth: 16; Material: High-quality cast steel; Position: Transmission planetary assembly; Compatible transmission: HW19710 series transmission; Surface hardness: HRC 55-60 |
| 199012340122 | Planetary Gear for Heavy Duty Truck | Shacman Delong series, Sinotruk HOWO, Sitrak, FAW, FOTON series | Material: High-strength forged steel; Certification: TUV, GS; Warranty: 1 year; OEM quality; Compatible with multiple heavy duty truck axles and transmissions |
| HD469-2403081 | Rear Axle Differential Planetary Gear | Shacman HanDe 469 axle trucks, Delong X3000, M3000 series | Teeth: 20; Module: 1.5; Material: High-carbon steel; Heat treatment: Quenching and tempering; Position: Rear axle differential; Compatible with 430mm clutch systems |
| 81.93021.0219 | Planetary Gear Copper Sleeve Assembly | Shacman Delong F3000, X3000 series | Material: Copper alloy + steel; Position: Rear axle differential planetary gear; Wear-resistant design; OEM standard fitment; Compatible with HanDe axles |
| DZ90149320011 | Planetary Gear Thrust Washer | Shacman HanDe 469/485 axle trucks, Delong X3000, M3000 series | Material: Wear-resistant alloy steel; Thickness: 2mm; Position: Planetary gear assembly; Anti-wear design; OEM standard size |
