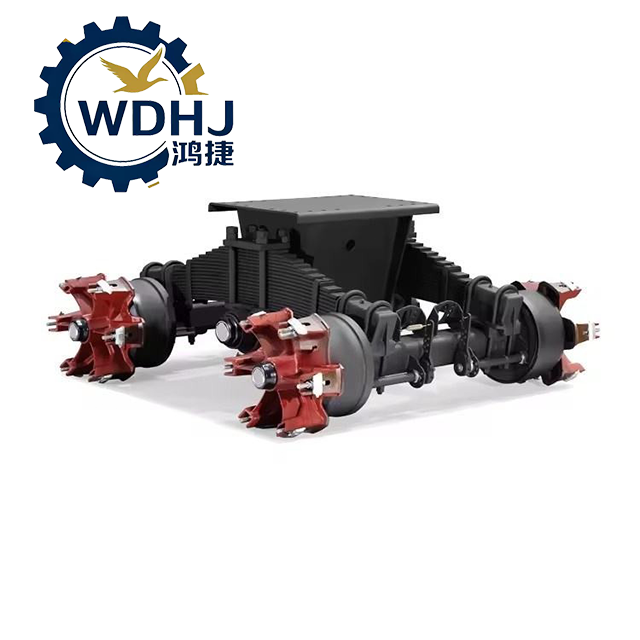

Trailer Parts
| Attribute | Description |
|---|---|
| Product Name | Trailer Suspension System |
| Common Types | Leaf Spring, Air Suspension, Torsion Rubber, Walking Beam, Parabolic Spring |
| Application | Commercial trailers, dump trucks, flatbeds, refrigerated vans, RVs |
| Load Capacity Range | 5,000 kg to 30,000 kg per axle (depending on type and configuration) |
| Material Construction | High-strength steel (springs, hangers), aluminum alloy (air suspension arms), rubber (torsion), reinforced elastomers |
| Mounting Position | Front, rear, or tandem axle setups |
| Damping Mechanism | Springs + shock absorbers (optional), air bags, rubber elements |
| Adjustment Capability | Height control (air suspension), camber adjustment (some models) |
| Corrosion Protection | Galvanized, powder-coated, or stainless components |
| Compliance Standards | ISO 16337, ECE R90, FMVSS, SAE J2498, EN 13046 |
| Operating Temperature | -40°C to +80°C |
| Maintenance Requirement | Low to moderate (air systems require more checks) |
| Customization Available | Yes – axle spacing, stroke length, ride height, OEM fitment |
| Parameter | Air Suspension (Model: AS-13T) | Double-Layer Leaf Spring (Model: LS-10T) |
|---|---|---|
| Rated Load Capacity | 13,000 kg/axle | 10,000 kg/axle |
| Spring Type | Air Bellows (x2 per axle) | Multi-leaf parabolic (5 leaves) |
| Ride Height Adjustment | Yes (adjustable via air pressure) | Fixed |
| Stroke (Travel Distance) | ±75 mm | ±50 mm |
| Natural Frequency | 1.1–1.3 Hz | 1.6–1.8 Hz |
| Damping System | Optional hydraulic shock absorbers | Standard rebound straps |
| Axle Mounting Style | Direct clamp or U-bolt mount | U-bolt mounted |
| Hanger Material | Q345 Steel, hot-dip galvanized | Q235 Steel, painted |
| Shock Absorber (if included) | Double-tube, nitrogen-filled, 10" stroke | Not standard |
| Weight (per side) | ~65 kg | ~48 kg |
| Compatible Axle Size | Ø80–Ø100 mm | Fits standard trailer axles |
| Approvals | E-marked, ISO 16337, SAE J2498 | ISO 16337, GB/T Standards |
