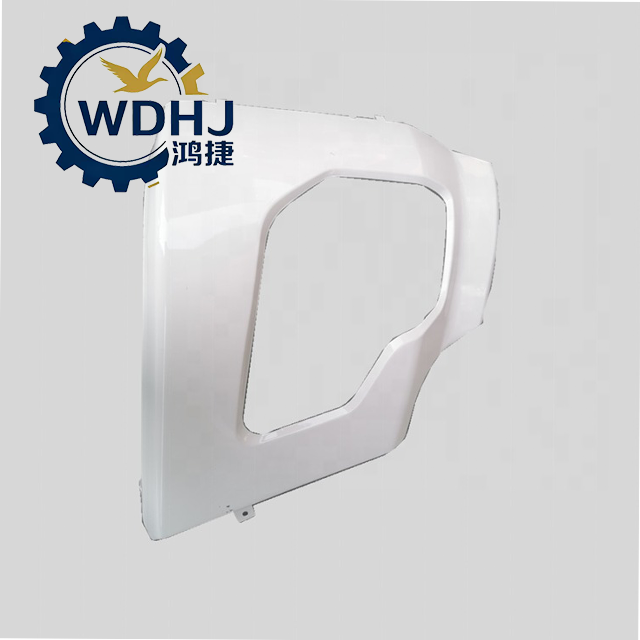

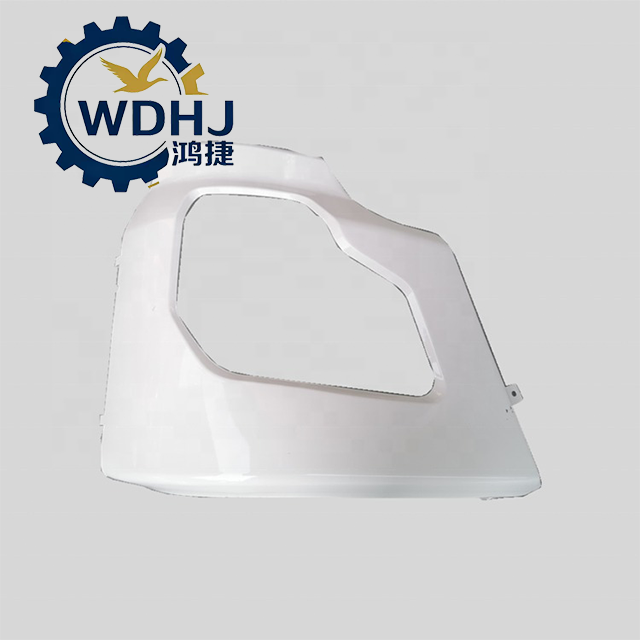

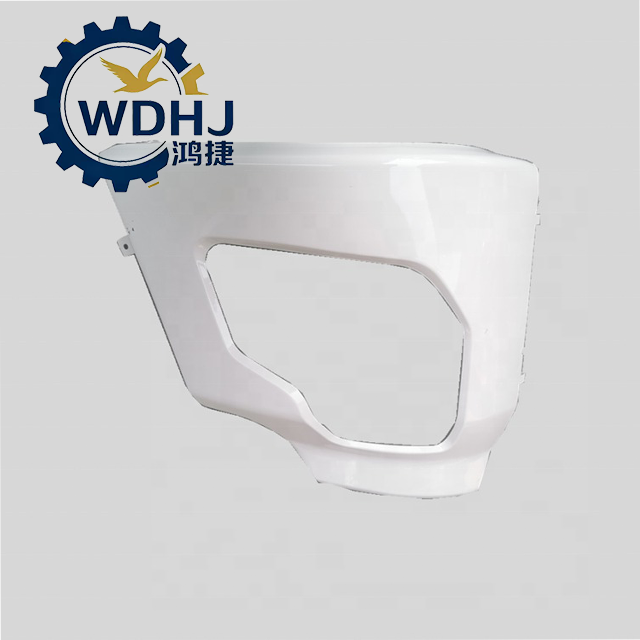

Dongfeng Truck Body Spare Parts Front Left Bumper 8406019-C0101

The 8406019-C0101 Left Bumper Assembly is a factory-original front bumper section designed specifically for the left-side portion of the front bumper system on Dongfeng Tianlong KL, KX, and related heavy-duty truck models. As part of the vehicle’s modular front-end structure, this component plays a critical role in enhancing aerodynamics, protecting underlying cooling modules, and providing mounting points for auxiliary lighting and safety accessories.

Constructed from high-impact modified polypropylene (PP+EPDM) or ABS engineering plastic, the bumper offers excellent resistance to UV radiation, temperature extremes, and road debris impact. It features an integrated design with pre-formed apertures for fog lights, turn signals, and sensor mounts (on select configurations), ensuring seamless integration with the full front fascia.

Engineered to meet modern safety and aesthetic standards, this left bumper section contributes to both vehicle functionality and driver visibility while maintaining OE-level fit and finish.

Quantity:
Availability:





Inquire Add to Basket

Model:
8406019-C0101
Brand:
Dongfeng

Product Description

Attribute	Description
Part Number (OE)	8406019-C0101
Product Name	Left Front Bumper Section / Left Side Bumper Cover
Common Names	Driver-Side Bumper Panel, Front Corner Bumper (Left)
Application Position	Front-left corner of cab (connects to central grille and main bumper frame)
Vehicle Brand	Dongfeng Commercial Vehicle (DFCV)
Compatible Models	Dongfeng Tianlong KL, KX Flagship, GX Series
Cab Platform	D310 / D320 High-Roof Cab
Main Material	Modified PP+EPDM or ABS engineering plastic
Surface Finish	Textured black; primed for paint-to-match (original color: Dongfeng White or custom)
Mounting Method	Bolt-on + snap-fit clips (plastic fasteners)
Function	Structural support, aerodynamic shaping, protection, accessory mounting
Design Standard	Meets DFCV OE specifications; compliant with GB/T 24556 and crash safety norms

Parameter	Specification
Material Type	High-impact thermoplastic (PP+EPDM) or ABS composite
UV Resistance	>2,000 hours QUV accelerated weathering test (no cracking/fading)
Impact Strength	Withstands stone chip impacts up to 40 J at -30°C
Thermal Stability	Operates reliably from -40°C to +90°C
Paint Adhesion	Compatible with urethane-based automotive paints
Installation Compatibility	Matches center grille and right-side bumper (8406020-C0101)
Integrated Features	Pre-cut holes for fog lamp, side marker light, and optional radar/sensor bracket
Weight (Approx.)	4.2 – 5.6 kg (varies by internal reinforcement)
Service Life	6–10 years under normal operating conditions
