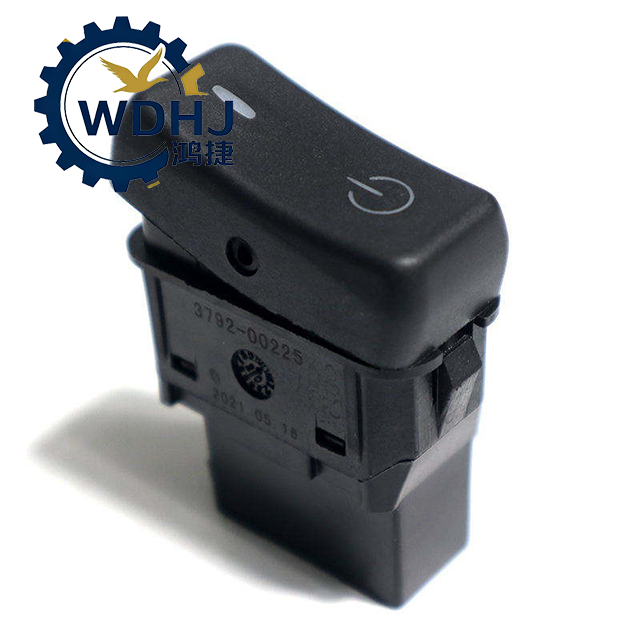

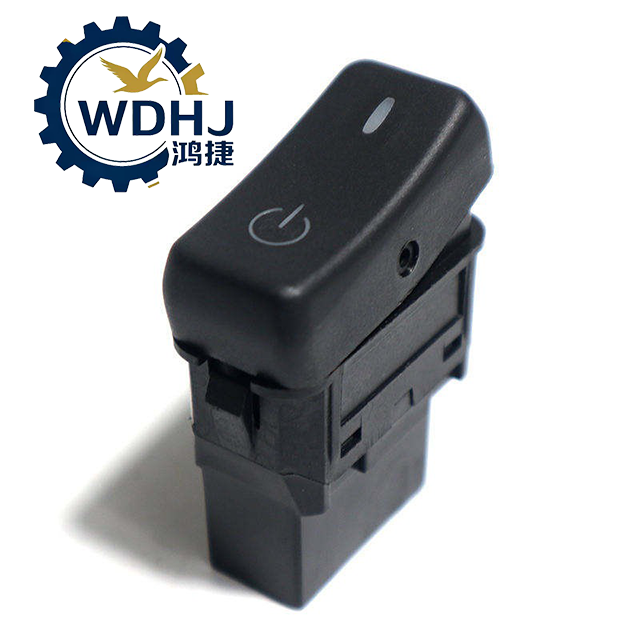

3792-00225
Yutong Bus Parts
| Attribute | Description |
|---|---|
| Part Number | 3792-00225 |
| Product Name | Main Power Rocker Switch / Master Power Control Switch |
| Application | Medium & Large Passenger Buses (Chinese Domestic Brands) |
| Function | Turn ON/OFF vehicle auxiliary power system |
| Mounting Location | Dashboard / Instrument Panel |
| Switch Type | Rocker Switch (ON-OFF), with or without self-locking mechanism |
| Pole Configuration | SPST (Single Pole Single Throw) or DPDT (Double Pole Double Throw) |
| Housing Material | Flame-Retardant ABS Plastic / Nylon (High Heat & Impact Resistance) |
| Lens/Indicator | Optional built-in LED (Red/Green) for power status indication |
| Installation Method | Panel-mounted (Standard Cut-out: ~21mm x 37mm) |
| Ingress Protection | IP67 (Dust tight and protected against temporary immersion) |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Compliance Standards | ISO 9001, GB/T 28208, CCC Certification |
| Parameter | Specification |
|---|---|
| Rated Voltage | 24V DC (standard); compatible with 12V systems |
| Maximum Current | 20A (resistive load) |
| Contact Resistance | ≤ 50 mΩ |
| Insulation Resistance | ≥ 100 MΩ at 500V DC |
| Dielectric Strength | 1500V AC for 1 minute (no flashover or breakdown) |
| Mechanical Life | ≥ 100,000 cycles |
| Electrical Life | ≥ 50,000 cycles at full load |

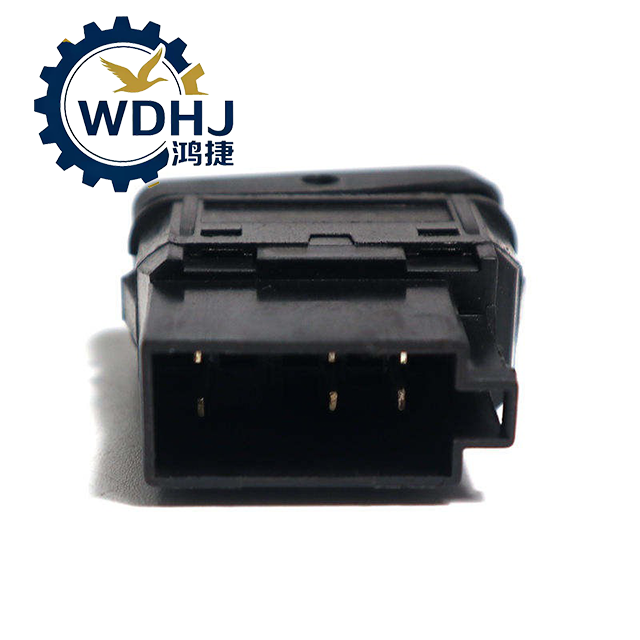

| Terminal Type | Faston 6.3mm (0.25") or spade terminals (3–5 pins) |
| Indicator Light (if equipped) | 24V LED (Red or Green), current draw < 20mA |
| Actuation Force | 3–6 N (smooth yet tactile feedback) |
| Vibration Resistance | Meets GB/T 28046.3 (Automotive Electronics) |
