Yutong Bus Parts
| Attribute | Description |
|---|---|

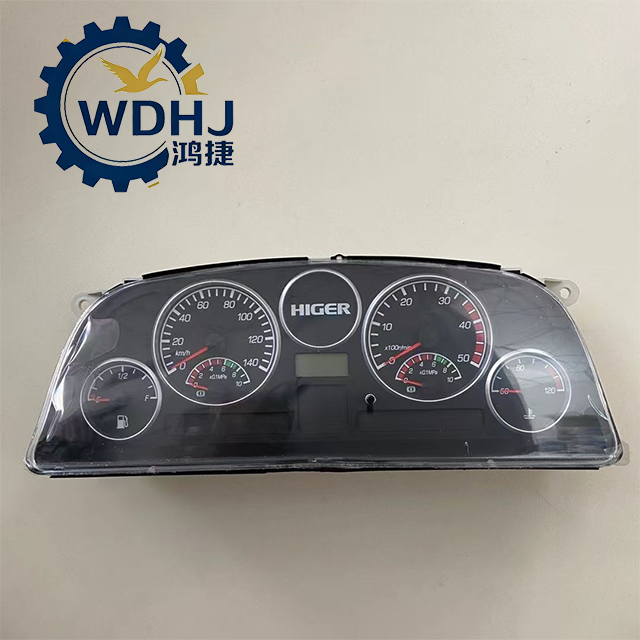

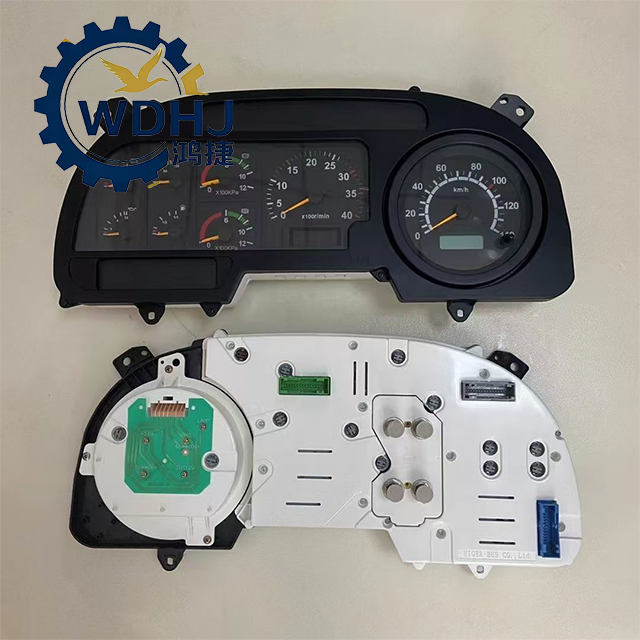

| Product Name | Instrument Cluster / Dashboard Assembly |
| Common Applications | Passenger Vehicles, Commercial Buses, Heavy-Duty Trucks, Specialized Equipment |
| Display Type | Analog (Needle Gauges) + Digital LCD/LED Segment or TFT Screen |
| Core Function | Monitor and display engine and vehicle operating parameters |
| Communication Interface | CAN Bus (CAN 2.0B / J1939 for commercial vehicles) |
| Mounting Style | Direct fit into dashboard housing (OEM-specific design) |
| Power Supply | 12V DC or 24V DC (depending on vehicle platform) |
| Illumination | LED Backlighting (adjustable brightness via ambient light sensor) |
| Compliance Standards | ISO 7637, ECE R121, GB/T 19056 (recording function if applicable) |
| Parameter | Details / Typical Range |
|---|---|
| Operating Voltage | 12V DC (cars/light vehicles) 24V DC (buses/trucks) |
| Input Signal Types | - Pulse signals (speed, RPM) - Analog voltage (fuel level, temperature) - Digital CAN messages (DTCs, fault warnings) |
| Gauges Included | - Speedometer - Tachometer (RPM) - Fuel Level Gauge - Coolant Temperature Gauge - Oil Pressure Indicator - Voltmeter (battery voltage) |
| Warning Indicators | Check Engine, ABS, Airbag, Low Oil, Parking Brake, Door Ajar, Seatbelt, etc. |
| Backlight Color | White or Soft Orange (user-preferred or OEM-standard) |
| Ambient Light Sensor | Optional – enables automatic dimming at night |
| Data Logging Capability | Some models include trip data, odometer freeze, driver ID recognition |
| Environmental Protection | IP54 rated (dust and splash resistant) |
| Operating Temperature Range | -30°C to +85°C |
| Vibration Resistance | Meets ISO 16750-3 standards |
| Expected Service Life | > 10 years or 150,000 km under normal use |
