6100-13886
Yutong Bus Parts
| Attribute | Description |
|---|---|
| Part Number | 6100-13886 |

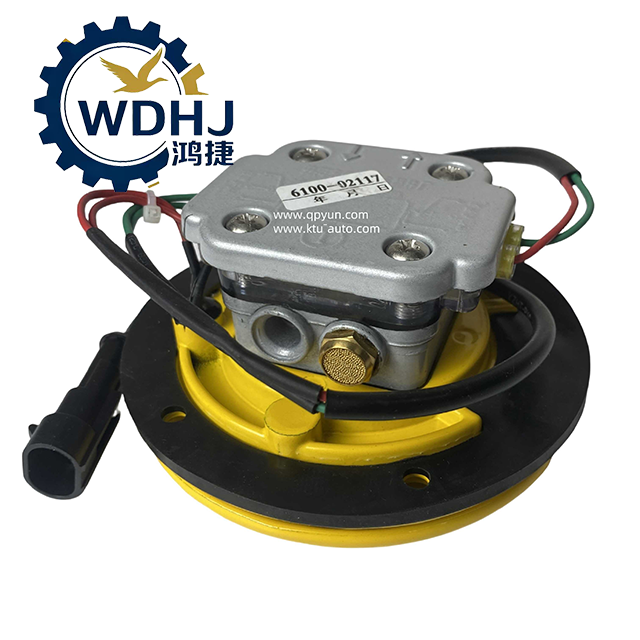

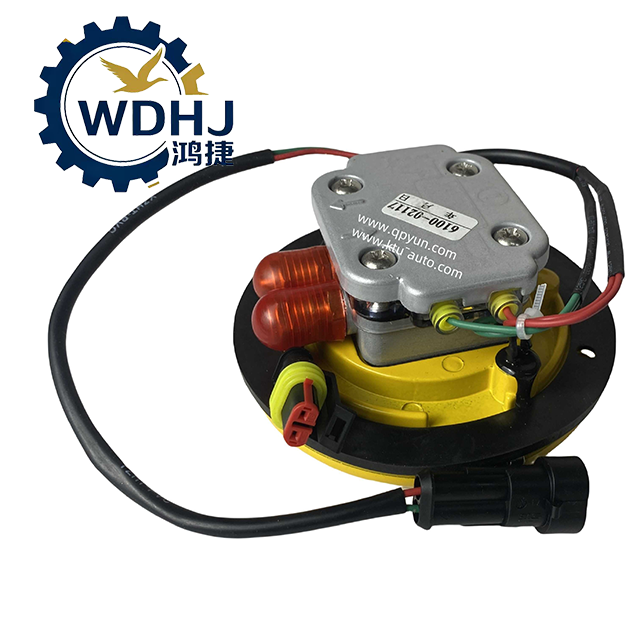

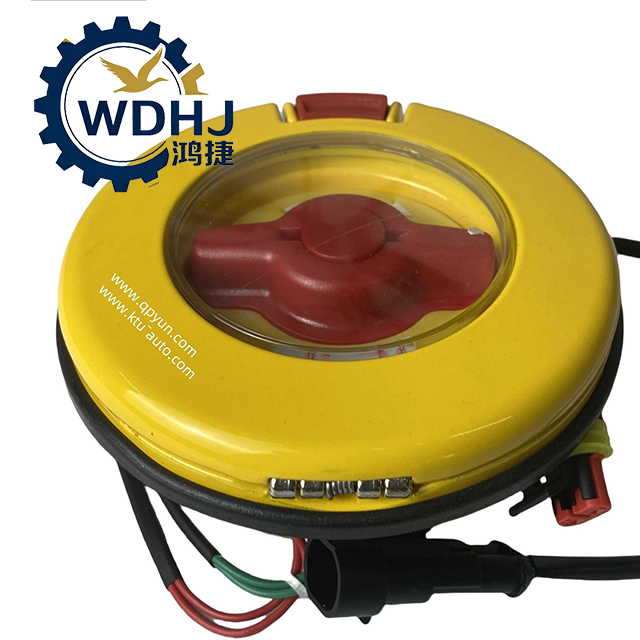

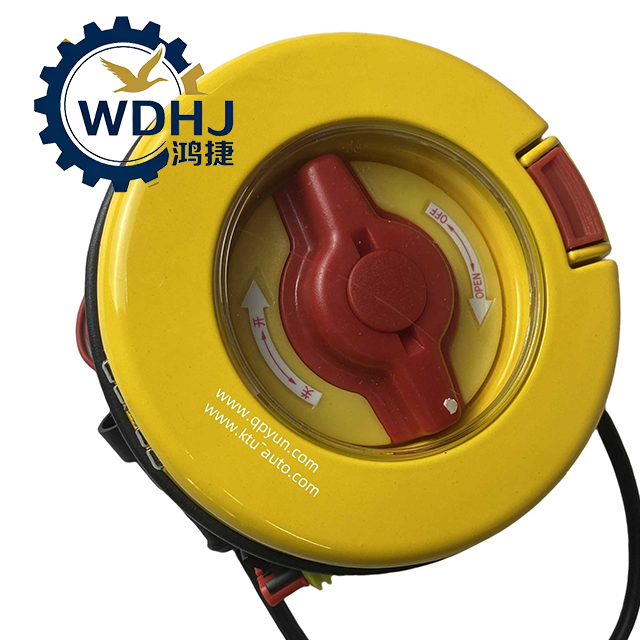

| Product Name | Emergency Valve Switch / Emergency Air Release Switch |
| Brand/Compatibility | Yutong Bus (Original Equipment) |
| Application | Pneumatic door system control, emergency air discharge |
| Function | Activates emergency air valve to unlock/partially open bus doors |
| Installation Location | Driver's console or emergency operation panel |
| Switch Type | Momentary Push Button (Normally Open or Changeover Contact) |
| Operating Mechanism | Manual push-button activation |
| Housing Material | Flame-retardant ABS plastic |
| Protection Cover | Red protective cap or flip cover (to prevent accidental activation) |
| Electrical Rating | DC 24V, 5A (resistive load) |
| Certification | ISO 9001, CCC, ECE R106 (Bus Safety Regulations) |
| Mounting Type | Panel mount (snap-in or screw-fixed) |
| Wire Connection | Terminal type – Faston 6.3mm (0.25") or screw terminal |
| Ambient Temperature | -40°C to +85°C (-40°F to +185°F) |
| Ingress Protection | IP65 (Dust tight & protected against low-pressure water jets) |
| Parameter | Specification |
|---|---|
| Voltage Rating | DC 24V (standard for commercial vehicles) |
| Current Rating | 5A maximum resistive load |
| Contact Resistance | ≤ 50 mΩ |
| Insulation Resistance | ≥ 100 MΩ at 500V DC |
| Dielectric Strength | 1500V AC for 1 minute (no breakdown) |
| Mechanical Life | ≥ 50,000 operations |
| Electrical Life | ≥ 10,000 cycles at full load |
| Actuation Force | 2–5 N (smooth but deliberate press required) |
| Response Time | < 0.1 seconds |
| Signal Output Type | Dry contact / switch closure signal |
| Compatibility Interface | Connects to pneumatic solenoid valve control circuit |
| Color | Red button with yellow or black surround |
