Original Factory Bus Parts New Central Control Box Made of Plastic for Kinglong Zhongtong Yutong Bus Parts Higer Golden Dragon Ankai

Original Factory Bus Parts New Central Control Box Made of Plastic for Kinglong Zhongtong Yutong Bus Parts Higer Golden Dragon Ankai

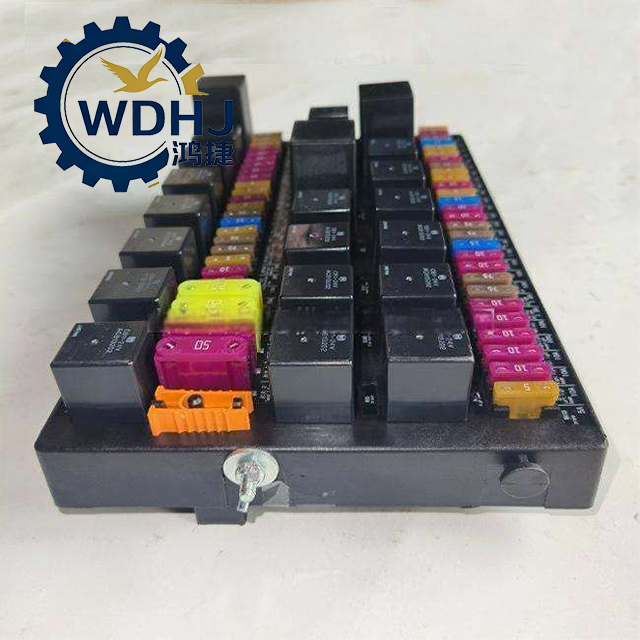

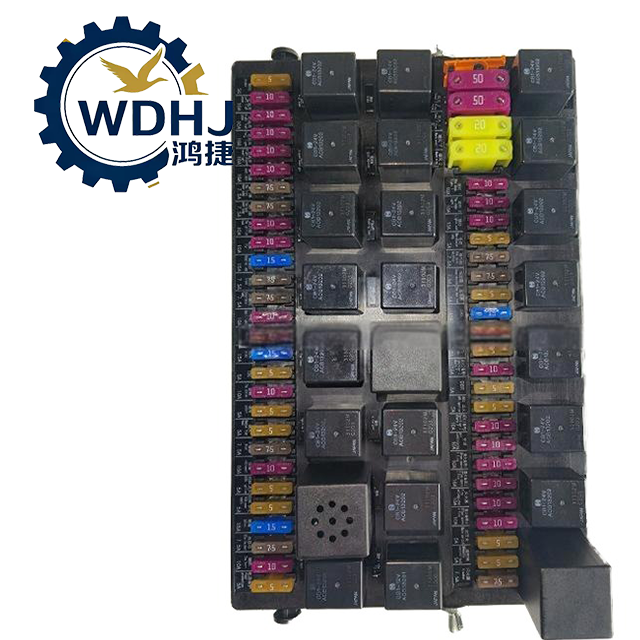

The Central Control Box (CCB) is a critical electrical management and distribution unit used primarily in large commercial vehicles, especially Chinese-made buses such as Yutong, King Long, Higer, Zhongtong, and Golden Dragon. It serves as the central hub for managing multiple electrical circuits—including lighting systems, door controls, air conditioning, wipers, instrument clusters, and auxiliary power networks.

Designed to replace traditional fuse-and-relay panels, the modern Central Control Box integrates advanced electronic protection, relay switching, signal processing, and sometimes CAN bus communication into a single compact module. This enhances system reliability, reduces wiring complexity, and improves fault diagnosis capabilities. The CCB ensures safe and efficient power distribution while protecting sensitive components from overloads, short circuits, and voltage spikes.

Quantity:
Availability:





Inquire Add to Basket

Brand:
Yutong Bus Parts

Product Description

Attribute	Description
Product Name	Central Control Box (CCB) / Main Electrical Control Module
Primary Application	Large Passenger Buses, Coaches, Electric Buses
Function	Power distribution, circuit protection, relay control, signal integration
Installation Location	Driver’s side dashboard compartment or engine compartment junction area
Housing Material	Flame-retardant ABS/PC plastic with sealed enclosure
Protection Rating	IP65 (Dust tight & protected against low-pressure water jets)
Mounting Type	Screw-fixed or bracket-mounted
Connector Type	Multi-pin automotive connectors (e.g., AMP Superseal, DEUTSCH, JST types)
Number of Circuits	Typically 12–30+ depending on model and configuration
Integrated Components	Fuses, relays, auto-reset breakers, diodes, control ICs
Communication Interface	Optional CAN 2.0B (J1939/ISO 11898) for diagnostics and ECU integration
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Compliance Standards	ISO 7637-2, ISO 16750, GB/T 28046, CCC, ROHS

Parameter	Specification
System Voltage	24V DC (standard), compatible with 12V systems via adaptation
Maximum Load Capacity	Up to 300A total (distributed across circuits)
Individual Circuit Ratings	5A, 10A, 15A, 20A, 30A (fused or breaker-protected)
Relay Outputs	4–10 integrated relays (for lights, horn, AC, etc.)
Auto-Reset Functions	Yes – for certain circuits (e.g., lighting, wipers)
Diagnostic Capability	LED indicators or CAN-based DTC reporting
Short-Circuit Protection	Fast-acting fuses or electronic cut-off
Overvoltage Protection	Built-in transient suppressors (TVS diodes)
Vibration Resistance	Meets ISO 16750-3 Class C
Insulation Resistance	≥ 100 MΩ at 500V DC
Dielectric Strength	1500V AC for 1 minute (between isolated sections)
Average MTBF	> 100,000 hours
