280750129
Yutong Bus Parts
| Attribute | Description |
|---|---|

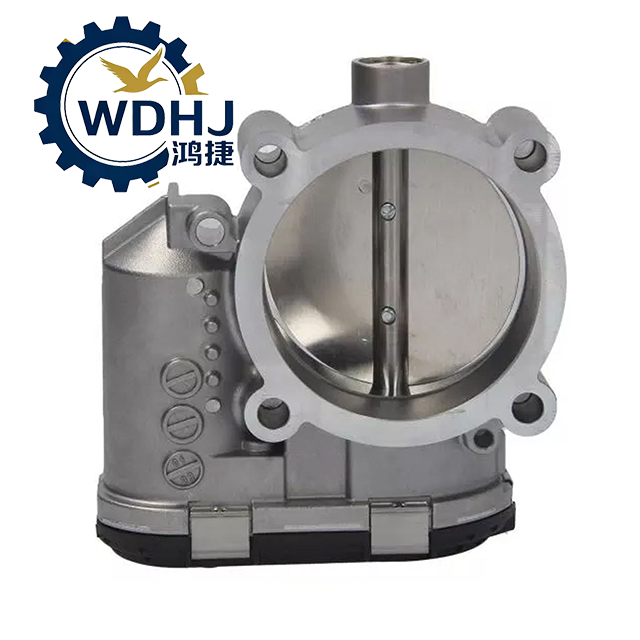

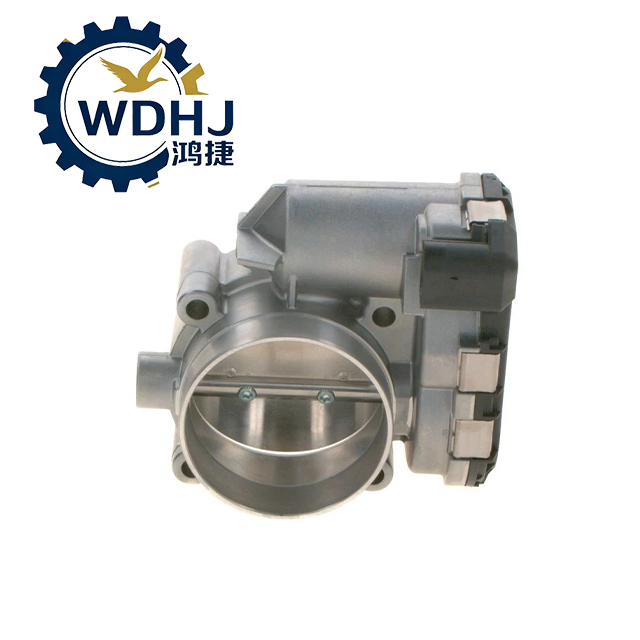

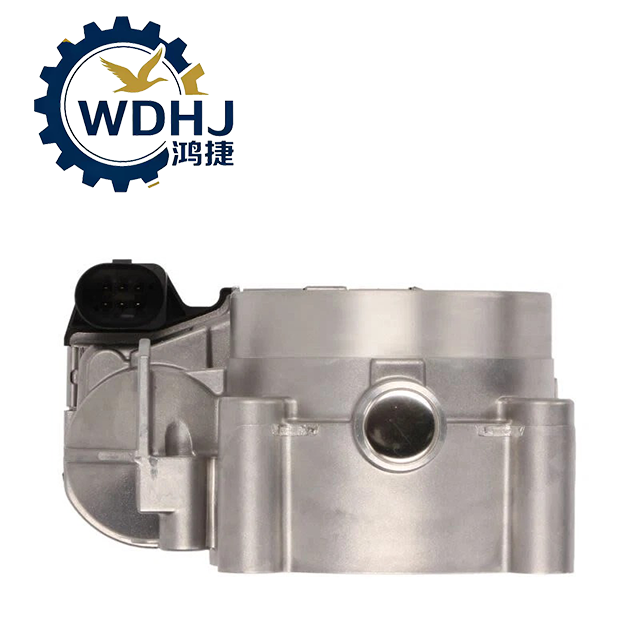

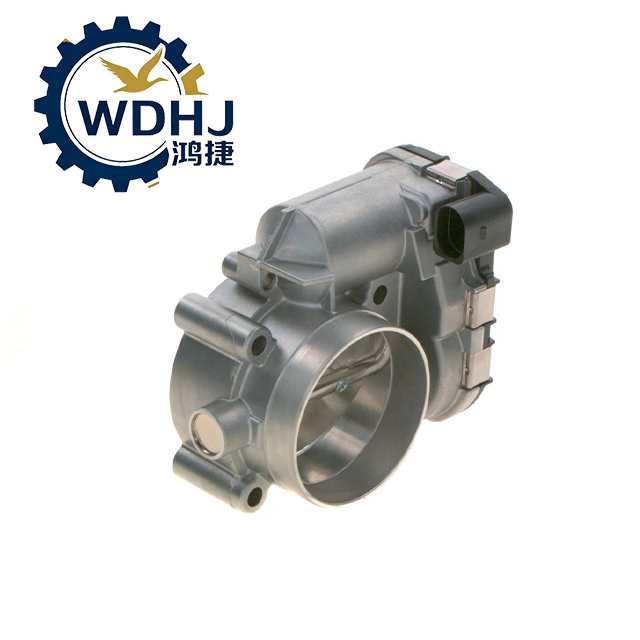

| Product Name | Electronic Throttle Body Assembly |
| Part Number | 0 280 750 129 / BOSCH 0280750129 |
| Manufacturer | BOSCH (Robert Bosch GmbH) |
| Application Type | Natural Gas (CNG/LNG) Heavy-Duty Engines |
| Primary Fitment Engines | MAN D20, D28 Series; Iveco Cursor Gas Engines |
| Vehicle Compatibility | MAN Lion's City, Neoplan Coaches, Yutong, SINOTRUK – High-End NG Models |
| Control System | Drive-by-Wire (Electronically Controlled via ECU) |
| Actuation Mechanism | Integrated DC Motor with Precision Butterfly Valve |
| Sensor Configuration | Dual Redundant Position Sensors (for fault tolerance) |
| Voltage Rating | 24V DC |
| Connector Type | 6-pin or 8-pin Industrial Sealed Plug (OEM-specific version dependent) |
| Compliance Standards | ISO 15151, ISO 7637-2 (EMC & Electrical Durability), OBD-II/PED Regulations |
| Parameter | Value / Description |
|---|---|
| Operating Voltage | 24V DC (nominal), compatible with heavy-duty vehicle electrical systems |
| Control Principle | ECU-driven PWM signal to internal motor for precise valve angle control |
| Valve Diameter | ~80 mm – 90 mm (depending on intake manifold design) |
| Response Time | < 100 ms (full open/close cycle) |
| Material – Housing | Die-Cast Aluminum Alloy (high strength, heat dissipation) |
| Material – Sensor Cover | High-Temperature Engineering Plastic |
| Sensor Type | Dual Potentiometer (Redundant Signal Output: e.g., 0.5V–4.5V range) |
| Signal Output | Two independent analog voltage signals for ECU cross-checking |
| Protection Class | IP67 (dust-tight and protected against temporary immersion) |
| Operating Temperature Range | -40°C to +125°C (ambient); withstands under-hood thermal cycling |
| Expected Service Life | > 10 million cycles or 8 years under normal operation |
| Flow Characteristics | Optimized for laminar airflow with minimal turbulence at partial opening |
