C03054-16
Yutong Bus Parts
| Attribute | Description |
|---|---|

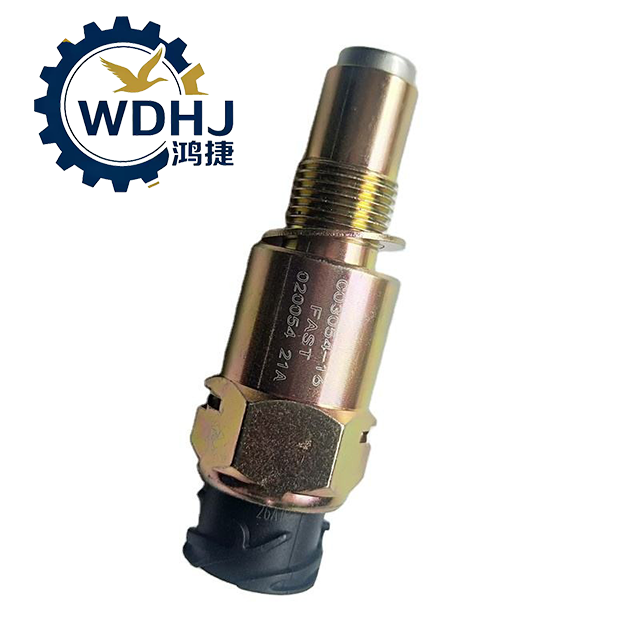

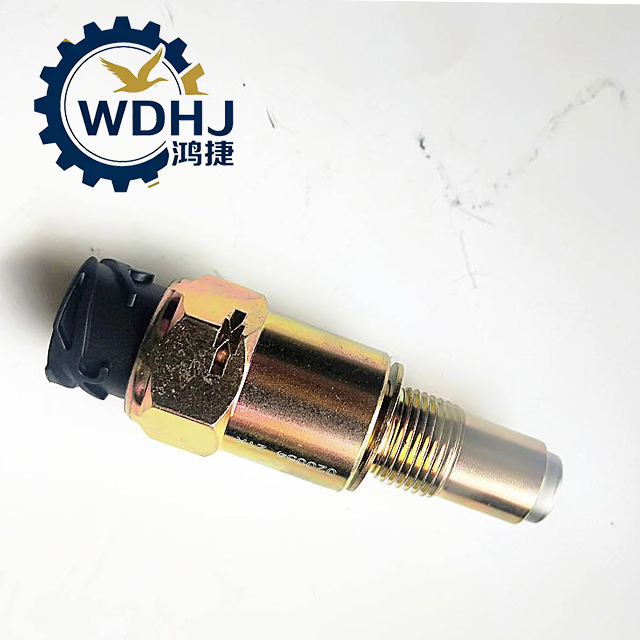

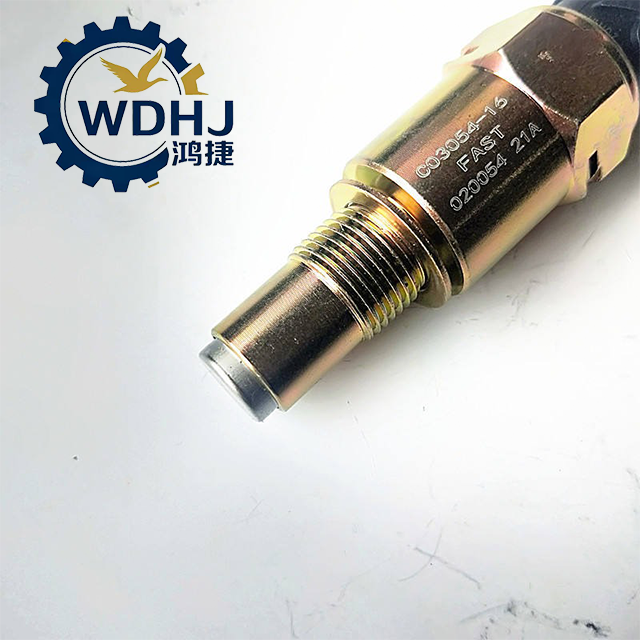

| Product Name | Vehicle Speed Sensor (VSS) / Transmission Output Speed Sensor |
| Model Number | C03054-16 |
| Alternative OE Number | 4130000592 |
| Application Type | Heavy-Duty Trucks, Coaches, Mining Vehicles |
| Mounting Location | Transmission Output Shaft Housing (Tail Housing) |
| Signal Output Type | Digital Pulse Signal (Hall Effect or Variable Reluctance – depending on version) |
| Connector Type | 4-Pin Blade-Type Plug (Standardized Industrial Design) |
| Primary Fitment Brands | Shaanqi (X3000/F2000), Dongfeng, FAW Jiefang, Sinotruk, Xugong, LGMG |
| Compatible Transmissions | Fastran (FAST) Series Manual & AMT Gearboxes |
| Operating Principle | Magnetic Induction / Hall Effect Sensing |
| Environmental Resistance | Dust-resistant and splash-proof for under-chassis applications |
| Parameter | Value / Description |
|---|---|
| Part Number | C03054-16 |
| OE Replacement No. | 4130000592 |
| Connector Configuration | 4-Pin (Blade Terminals), Polarized Housing |
| Sensing Technology | Hall Effect or VR (Variable Reluctance) — verify per batch/spec |
| Output Signal | Square wave pulse train (frequency proportional to shaft speed) |
| Detection Range | 0 – 10,000 pulses per minute (supports low-speed accuracy) |
| Operating Voltage | Typically 5V–12V DC reference (powered by ECU or cluster) |
| Material – Body | High-Strength Metal Core + Reinforced Engineering Plastic Outer Shell |
| Weight | Approx. 300 g |
| Protection Rating | IP54 (Dust protected, splash resistant) |
| Operating Temperature Range | -40°C to +125°C |
| Vibration & Shock Resistance | Meets ISO 16750-3 standards |
| Expected Service Life | > 8 years or 600,000 km under normal operating conditions |
