| Quantity: | |
|---|---|
3735020-C0100
Dongfeng
| Attribute | Specification |
|---|---|

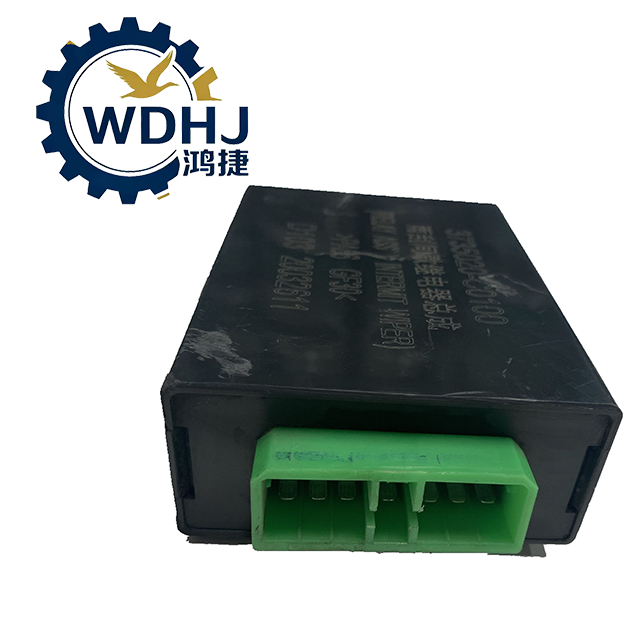

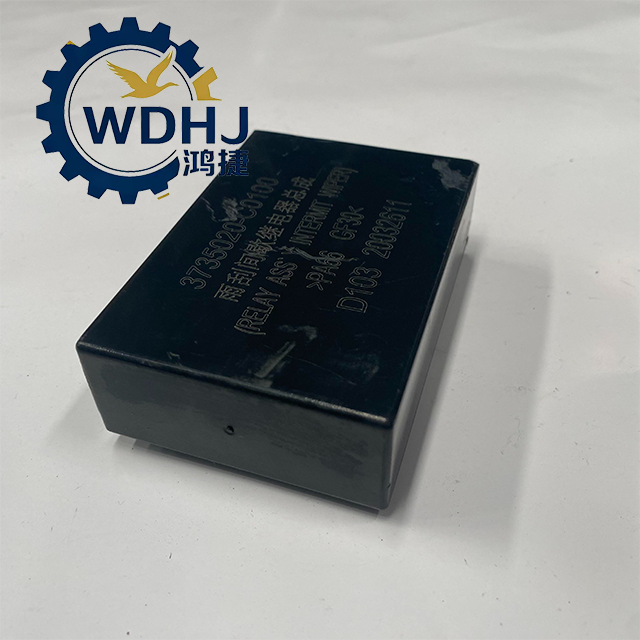

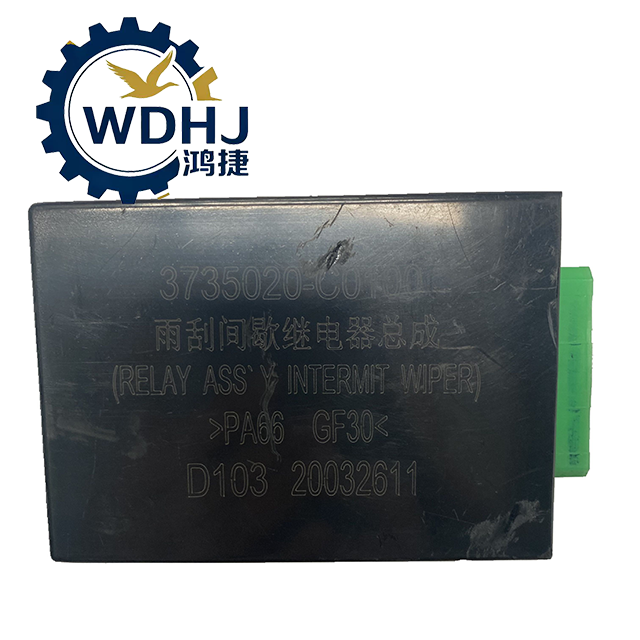

| Product Name | Wiper Intermittent Relay / Wiper Control Module |
| Manufacturer | Dongfeng Commercial Vehicles Co., Ltd. (OEM) |
| Primary Part Number | 3735020-C0100 |
| Alternative Names | Intermittent Wiper Relay, Wiper Timer Unit, Windshield Wiper Controller |
| Voltage Rating | 24V DC (standard for Chinese heavy-duty trucks) |
| Connector Type | 13-pin rectangular plug (male/female configuration) |
| Internal Structure | Hybrid IC + Electromagnetic Relay combination |
| Housing Material | Flame-retardant engineering plastic (UL94-V0 rated) |
| Mounting Location | Inside cabin — typically installed in central fuse/relay box near passenger side |
| Functionality | Controls intermittent sweep, auto-reset (parking), and wash/wipe interlock |
| Parameter | Value / Detail |
|---|---|
| Operating Voltage | 24V DC nominal (range: 18–32V) |
| Pin Configuration | 13-Pin standard layout (specific pinout defined by Dongfeng) |
| Intermittent Cycle Range | Adjustable interval of ~4–6 seconds between sweeps (fixed logic) |
| Park Function | Ensures wipers return to bottom dead center after switch-off |
| Washer Interlock | Automatically triggers 2–3 wipes when washer fluid is activated |
| Control Logic | Electronic timer circuit with relay output stages |
| Environmental Resistance | |
| - Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| - Vibration Compliance | Meets QC/T 417 and GB/T 28046 standards |
| Electrical Life | > 500,000 cycles (switching endurance) |
| Insulation Resistance | ≥ 100 MΩ at 500V DC |
| Weight | Approx. 120–180 g |
