C4936133
Dongfeng
| Attribute | Specification |
|---|---|
| Part Number | C4936133 / 4936133 |

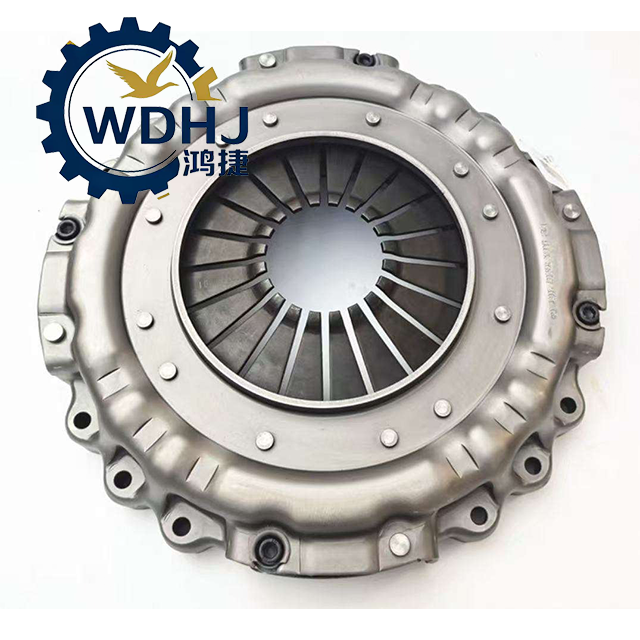

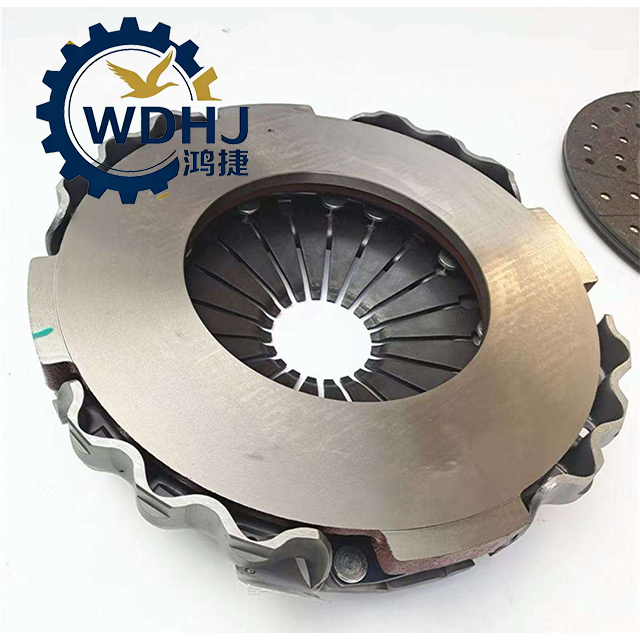

| Product Name | Clutch Pressure Plate Assembly / Clutch Cover |
| Type | Diaphragm Spring (Finger-Type) |
| Nominal Diameter | Φ395 mm (standard for matching clutch disc) |
| Application Position | Mounted between engine flywheel and clutch disc |
| Vehicle Type | Medium & Heavy-Duty Trucks, Delivery Vehicles, Construction Equipment |
| Engine Compatibility | - Cummins ISDe: ISDe180, ISDe210, ISDe245 (4.5L/6.7L) - ISB/B Series: 4BT, 6BT, 6BTAA |
| OEM Vehicle Fitment | Dongfeng Tianjin (KR), Tianlong (KL), Foton Auman, JAC, XCMG, LiuGong |
| Material – Pressure Plate Body | High-Strength Stamped Steel |
| Friction Surface Material | Heat-Resistant Gray Cast Iron or Alloyed Cast Iron |
| Spring Type | High-Cycle Diaphragm Spring (Tempered Spring Steel) |
| Performance Standard | Meets DCEC OE specifications; compliant with QC/T 90–2013 |
| Parameter | Specification |
|---|---|
| Outer Diameter (OD) | 395 mm |
| Clamping Force | ≥ 18,000 N (ensures no slip at rated torque) |
| Torque Capacity | Supports up to ~850 N·m engine output |
| Spring Fatigue Life | ≥ 500,000 actuation cycles |
| Operating Temperature Range | -40°C to +400°C (surface temp during engagement) |
| Weight (Approx.) | 9.0 kg – 10.5 kg |
| Number of Mounting Holes | 3–4 holes (M8 or M10 threaded) |
| Surface Flatness Tolerance | ≤ 0.1 mm deviation |
| Balanced Grade | G40 (ISO 1940 dynamic balance standard) |
| Compliance Standards | GB/T 5727, ISO 7452, QC/T 90–2013 |
