| Quantity: | |
|---|---|
8201015-C6103
Dongfeng
| Attribute | Description |
|---|---|
| Part Number (OE) | 8201015-C6103 |

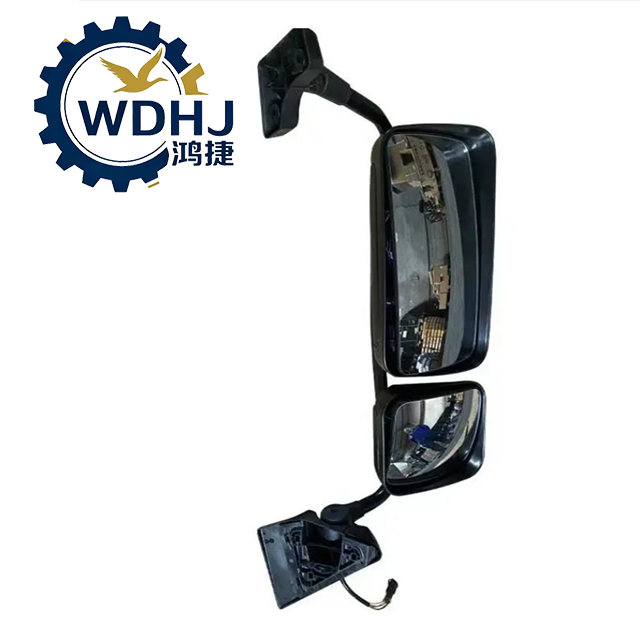

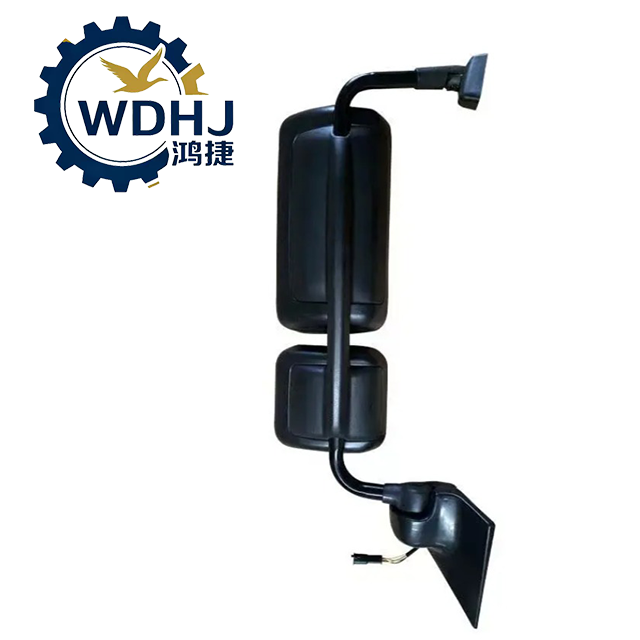

| Product Name | Right Exterior Door Mirror Assembly (with Mounting Bracket) |
| Common Names | Passenger-Side Power Mirror, Electric Heated Side View Mirror |
| Application Position | Right front door of cab (passenger side) |
| Vehicle Brand | Dongfeng Commercial Vehicle (DFCV) |
| Compatible Models | Dongfeng Kinland KX, GX Series, High-End KL Tractors |
| Chassis Compatibility | DFH4180, DFH4250 Long-Haul Twin-Bed Cab Chassis |
| Mirror Functionality | Electric 4-Way Adjustment + Heating Element |
| Voltage Rating | 24V DC (standard for Chinese heavy trucks) |
| Housing Material | UV-stabilized ABS or SMC composite (high impact strength) |
| Mirror Type | Dual-panel: Primary convex mirror + wide-angle blind-spot sub-mirror |
| Surface Finish | Matte Black / Glossy Black (OEM standard finish) |
| Parameter | Specification |
|---|---|
| Adjustment Type | Motorized four-direction control (up/down/left/right) |
| Heating System | Embedded tungsten or carbon-film heating wire; defrosts within 3–5 minutes |
| Power Consumption | ~15–20W per mirror |
| Operating Temperature Range | -40°C to +85°C |
| Water Resistance | IP67 rated connector; sealed housing prevents moisture ingress |
| Field of View (Primary) | ≥50° horizontal viewing angle |
| Blind Spot Coverage | Sub-mirror covers rear tire and adjacent lane area |
| Vibration Resistance | Tested up to 500+ hours on vibration bench (ISO 16750-3) |
| Aerodynamic Drag Reduction | Streamlined shape reduces wind noise by up to 15% vs. flat mirrors |
| Service Life | ≥500,000 actuation cycles; heating life >3,000 on/off cycles |
