3401000E22CH
Foton Auman
| Parameter | Specification |
|---|---|

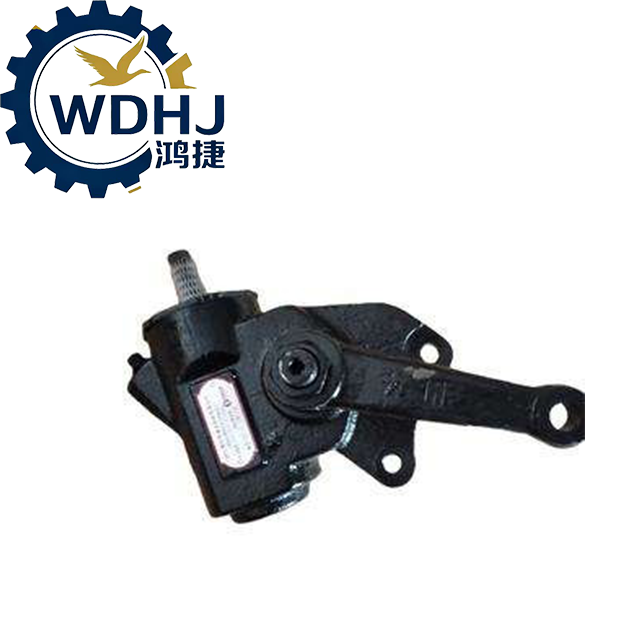

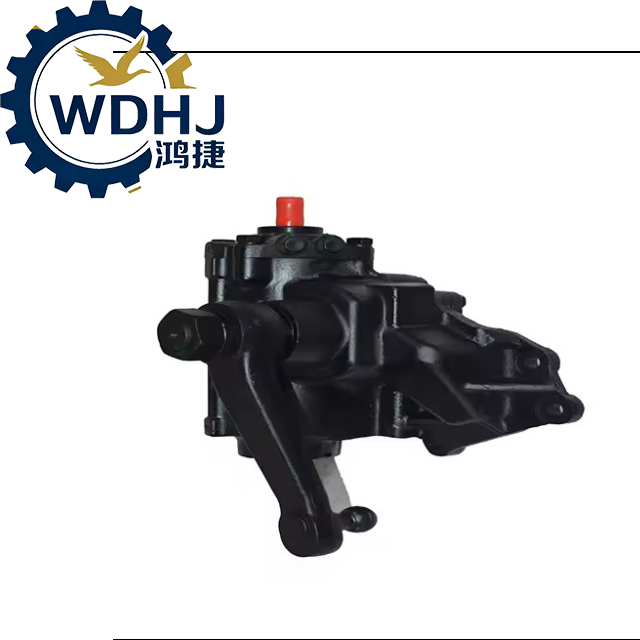

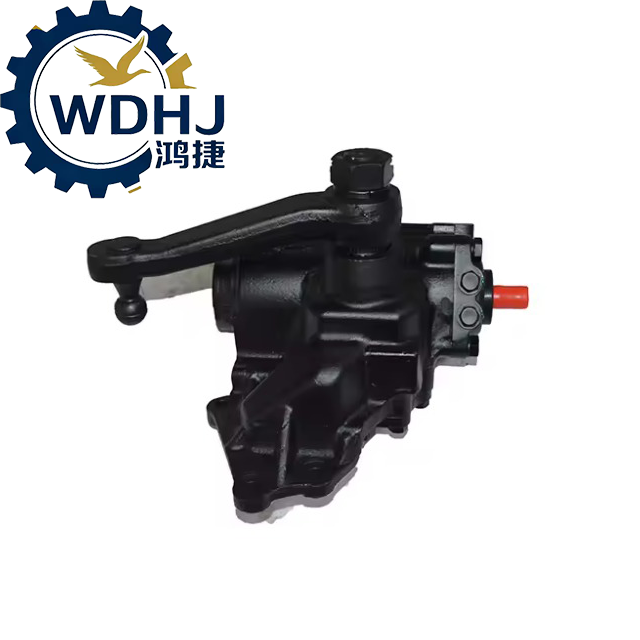

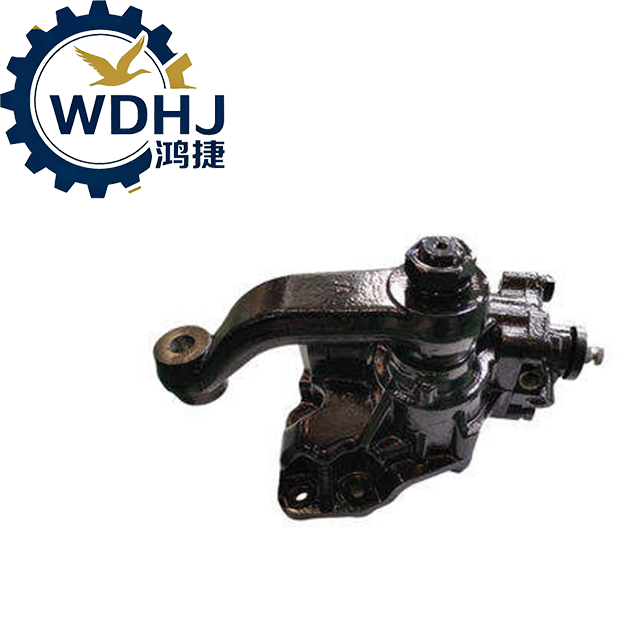

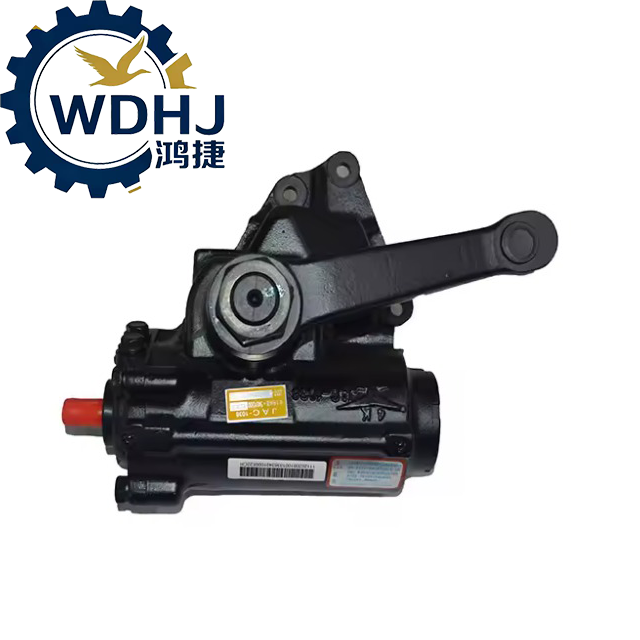

| Part Name | Power Steering Gearbox Assembly / Steering Gear Unit |
| OE Number | 3401000E22CH |
| Type | Recirculating Ball with Integral Piston (Hydraulic Boost) |
| Drive Configuration | Left-Hand Drive (LHD) |
| Function | Converts rotational input from steering column into lateral motion at pitman arm to turn front wheels |
| Assist Type | Hydraulic (powered by engine-driven pump) |
| Input Shaft Type | Splined shaft connected to steering column |
| Output Connection | Pitman arm linkage (via splined output shaft) |
| Material | Cast iron housing, high-strength steel internal gears and piston |
| Maximum Front Axle Load | 3,500 kg (7,716 lbs) |
| Working Pressure | 15 MPa (~2,175 psi) — typical operating range |
| Steering Turns (Lock-to-Lock) | 5.8 revolutions (r) |
| Dimensions | OEM standard size — matches original installation footprint |
| Weight | ~12–16 kg (26–35 lbs) |
| Condition | Brand New (OEM Quality) |
| Quality Certification | Meets OEM standards; ISO 9001 compliant |
| Warranty | Typically 12 months from date of purchase |
|
|
|
