WG9925590270 Engine Front Support Use for SINOTRUK HOWO HOHAN FAW SHACMAN DONGFENG BEIBEN FOTON Spare Parts Engine Front Mounting Cushion / Front Engine Mount

WG9925590270 Engine Front Support Use for SINOTRUK HOWO HOHAN FAW SHACMAN DONGFENG BEIBEN FOTON Spare Parts Engine Front Mounting Cushion / Front Engine Mount

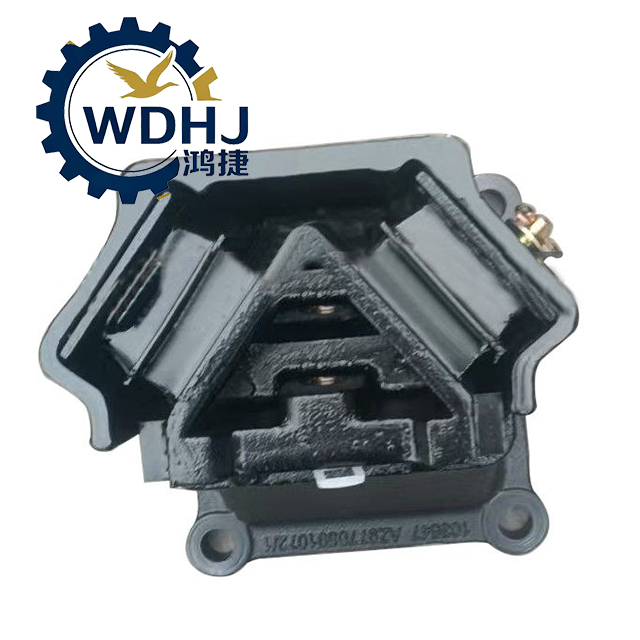

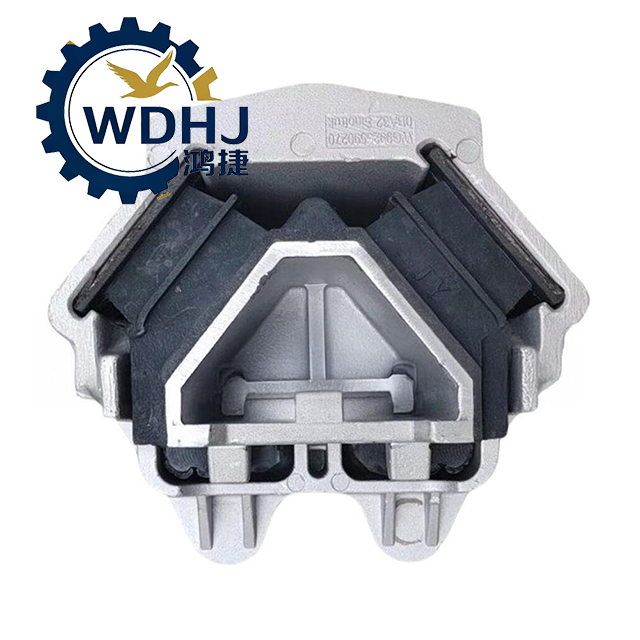

The WG9925590270 Front Engine Mounting Cushion Assembly, officially known as the Engine Front Rubber Bearing or Front Motor Mount, is a high-performance vibration-isolation component designed for SINOTRUK commercial vehicles built on MAN (German MAN) technology platforms, particularly the premium SITRAK C7H, G7, G5, and MAX series.

This mounting pad connects the front end of the engine to the chassis frame, serving dual functions:

Structural support for the engine’s front weight
Dynamic damping of engine vibrations and torque shocks
Unlike traditional steel-bodied mounts, this version features an aluminum housing combined with high-damping natural rubber, offering superior corrosion resistance, lightweight performance, and enhanced NVH (Noise, Vibration, Harshness) control. It plays a critical role in improving driver comfort, reducing cabin noise, and protecting drivetrain components from misalignment damage during operation.

Quantity:
Availability:





Inquire Add to Basket

Model:
WG9925590270
Brand:
Shacman Sinotruk HOWO FAW Foton Auman Dongfeng

Product Description

Attribute	Description
Product Name	Front Engine Mounting Cushion / Aluminum Front Rubber Bearing
Common Names	Engine Front Mount, Motor Mount, Front Engine Support Pad
Function	Supports engine front load; isolates vibration and absorbs dynamic impact
Position	Installed at left/right front engine mounting points
Design Type	Composite rubber-aluminum bonded structure with integrated bolt hole
Application Type	High-End Heavy-Duty Trucks, Long-Haul Tractors, Mining & Export Models

Parameter	Specification
OEM Part Number	WG9925590270
Alternative Numbers
• WG9925590270-1 (rubber insert/sub-component)
• WG9925590210 (related support part)
• 81.96210.0553 (MAN original reference number – for joint production models)
Dimensions (L × W × H)	Approx. 260 mm × 60 mm × 35 mm
Weight per Unit	0.45 kg – 0.52 kg (ultra-lightweight design)
Housing Material	High-strength die-cast aluminum alloy (anti-corrosive, rust-free)
Core Material	High-damping natural rubber compound
Manufacturing Process	High-temperature vulcanization for permanent rubber-to-metal adhesion
Oil Resistance	Yes – but prolonged exposure causes swelling and degradation
Operating Temperature Range	-40°C to +120°C
Load Capacity	Supports 450–900 kg static load (engine front end)
Performance Features	Excellent NVH reduction, low settlement rate, salt-spray resistant, lightweight

Shacman Front Rubber Support Assembly (Engine Front Mounting) Parts Reference Table

Part Number	Part Name	Compatible Vehicle Models	Specification
STR / F2000 / F3000 / Aolong Series
DZ9114593001	Engine Front Rubber Support Cushion	F2000, F3000, Aolong, New M3000 (WP10)	STR Type, Rubber+Steel Composite, 780mm Frame
168000590095	Engine Front Mounting Cushion	F2000, F3000, STR Series	Universal STR Type, Rubber Vibration Isolator
DZ9114598319	Engine Right Front Mounting	F3000	Rubber+Steel, Right Side, Bolt-on Type
DZ9114598320	Engine Left Front Mounting	F3000	Rubber+Steel, Left Side, Interchangeable with DZ95259590067
DZ95259590067	Engine Front Left Cushion / Buffer Block	F3000, M3000	Left Side Rubber Mount, Anti-Vibration
DZ95259590077	Left Front Shock Pad (Improved)	F3000 (300-460HP)	Improved Design, Left Side, Rubber+Steel
DZ95259590078	Right Front Shock Pad (Improved)	F3000 (300-460HP)	Improved Design, Right Side, Rubber+Steel
X3000 / X5000 / M3000S Series
DZ95259590197	Engine Left Front Bracket Mount	X3000	Left Side, Cast Steel+Rubber, Heavy Duty
DZ95259590198	Engine Right Front Bracket Mount	X3000, X5000, M3000S	Right Side, Cast Steel+Rubber, Heavy Duty
DZ95259590051	Left Bracket Support Assembly	X3000	Left Side Support Bracket with Rubber
DZ95259590052	Right Bracket Support Assembly	X3000	Right Side Support Bracket with Rubber
DZ95259590167	Left Front Engine Mount	X3000	Left Side Rubber Mounting Pad
DZ95259590076	Engine Right Front Mounting	M3000	Right Side, Rubber+Steel Construction
DZ96259590113	M3000 Left Front Shock Pad (Improved)	New M3000	Improved Design, Left Side
DZ95259590115	M3000 Left Front Shock Pad (Improved)	New M3000	Improved Design, Left Side
X5000 / X6000 / New Generation Series
DZ97259590131	Engine Left Front Mount (Tipper)	X5000 Dump Truck	Left Side, with Replaceable Rubber Core
DZ97259590132	Engine Right Front Mount (Tipper)	X5000 Dump Truck	Right Side, with Replaceable Rubber Core
DZ97259590207	Engine Left Front Damping Pad	X5000, New M3000	Left Side Vibration Damping Mount
DZ9X259593000	Wedge-type Engine Mount	X5000, X6000	Wedge Shape, Rubber+Steel, New Generation
DZ9X259593002	Engine Damping Pad Assembly	X5000, X6000	Vibration Isolation Pad, Longxiang Type
DZ9X259593003	Engine Damping Pad	X6000	X6000 Specific, Rubber Vibration Mount
DZ9X259596002	Mounting Base Plate	X5000, X6000	Steel Base Plate for Wedge Mount
