DZ97259680155
Shacman Sinotruk HOWO FAW Dongfeng
| Attribute | Description |
|---|---|

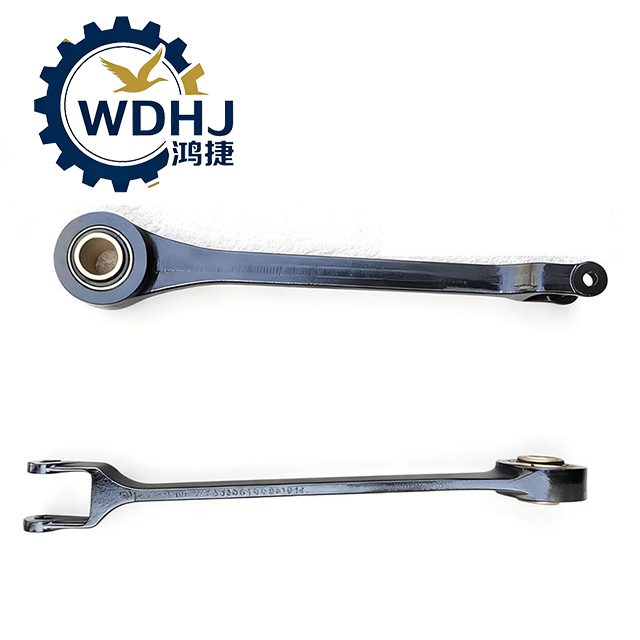

| Part Name | Front Stabilizer Linkage Assembly / Stabilizer End Link |
| OEM Part Number | DZ97259680155 |
| Application Position | Front Axle – Connects Stabilizer Bar to Frame Mount |
| Vehicle Compatibility | Shacman Delong X3000, X6000, F3000, M3000, H3000 Series (all variants) |
| Function | Transmits stabilizer bar torque; controls lateral body roll |
| Assembly Type | Complete rod assembly with dual rubber-bushed eyes |
| Mounting Method | Secured via U-bolts or bracket clamps to frame and stabilizer bar |
| Design Style | Straight steel rod with forged end loops and internal rubber bushings |
| Replacement Type | Direct-fit OE replacement; no modification required |
| Parameter | Specification |
|---|---|
| Main Material | High-strength alloy steel (forged construction) |
| Rod Diameter | Typically Ø20–25mm (exact size varies by model year) |
| Overall Length | Approx. 280–320 mm (center-to-center of eyelets) |
| End Eye Configuration | Dual loop ends with precision-molded rubber bushings |
| Bushings Material | Vulcanized natural rubber (NR) with inner metal sleeves |
| Rubber Hardness (Shore A) | 70–80° ±5° |
| Dynamic Load Capacity | Withstands >5,000 N cyclic tensile/compressive loads |
| Fatigue Life | Designed for over 500,000 cycles under standard test conditions |
| Corrosion Protection | Surface-coated or galvanized for rust resistance |
| Operating Temperature Range | -40°C to +90°C |
| Weight | Approximately 2.8 kg – 3.5 kg |
SHACMAN Full Series Heavy Truck Front Stabilizer Link Assembly
| OEM Part Number | Part Full Name | Applicable SHACMAN Truck Models | Specification & Technical Feature |
|---|---|---|---|
| DZ97259680104 | Front Stabilizer Link Assembly (With Rubber Bushing) | Delong X3000 / New M3000 / M3000S Tractor Truck | Overall length 600mm, forged steel body, integrated rubber bushing, 10.9 grade mounting bolt, highway transport standard version |

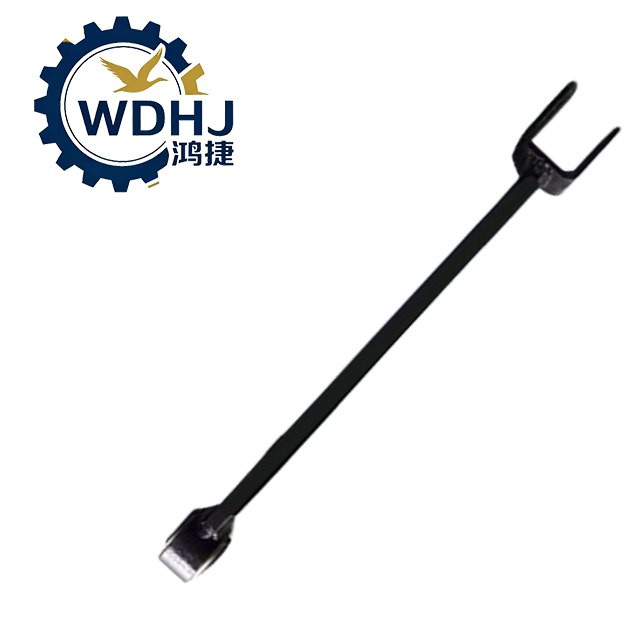

| DZ9X259680044 | Universal Front Stabilizer Link Assembly | F2000 / F3000 / L3000 / H3000 / X5000 / X6000 All Series | General front suspension stabilizer lug, double-hole connecting end, anti-rust black coatingMade-in-Ch... |
| SZ965000735 | Front Stabilizer Hanger Link Assembly | Delong F3000 / Aolong Cargo Truck | Thickened cast steel, mining dump truck reinforced model, matched with 7.5t front axle |
| DZ9X259680065 | X6000 National VI Front Stabilizer Connecting Rod | Delong X6000 New Generation 6×4 Tractor | Built-in lubrication channel, wear-resistant bushing, lightweight hollow design |
| DZ95319680100 | Short Type Front Stabilizer Link | Delong L3000 Light-duty Logistics Truck | Total length 450mm, small front axle matching, light load suspension dedicated |
| SZ970000416 | Front Stabilizer Link (Left & Right Pair Set) | X3000 / X5000 Flat-top Cab Truck | Symmetric left-right universal, complete with nuts and washers, direct OEM replacement |
| DZ91189680021 | Heavy Load Front Stabilizer Connecting Arm | New M3000 8×4 Mining Dump Truck | Thickened rod body, enhanced shock resistance, double-layer rubber bushing structure |
