SINOTRUCK FAW FOTON WG9725931200 HOWO N New Rear Tow Hook Truck Replacement Part From Shandong

SINOTRUCK FAW FOTON WG9725931200 HOWO N New Rear Tow Hook Truck Replacement Part From Shandong

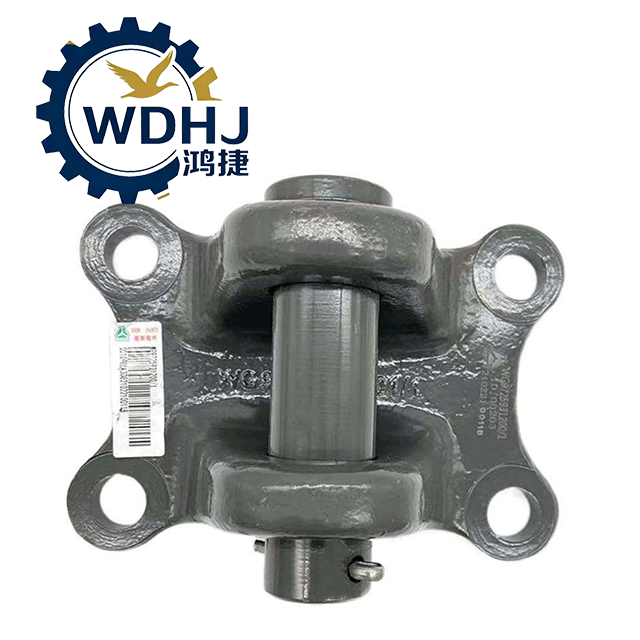

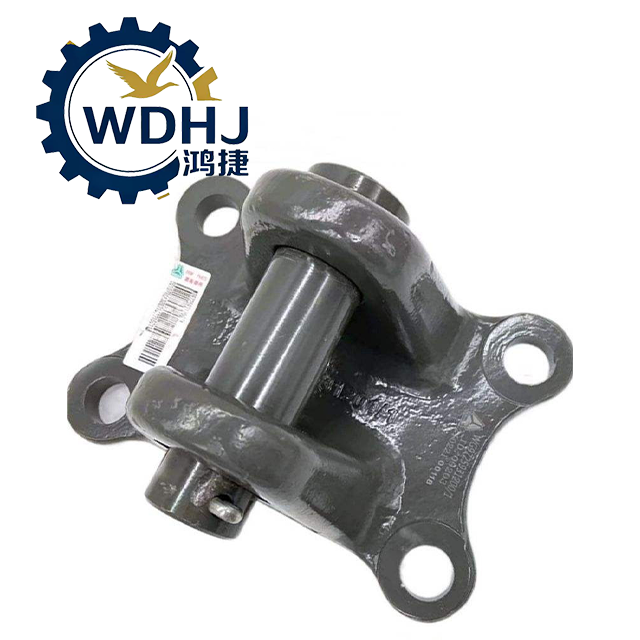

The WG9725931200 Rear Tow Hook for TGA Frame is a high-strength structural towing component designed specifically for SINOTRUK heavy-duty commercial vehicles built on the TGA platform, which is based on German MAN technology. Commonly referred to as the Rear Recovery Hook or Heavy-Duty Tow Eye, this part is mounted at the rear end of the chassis frame and serves as a critical connection point for vehicle recovery, emergency towing, and roadside rescue operations.

Engineered to withstand extreme tensile forces during dynamic pulling events, this forged or cast steel hook ensures reliable performance under harsh conditions. It is precision-designed to match the TGA-series frame rails and cross members, ensuring optimal load transfer without compromising ground clearance or departure angle.

Used primarily on high-end models such as SITRAK C7H/G7, HOWO T7H/T5G, and MAX series, it reflects SINOTRUK’s integration of European engineering standards into Chinese heavy truck manufacturing.

Quantity:
Availability:





Inquire Add to Basket

Model:
WG9725931200
Brand:
Sinotruk HOWO FAW Foton Auman

Product Description

Attribute	Description
Product Name	Rear Tow Hook for TGA Frame (Heavy-Duty Type)
Common Names	Recovery Hook, Tow Eye, Rear Towing Bracket, Rescue Hook
Function	Provides secure attachment point for towing cables, chains, or hydraulic rams
Position	Mounted on rear cross member of TGA-type chassis frame
Design Type	Forged/cast alloy steel with U-shaped hook profile
Application Type	Long-Haul Trucks, Tractors, Dumpers, Off-Road Recovery Vehicles

Parameter	Specification
OEM Part Number	WG9725931200
Material	High-strength alloy cast steel (excellent tensile strength and impact toughness)
Weight	3.8 kg – 4.5 kg (depending on casting thickness)
Finish	Industrial phosphated surface + anti-rust paint coating (typically black)
Installation Bolts	M20×1.5 hex head bolts (e.g., ZQ151B2065TF6), typically 2–4 pcs
Locking Nuts	M20×1.5 heavy-duty self-locking nuts (e.g., ZQ361B20T13F6)
Torque Requirement	450–500 N·m (per M20 bolt; must use calibrated torque wrench)
Load Capacity	Designed for short-term dynamic recovery loads up to 15–20 tons (not for continuous towing)
Compliance Standards	Meets SINOTRUK OEM specifications; compatible with MAN-based TGA frame design
Weld-Free Design	Bolt-on installation — no welding required
