AZ9725521174
Shacman Sinotruk HOWO FAW Dongfeng Foton Auman
| Attribute | Description |
|---|---|

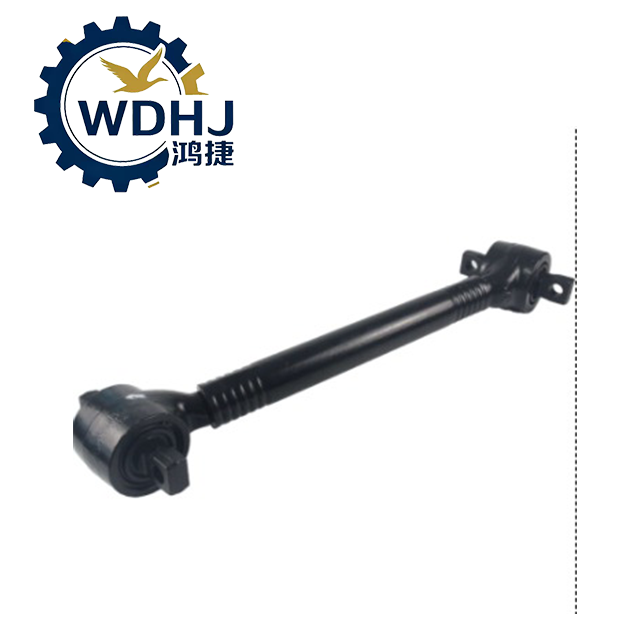

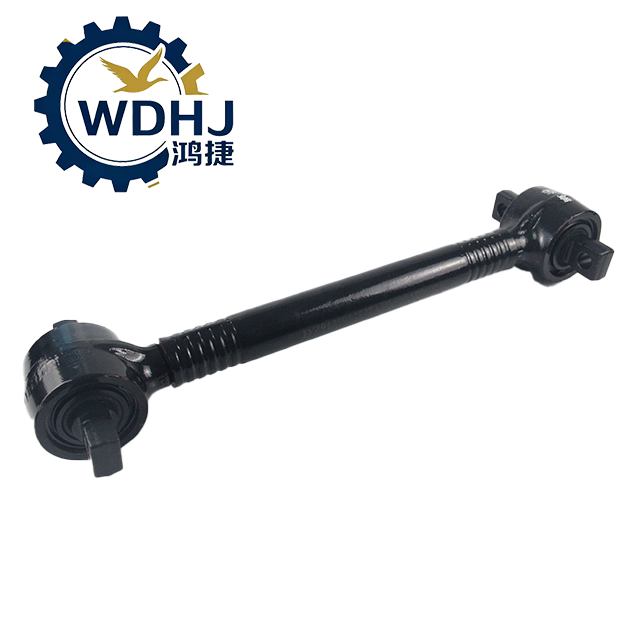

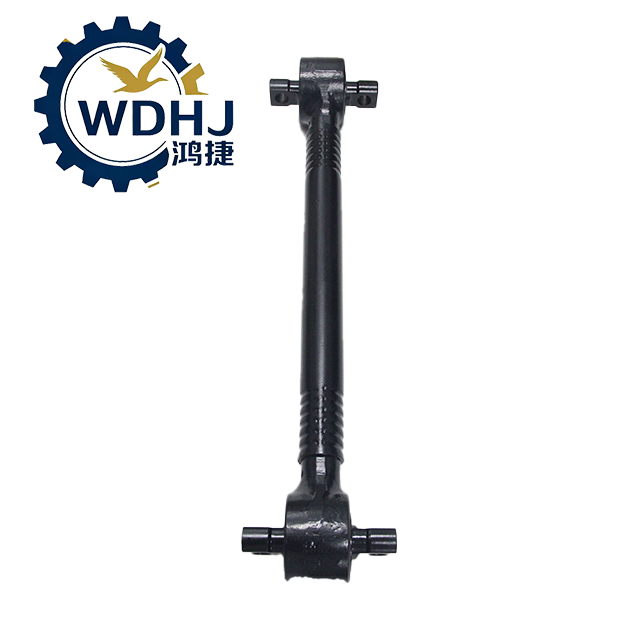

| Part Name | Lower Thrust Rod Assembly (Cast Straight Type) |
| OEM Part Number | AZ9725521174 |
| Brand | SINOTRUK (CNHTC) |
| Application | Rear Suspension Axle Positioning – Lower Link |
| Function | Controls longitudinal movement of rear axle; maintains alignment |
| Design Type | One-Piece Cast Alloy Steel Straight Rod |
| Material | High-Strength Alloy Cast Steel (QT-grade or equivalent) |
| Weight | 14.5 – 15.5 kg |
| Surface Treatment | Black Electrophoretic Coating (E-coat) for Corrosion Resistance |
| Mounting Position | Connects rear axle bracket to chassis frame (lower front/rear linkage) |
| Parameter | Value / Specification |
|---|---|
| OEM Number | AZ9725521174 |
| Overall Length | Varies by model (typically 600–800 mm) |
| Bolt Hole Diameter | φ25 mm (standard shackle pin size) |
| Ball Joint Size (Bushings) | 130 mm × 25 mm rubber bushing / spherical liner |
| Tube/Body Material | Alloy Cast Steel (one-piece casting) |
| Heat Treatment | Quenched & Tempered (enhances strength and fatigue life) |
| Tensile Strength | ≥ 700 MPa |
| Load Capacity | Designed for dynamic loads up to 80,000 N |
| Fatigue Life | Optimized for over 400,000 cycles |
| Operating Environment | -40°C to +85°C; resistant to dust, mud, oil, and vibration |
| Compliance Standards | Meets SINOTRUK OEM design and safety specifications |
Shacman Auto Heavy-Duty Truck Lower Torque Rod Specification Chart (Full Series)
| Part Number | Part Name | Applicable Models | Specification |
|---|---|---|---|
| DZ91259525275 | Lower Torque Rod Assembly | Delong F300, Old M3000, Aolong, Hande 469 Axle | Straight rod type, length 720mm, rubber bushings at both ends, universal for standard-load tractors and dump trucks |
| DZ95259525150 | Reinforced Lower Torque Rod Assembly | Delong F3000 heavy-duty muck dump trucks, mining standard-load models | Thickened pipe wall, extended wear-resistant bushing, heavy-duty reinforced version |
| DZ9114520275 | Lightweight Lower Torque Rod Assembly | New M3000, M3000S, X3000 Euro V standard-load models | Narrow-body lightweight short rod, length 685mm, dedicated for lightweight suspension |
| DZ97259526195 | X3000/X5000 Euro VI High-Horsepower Lower Torque Rod | Delong X3000, X5000 WP12/WP13 long-haul tractors, cold chain vehicles | High-torque widened bushing, compatible with Hande 485 lightweight rear axle |
| HD90009520036 | 7.5T Lightweight Axle Lower Torque Rod Assembly | M3000S, L3000 green logistics light-duty trucks | Compact short torque rod, dedicated for low-load urban distribution |
| HD90129520047 | 425 Wide-Body Mining Truck Heavy-Duty Lower Torque Rod | 35-ton wide-body mining dump trucks, construction site heavy-duty engineering vehicles | Thickened steel pipe, double dust-proof bushing, impact-resistant for mining use |
| DZ9L149520012 | X6000 Flagship Model Lower Torque Rod Assembly | Delong X6000 WP13 Euro VI diesel/gas flagship tractors | Integrated forged end, silent long-life wear-resistant version |
| BZ95259520008 | Xuande X6/X9 Lower Torque Rod Assembly | Shacman Xuande X6, X9 Yuchai short-haul muck trucks, urban engineering vehicles | Rectangular straight rod, compatible with Xuande dedicated suspension chassis |
| JZ93509520059 | Old Aolong F2000 Conventional Lower Torque Rod | Aolong F2000 WD615 two-valve old platform models | Conventional simple bushing structure, only for old vehicle maintenance replacement |
HOWO Full Series Lower Torque Rod Information Table
| Part Number | Part Name | Applicable Models | Specification |
|---|---|---|---|
| WG9725521275 | Lower Torque Rod Assembly | HOWO A7, Classic HOWO 371HP, Steyr AC16 Axle | Straight rod design, 720mm overall length, rubber bushings at both ends, universal for standard-load tractors and dump trucks |
| AZ9925520275 | Reinforced Lower Thrust Rod Assembly | HOWO heavy-duty muck dump trucks, construction standard-load mining models | Thickened high-strength steel pipe wall, heavy-duty wear-resistant bushing, reinforced structure for overload working conditions |
| WG9925521275 | Lower Torque Rod Assembly | HOWO T7H, HOWO TX, MAN MCY13 Axle, 430/540HP long-haul tractors | High-torque widened bushing, compatible with MAN MCY13 lightweight rear axle, standard fit for Euro V / Euro VI models |
| WG9325521275 | Lightweight Lower Torque Rod Assembly | HOWO T5G, Haohan J5G/J7G, MAN MCY11 Axle, urban logistics trucks | Compact short rod, 685mm length, dedicated for 7.5T–11T lightweight axle chassis |
| 202V52120-0007 | Euro VI Heavy-Duty Lower Thrust Rod | HOWO T7H, TX Euro VI high-horsepower tractors, cold chain transport vehicles | Integrated forged end, double dust-proof sealed bushing, extended service life for long-haul transportation |
| HD90149520032 | Mining Heavy-Duty Lower Torque Rod Assembly | HOWO 60T wide-body mining dump truck, heavy engineering construction vehicles | Extra thick seamless steel pipe, double-layer sealed rubber bushing, high impact and shock resistance for harsh mining sites |
| WG9525521275 | Haohan N Series Lower Torque Rod | Sinotruk Haohan N7G, N5G Weichai power tractors | Standard straight rod structure, compatible with Weichai engine chassis, widely used as aftermarket replacement |
| AZ9114520275 | Conventional Lower Thrust Rod | Old Steyr King, early HOWO WD615 two-valve platform trucks | Simple rubber bushing structure, only for old vehicle maintenance and replacement |
