712W35502-0192
Shacman Sinotruk HOWO FAW Dongfeng
| Attribute | Description |
|---|---|

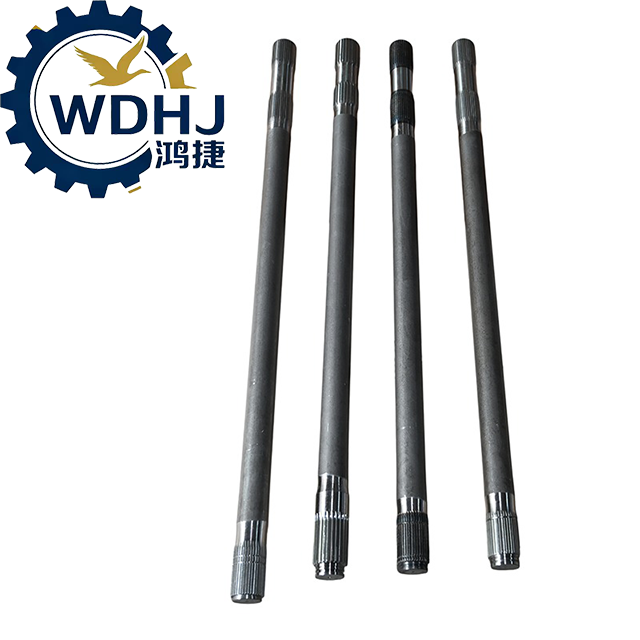

| Part Name | Rear Axle Half Shaft (Left Side) |
| Position | Left-side (driver’s side on LHD vehicles), connects differential gear to left wheel hub |
| Primary Function | Delivers rotational power from the central differential to the left rear wheel under high-load conditions |
| Total Length (L) | 1,155 mm (standardized length for MCP16 axle configuration) |
| Shaft Diameter | Heavy-duty design; typically Ø45–55 mm (exact size varies by section — root, splined end, flange) |

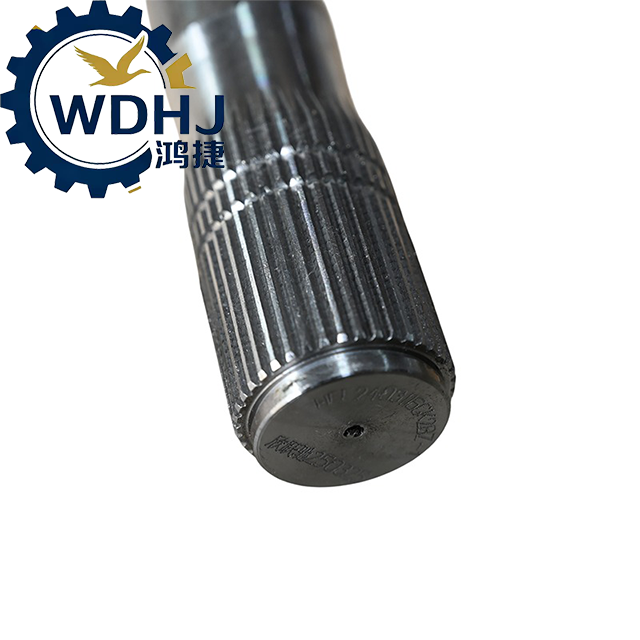

| Spline Count | Standard Sinotruk specification (commonly 18 or 20 teeth; must match differential side gear and hub input) |
| Material | High-strength alloy steel (e.g., 40Cr, 35CrMo) |
| Manufacturing Process | Forged + machined + precision heat-treated (quenched & tempered) for optimal strength and toughness |

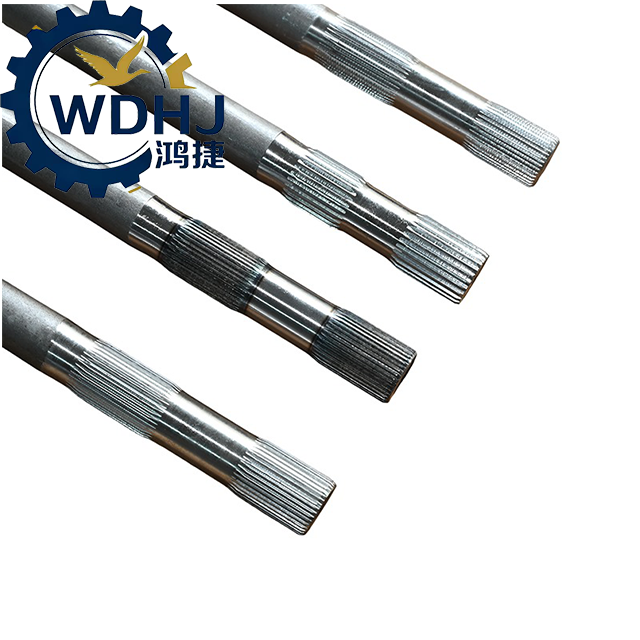

| Tooth Type | Internal/external splines with hardened tooth profile for durability |
| Axle Compatibility | Designed specifically for MCP16 series cast drive axles (16-ton capacity, often equipped with differential lock) |
| Load Capacity | Rated for heavy-duty operation up to ~16 tons GAWR (Gross Axle Weight Rating) |
| Quality Standard | OEM Original / Premium Aftermarket Equivalent (meets Sinotruk specifications) |
| Weight (Approx.) | 28–35 kg |
|
|
|
