WG9000360716
Shacman Sinotruk HOWO FAW Foton Auman
| Attribute | Description |
|---|---|

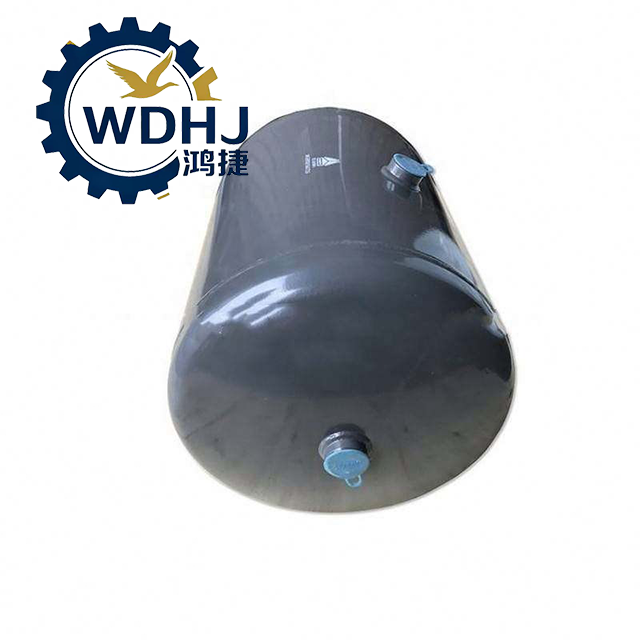

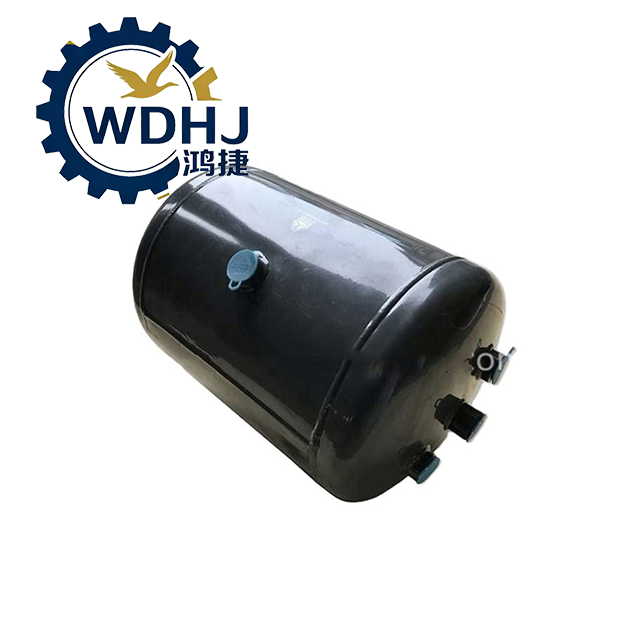

| Product Name | Air Reservoir / Compressed Air Tank (20L Standard Type) |
| Common Names | Air Storage Tank, Brake Air Tank, Pneumatic Reservoir |
| Function | Stores compressed air for brake and auxiliary pneumatic systems |
| Position | Mounted on chassis side rail (typically between axles or behind cab) |
| Design Type | Cylindrical welded steel pressure vessel with multiple ports |
| Application Type | Heavy-Duty Trucks, Tractors, Dumpers, Concrete Mixers, Special Chassis |
| Parameter | Specification |
|---|---|
| OEM Part Number | WG9000360716 |
| Capacity | 20 liters (20L) |
| Outer Diameter (OD) | Φ275 mm |
| Length | Approx. 390 mm |
| Number of Ports | 5 connection ports (inlet, outlet, sensor, test port, drain valve) |
| Thread Size | M22×1.5 (standard for main connections) |
| Material | High-strength carbon steel (aluminum version available for export models) |
| Weight | ~6.3 kg (empty, steel version) |
| Rated Working Pressure | 1.0 MPa (10 bar / 145 psi) |
| Burst Pressure | >3.0 MPa (tested beyond service limits) |
| Surface Treatment | |
| • Inner wall: Phosphated + dedicated rust-inhibiting coating | |
| • Outer surface: Powder-coated for enhanced corrosion resistance | |
| Welding Process | Fully automated robot welding for consistent seam integrity |
| Compliance Standards | Meets Chinese GB standards for automotive pressure vessels; ISO 9001 certified production |
