HD90009440183
Shacman Sinotruk HOWO FAW Dongfeng Foton Auman
| Attribute | Description |
|---|---|

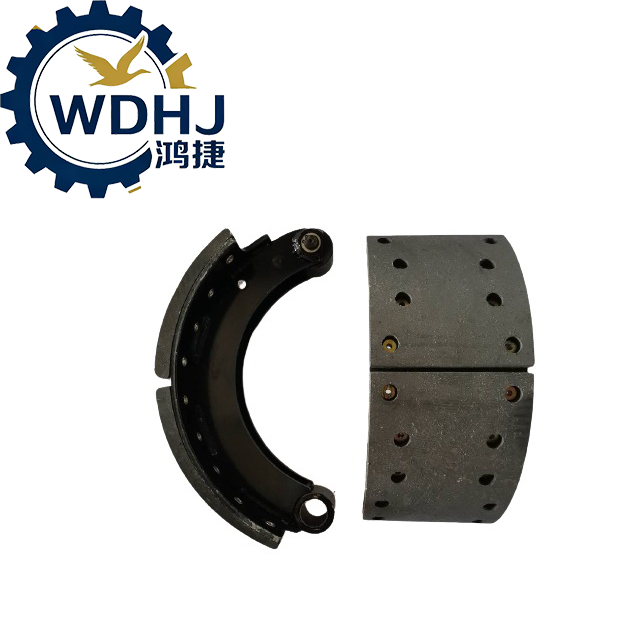

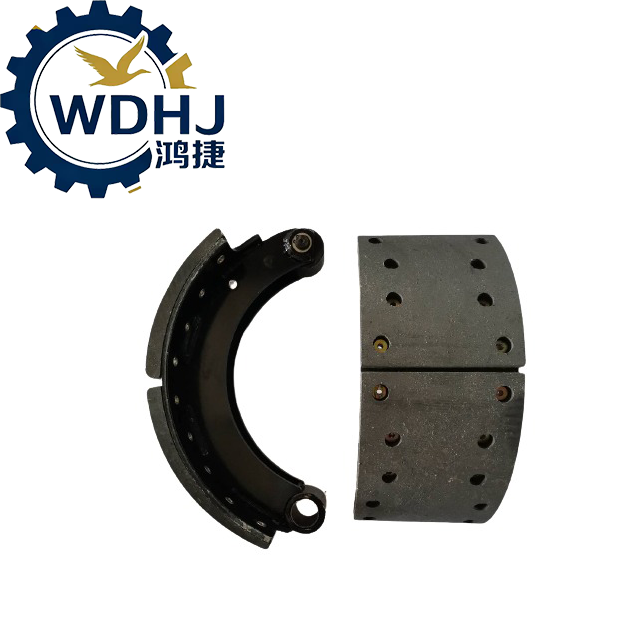

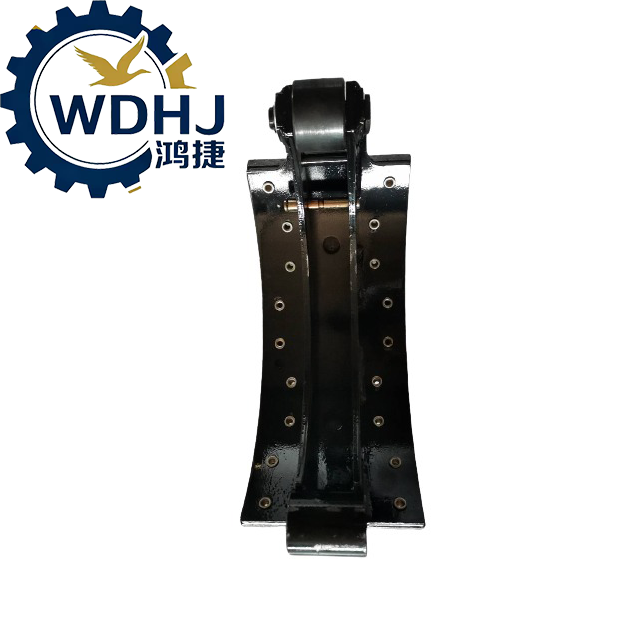

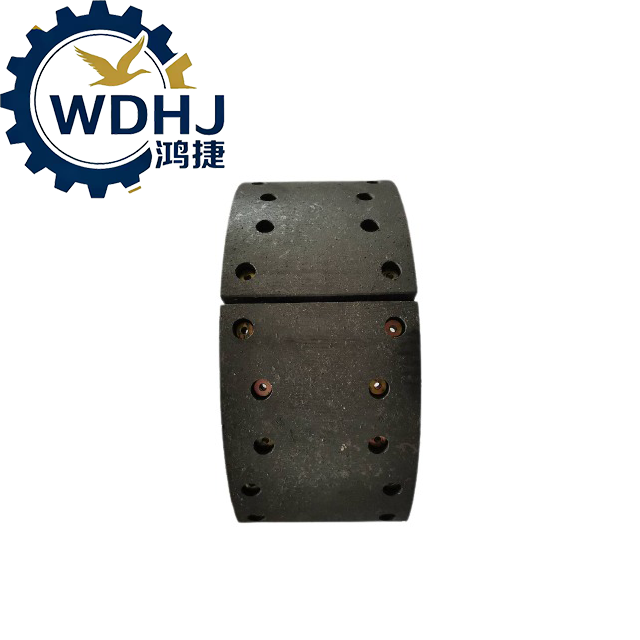

| Part Name | Brake Shoe Assembly (Brake Lining Set) |
| Primary Function | Transmits hydraulic/pneumatic actuator force to create friction with the brake drum, slowing or stopping the vehicle |
| Design Type | Arc-shaped metal backing plate bonded or riveted with friction material |
| Friction Material | Asbestos-free (NAO), semi-metallic, or ceramic fiber composite – environmentally safe and heat-resistant |
| Backing Plate Material | High-strength stamped steel, corrosion-protected |
| Dimensions (Typical) | Designed for Φ420 mm × 180 mm brake drums (Drum ID × Friction Width) – common size for heavy-duty axles |
| Friction Area | Full-contact arc design ensures maximum grip and even wear |
| Mounting Position | Installed inside the drum brake assembly on drive axles or steering axles |
| Axle Compatibility | Specifically designed for HanDe (HD) EQ153-series axles and compatible configurations |
| Operating Temperature Range | -40°C to +350°C (depending on friction formulation) |
| Quality Standard | OEM Specification / Premium Aftermarket Equivalent |
| Weight (Approx.) | 6–8 kg per set (varies by design) |
|
|
|
| Part Number | Part Name | Applicable Models | Product Attribute |
|---|---|---|---|
| HD90009440176 | Front Brake Shoe Assy | F3000, Old M3000 | OEM cast iron, non-asbestos lining, anti-rust, Hande 7.5t axle |
| DZ9112340060 | Rear Brake Shoe Assembly | F3000, Aolong | Welded structure, wear-resistant, dump truck dedicated |
| HD90129340030 | Rear Brake Shoe Assy | New M3000, H3000 | Lightweight, pre-installed roller, OEM & aftermarket |
| HD90149340095 | Middle Axle Brake Shoe | X3000, L3000 | High friction lining, stable braking, 6x4 tractor |
| 199000340061 | Heavy Duty Rear Brake Shoe | F3000, X3000 | Thick shoe body, mountain heavy load use |
| HD90129340422 | Reinforced Brake Shoe Assy | X5000 | High strength alloy, low brake fading |
| HD90129340239 | Full Set Brake Shoe Assembly | X6000 8x4 Truck | Complete with rivets, engineering vehicle special |
| DZ9112340061 | Universal Rear Brake Shoe | All F/M/X Series | Multi-model replacement, export standard |
| 81.50201.0137 | Front Brake Shoe Assy | F2000, Aolong | Short front shoe, 8 mounting holes |
| DZ95009440001 | Light Truck Brake Shoe | M3000S, K3000 | Compact size, short haul logistics vehicle |
