Original Flame Red Midsection Bumper System for FAW J6P Truck Cab Body Parts Accessories Front Cover for Howo Jiefang Models Full Range of Bumpers

Original Flame Red Midsection Bumper System for FAW J6P Truck Cab Body Parts Accessories Front Cover for Howo Jiefang Models Full Range of Bumpers

The Bumper Assembly is a critical structural and protective component of FAW Jiefang J6, J7, J5P, JH6, and Xindawei series heavy-duty commercial vehicles. Designed to absorb impact energy during low-speed collisions, shield vital front-end systems (such as radiators, condensers, and wiring), and enhance aerodynamic styling, this part plays a key role in both vehicle safety and aesthetic integrity.

Available in multiple configurations — including full-width steel bumpers, modular segmented bumpers (left/middle/right), and plastic composite variants — FAW bumpers are engineered to meet OEM standards with high durability under harsh operating conditions such as mining, construction, long-haul freight, and urban logistics.

Commonly found on models like the J6P 380HP+ tractors, dump trucks, and cargo carriers, these bumpers are designed for easy maintenance, localized repair, and global compatibility across domestic and export markets.

Quantity:
Availability:





Inquire Add to Basket

Brand:
FAW

Product Description

Attribute	Description
Product Name	Front/Rear Bumper Assembly / Impact Bar
OEM Application	FAW Jiefang J6, J7, J5P, JH6, Xindawei Series
Brand	FAW Jiefang (First Automotive Works)
Component Type	Truck Body Protection Part / Structural Trim
Function	Collision absorption, engine compartment protection, pedestrian safety, mounting base for fog lights and sensors
Design Styles
• Full Steel Bumper	High-strength cold-rolled steel (e.g., Q491 series)

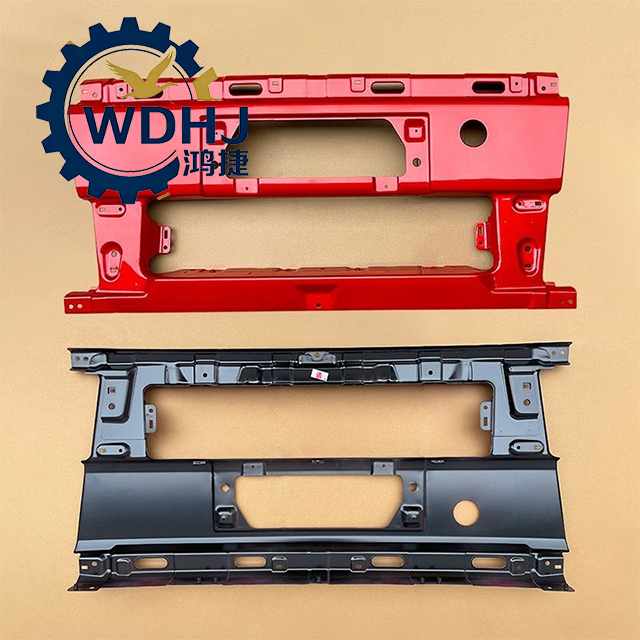

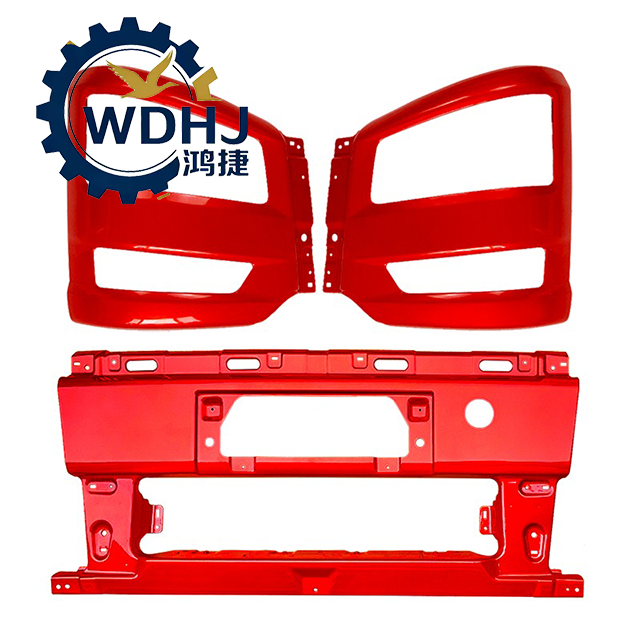

• Modular Segment Design	Left, center, right sections (e.g., 2803010-Q491, 2803125-2000/D-Q2)
• Plastic Composite	Lightweight PP/ABS versions for lighter-duty use
Installation Position	Front lower grille area or rear chassis frame

Name1

Name2

Parameter	Details
Primary Materials
- Steel Version	Cold-rolled high-tensile steel (3–4mm thickness)
- Plastic Version	Reinforced engineering plastic (PP+EPDM, ABS, SMC)
Surface Treatment
• Steel Bumpers	E-coat primer + topcoat; salt spray tested over 1,000 hours
• Plastic Bumpers	UV-stabilized matte finish; anti-aging additives
Weight Range	8 kg (plastic side panel) – 22 kg (steel center bumper)
Dimensions (Typical)	Varies by model: • Length: 800 mm – 2,600 mm • Height: 200–400 mm • Depth: 100–250 mm
Mounting Method	Bolt-on using brackets welded to frame rail or cab support structure
Load Capacity	Designed to withstand impacts up to 5–8 km/h without damaging core components
Compatibility	Matches flat-nose cab designs; compatible with Euro-IV through China VI emission standard cabs
