| Quantity: | |
|---|---|
61500010383
Shacman Sinotruk HOWO FAW Dongfeng
| Parameter | Specification |
|---|---|

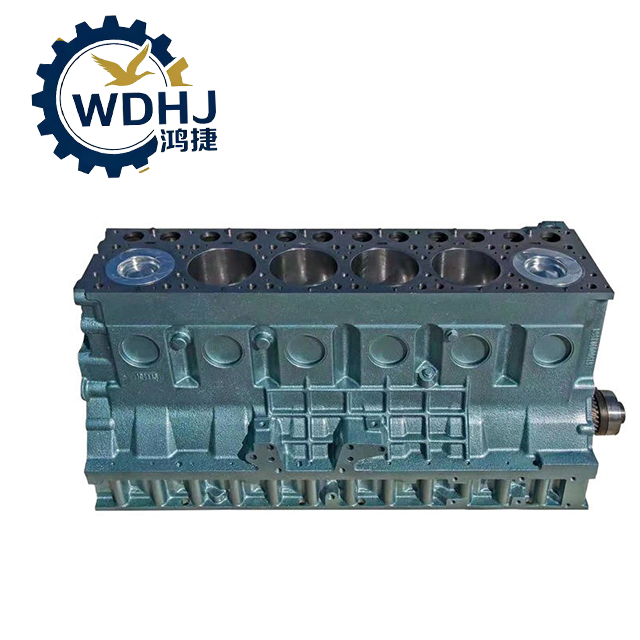

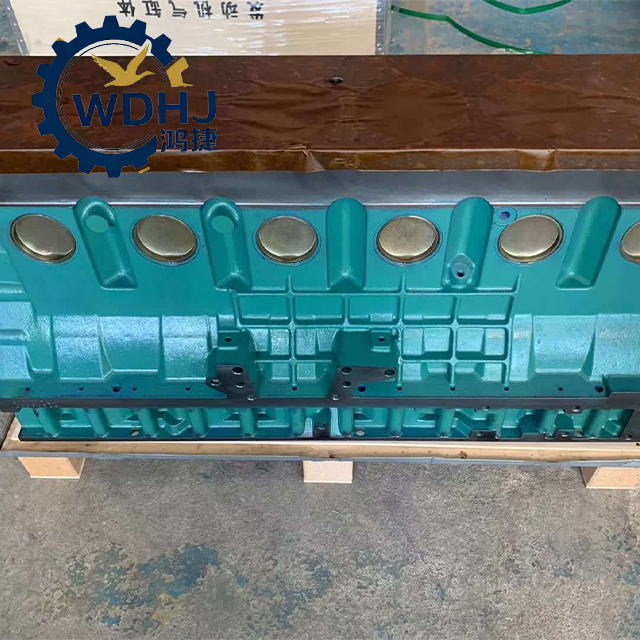

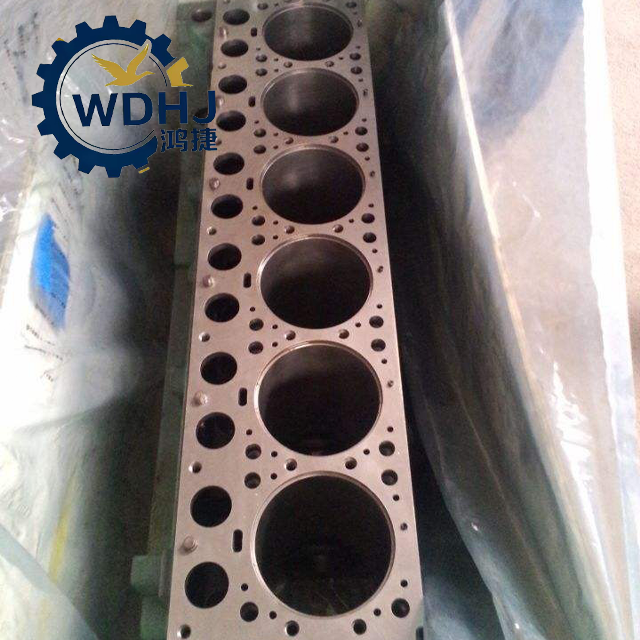

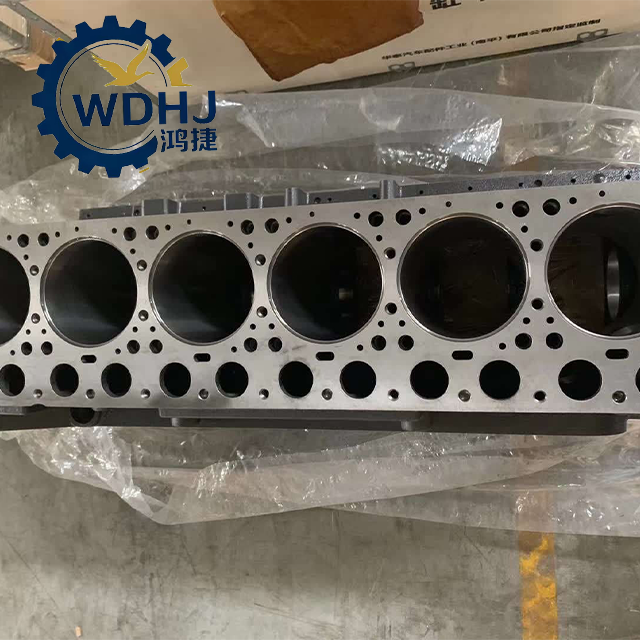

| Part Name | Cylinder Block Assembly |
| OEM Number | 61500010383 |
| Alternative OEM Numbers | • AZ1095010048 • VG1500010383 • 61500010385 • 61500010386 |
| Material | High-strength alloy cast iron (GG25/GG30 grade) — excellent rigidity, vibration damping, and thermal stability |
| Cylinder Arrangement | Straight-six (Inline-6) |
| Bore Diameter (Cylinder Bore) | ≈ 126 mm (4.96") (Note: Confirmed value based on WD615 platform) ⚠️ Earlier incorrect reference to 87mm was inaccurate. |
| Stroke | 155 mm (6.1") |
| Displacement per Cylinder | ~1.93L → Total ~11.6L (for WP12 variants) |
| Design Type | Wide-Block (Broad Structure) – enhanced strength for high-torque applications |
| Main Bearing Caps | Six-bolt main bearing caps (some models with cross-bolted design for added rigidity) |
| Coolant Passages | Integrated water jackets around each cylinder bore for efficient cooling |
| Oil Galleries | Precision-drilled internal oil channels for lubrication to main bearings, camshaft, and connecting rods |
| Weight (Net) | Approximately 301 kg (663 lbs) (Packaged weight may reach 700 kg if crated with accessories or pallet) |
| Mounting Features | Pre-machined mounting points for transmission, flywheel housing, oil pan, and engine mounts |
| Emission Standard Compatibility | Primarily designed for Euro II (China II) engines; also used in early Euro III configurations |
| Rebuildability | Yes – can be bored oversize (+0.25mm, +0.50mm, +1.00mm) or sleeved if damaged |
| Manufacturer | Model Series | Application |
|---|---|---|
| Sinotruk (HOWO) | HOWO A7, T7H, ZZ1317, ZZ5317 | Long-haul freight, mining |
| Shacman (SHACMAN) | F3000, M3000, X3000 | Heavy transport, construction |
| FAW Jiefang | CA141, J6 series | Domestic logistics |
| Dongfeng Tianlong | KL/KM series | Regional haulage |
| Foton Auman | L series | Medium-duty trucks |
|
|
|
| Parameter | Specification |
|---|---|
| Part Name | Cylinder Block Assembly |
| OEM Number | 61500010383 |
| Alternative OEM Numbers | • AZ1095010048 • VG1500010383 • 61500010385 • 61500010386 |
| Material | High-strength alloy cast iron (GG25/GG30 grade) — excellent rigidity, vibration damping, and thermal stability |
| Cylinder Arrangement | Straight-six (Inline-6) |
| Bore Diameter (Cylinder Bore) | ≈ 126 mm (4.96") (Note: Confirmed value based on WD615 platform) ⚠️ Earlier incorrect reference to 87mm was inaccurate. |
| Stroke | 155 mm (6.1") |
| Displacement per Cylinder | ~1.93L → Total ~11.6L (for WP12 variants) |
| Design Type | Wide-Block (Broad Structure) – enhanced strength for high-torque applications |
| Main Bearing Caps | Six-bolt main bearing caps (some models with cross-bolted design for added rigidity) |
| Coolant Passages | Integrated water jackets around each cylinder bore for efficient cooling |
| Oil Galleries | Precision-drilled internal oil channels for lubrication to main bearings, camshaft, and connecting rods |
| Weight (Net) | Approximately 301 kg (663 lbs) (Packaged weight may reach 700 kg if crated with accessories or pallet) |
| Mounting Features | Pre-machined mounting points for transmission, flywheel housing, oil pan, and engine mounts |
| Emission Standard Compatibility | Primarily designed for Euro II (China II) engines; also used in early Euro III configurations |
| Rebuildability | Yes – can be bored oversize (+0.25mm, +0.50mm, +1.00mm) or sleeved if damaged |
| Manufacturer | Model Series | Application |
|---|---|---|
| Sinotruk (HOWO) | HOWO A7, T7H, ZZ1317, ZZ5317 | Long-haul freight, mining |
| Shacman (SHACMAN) | F3000, M3000, X3000 | Heavy transport, construction |
| FAW Jiefang | CA141, J6 series | Domestic logistics |
| Dongfeng Tianlong | KL/KM series | Regional haulage |
| Foton Auman | L series | Medium-duty trucks |
|
|
|
