| Quantity: | |
|---|---|
DZ97189585313
Shacman
| Attribute | Description |
|---|---|

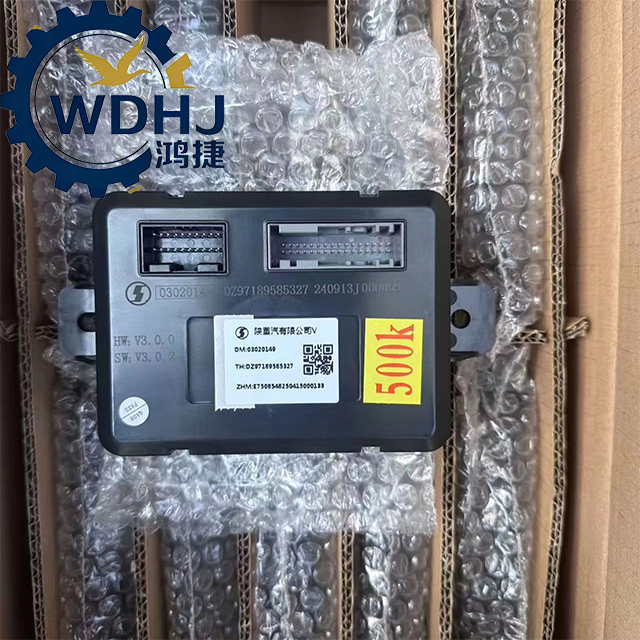

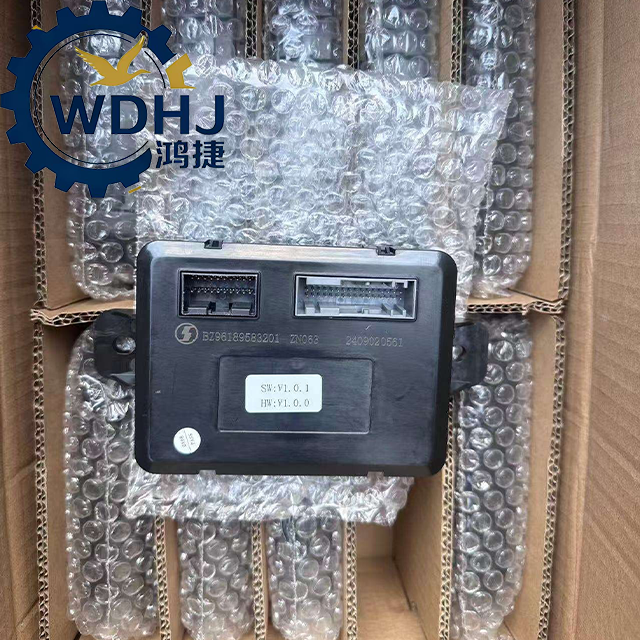

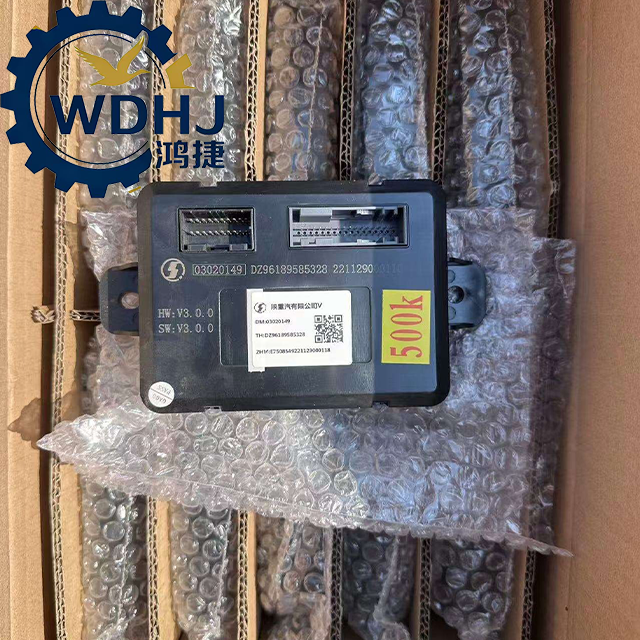

| Part Name | Air Conditioning Controller Module / HVAC Control Panel |
| OEM Number | DZ97189585313 |
| Type | Electronic Control Module (Digital or Rotary Dial Type) |
| Position | Center or side section of the instrument panel / dashboard |
| Housing Material | High-quality ABS plastic with soft-touch finish |
| Internal Components | PCB board, micro-switches, potentiometers (if rotary), LED indicators |
| Functionality | Controls: • Temperature settings • Fan speed levels • Air distribution (ventilation modes) • A/C on/off signal • Defroster activation |
| Interface Type | May include buttons, dials, or digital display depending on model year |
| Dimensions | Standard OEM size — designed to fit original dash opening |
| Voltage Rating | 24V DC (standard for commercial trucks) |
| Condition | Brand new (OEM fresh stock or premium aftermarket) |
| Warranty | Typically 3 to 12 months (varies by supplier and region) |
Name1
Name2
Verify Compatibility Before Purchase
Confirm your truck model, year, and existing control style (dial-based vs digital).
Some X3000/X5000 variants have different interfaces.
Professional Installation Recommended
Involves disconnecting battery and removing dashboard trim.
Risk of damaging surrounding electronics if not handled properly.
Disconnect Battery Before Work
Prevents electrical shorts and protects sensitive circuitry.
Wait at least 10 minutes after disconnection.
Observe ESD (Electrostatic Discharge) Protection
Wear an anti-static wrist strap when handling.
Avoid touching exposed pins or connectors directly.
Check Wiring Harness Connector
Ensure plug matches exactly — incorrect connection can damage the module.
Inspect for bent pins or corrosion.
Test All Functions After Installation
Fan speed stages
Mode switching (face, feet, defrost)
A/C activation signal
Dashboard indicator lights
Verify:
Address any malfunctions immediately.
Avoid Moisture Exposure
Never install if water has entered the dash previously.
Seal any roof or windshield leaks first.
Do Not Use Harsh Cleaners
Avoid alcohol-based or abrasive cleaners on buttons/dials.
Use damp cloth only.
Storage Advice
Keep in sealed anti-static bag until installation.
Store in dry, room-temperature environment.
Use Genuine or High-Quality Replacements
Low-cost imitations often fail prematurely due to poor PCB quality or incompatible firmware.
