| Quantity: | |
|---|---|

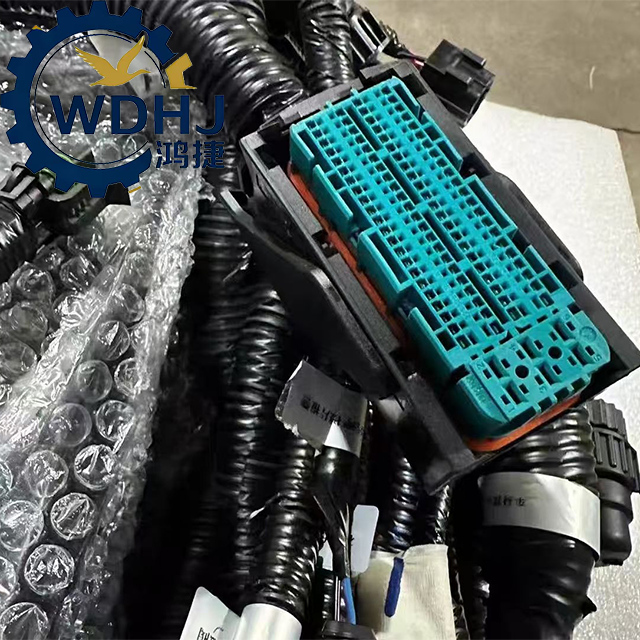

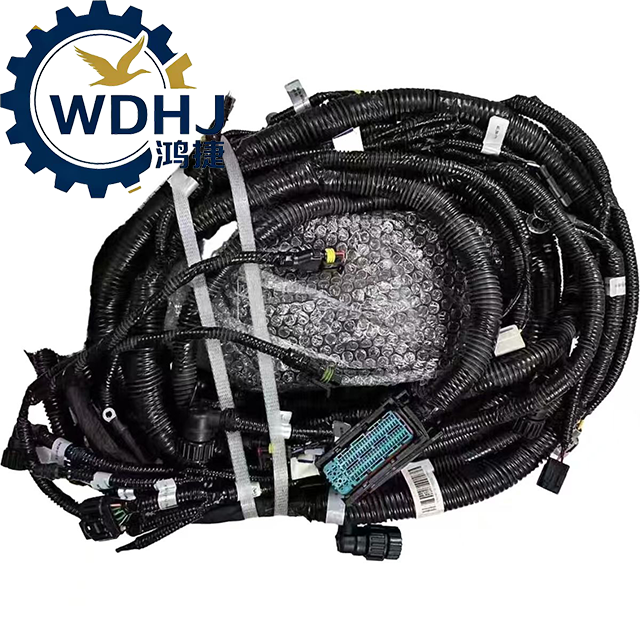

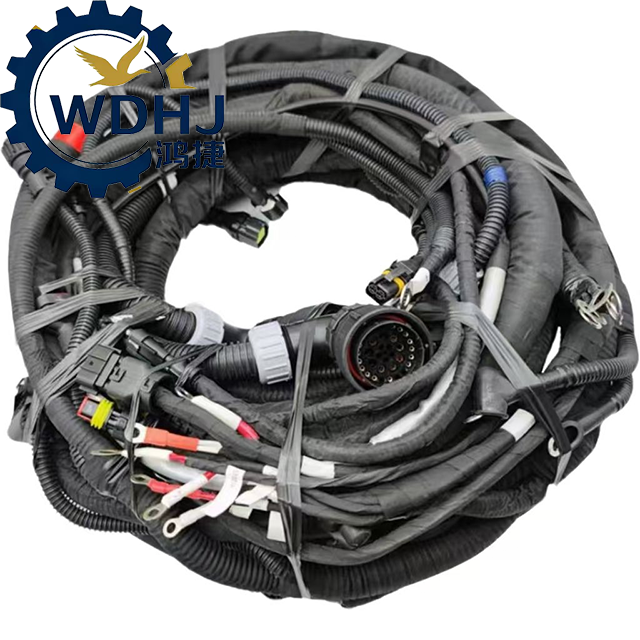

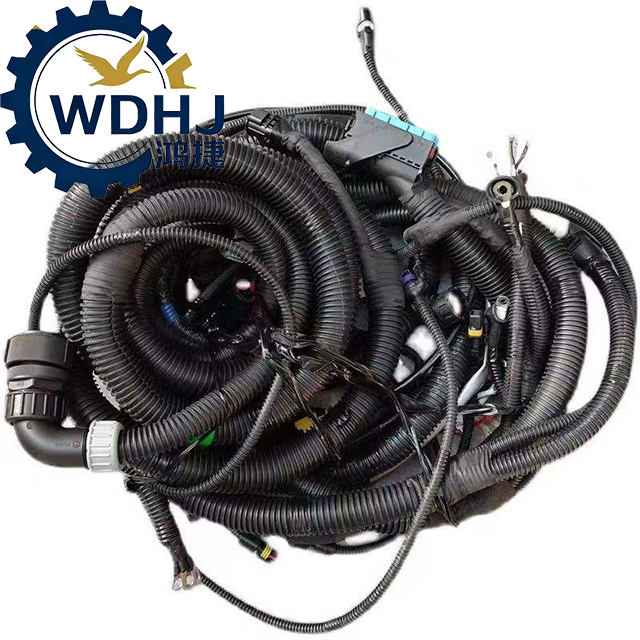

DZ97259776080
Shacman
| Attribute | Specification |
|---|---|
| OEM Number | DZ97259776080 |
| Alternative Names | Dashboard Harness, Instrument Cluster Harness, Cab Main Wire Loom |
| Voltage Rating | 24V DC (Standard for commercial trucks) |
| Conductor Material | Tinned copper wires with high conductivity |
| Insulation Material | Automotive-grade PVC or XLPO (cross-linked polyolefin), heat and abrasion resistant |
| Connector Types | Multiple OEM-specific connectors: - Multi-pin (16–80+ pins) - Sealed waterproof types - Standardized plugs for instrument cluster, HVAC, steering wheel controls, etc. |
| Harness Length | Custom length based on SHACMAN Delong X3000/X6000/F3000 cab architecture (typically 1.5m – 3m total routing) |
| Wire Gauge Range | 0.5 mm² to 4.0 mm² (depending on circuit load) |
| Protection Level | Bundled with corrugated tubing, tape wrapping, or split loom for mechanical and thermal protection |
| Operating Temperature | -40°C to +105°C |
| Compliance Standards | GB/T, ISO 6722 (Road Vehicle Wiring), RoHS |
| Warranty | Typically 3 to 6 months (varies by supplier) |
Name1
Name2
Confirm Exact Compatibility Before Purchase
Use VIN number, model year, engine type, and trim level to verify this harness matches your vehicle's configuration.
Even small differences (e.g., presence of GPS, automatic wipers) can require a different harness.
Professional Installation Required
Involves complete or partial dashboard disassembly, removal of steering column covers, and access to footwell areas.
Must be performed by trained technicians familiar with SHACMAN electrical systems.
Disconnect Battery Before Work
Always remove the negative terminal of the battery before handling any wiring.
Prevents short circuits, ECU damage, or accidental airbag deployment (if applicable).
Handle with Care During Installation
Avoid bending, stretching, or pinching wires.
Do not step on or crush the harness during reassembly.
Follow Factory Routing Path
Route through designated clips, grommets, and channels.
Keep away from sharp edges, moving parts, and hot surfaces (exhaust manifolds, heater cores).
Secure All Connectors Fully
Ensure every plug is fully seated and locked.
Check for proper engagement — loose connections cause intermittent faults.
Inspect Grounding Points
Clean and tighten all ground straps (black wires connected to chassis).
Poor grounding leads to flickering lights,仪表 malfunctions, and sensor errors.
Test All Systems After Installation
Test:
Instrument cluster illumination and readings (speedo, tacho, fuel, temp)
Warning lights (ABS, oil pressure, battery)
Horn, wipers, turn signals
Air conditioning controls
OBD-II port communication
Central locking, window switches (if integrated)
Avoid Moisture Exposure
Never install in wet conditions.
Replace damaged grommets where harness passes through metal panels.
Keep Original Harness for Reference (If Replacing)
Compare side-by-side before final installation.
Helps identify any last-minute discrepancies.
