1005098929
Shacman Sinotruk HOWO FAW Dongfeng
| Attribute | Specification |
|---|---|

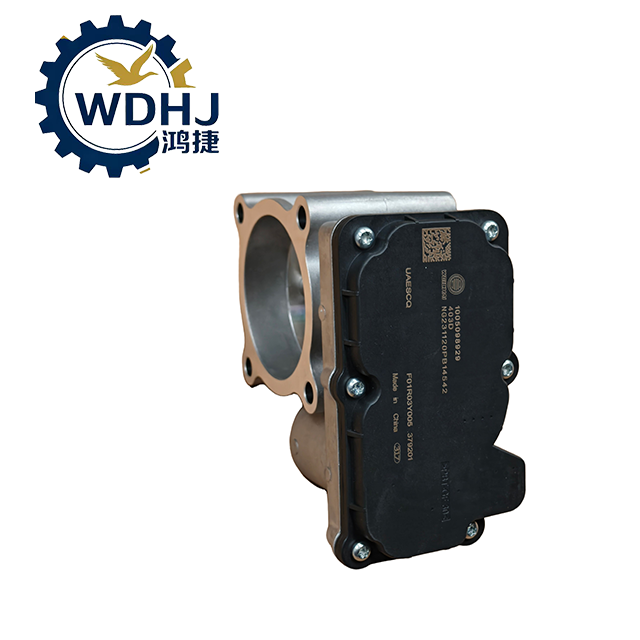

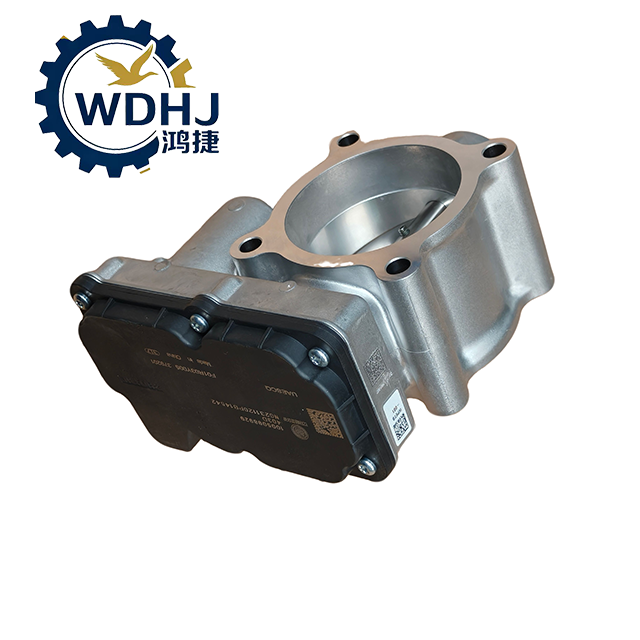

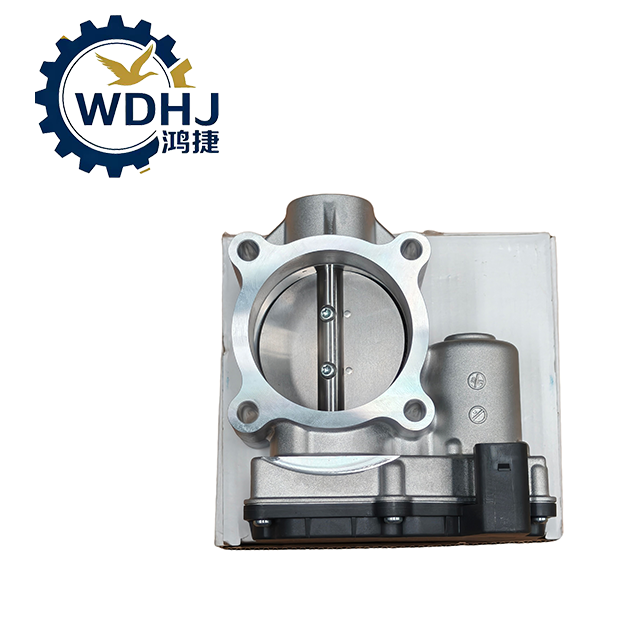

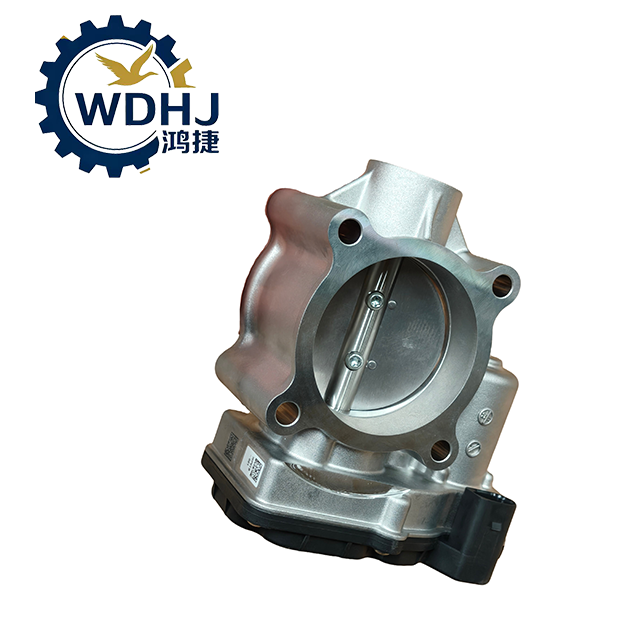

| Part Name | Electronic Throttle Body / Electronic Throttle Valve Assembly |
| OEM Part Number | 1005098929 |
| Bosch Production Number | 0 280 750 791 (primary) Also referenced as 0280750791 |
| Voltage Rating | 24V DC (standard for Chinese commercial trucks) |
| Nominal Diameter | 60mm or 70mm (depending on engine variant; common for WP10–WP15 series) |
| Valve Type | Butterfly-type electronically controlled throttle |
| Actuation Method | High-precision DC motor with gear reduction drive |
| Sensor Integration | Dual redundant position sensors (Hall-effect type) — provides real-time feedback to ECU |
| Signal Output | Dual analog voltage signals (e.g., 0.5–4.5V range), redundancy improves safety and diagnostics |
| Housing Material | High-grade aluminum alloy with anti-corrosion coating |
| Sealing Components | NBR or FKM (Viton) O-rings for high-temperature resistance |
| Protection Class | IP6K9K — Fully dust-tight and protected against high-pressure, high-temperature water jets |
| Operating Temperature Range | -40°C to +120°C |
| Weight | Approx. 1.5 kg – 2.0 kg |
| Compliance Standards | Bosch automotive quality standard, meets GB17691-2018 (China VI), ISO 15855 |
Name1
Name2
Due to its electronic sensitivity and calibration requirements, proper installation is crucial.
Power Off: Disconnect battery negative terminal to prevent short circuits.
Inspect Intake Manifold: Ensure mating surface is clean, flat, and free from carbon buildup or debris.
Check Electrical Connector: Look for bent pins, corrosion, or moisture ingress.
Verify New Unit Condition: Confirm packaging seal and scan QR code (if available) for authenticity.
Remove old throttle body by loosening mounting bolts.
Clean intake flange thoroughly using non-residue cleaner.
Install new gasket or sealing ring — never reuse old seals.
Mount the new 1005098929 unit and tighten bolts evenly (torque: ~8–10 Nm).
Reconnect electrical harness securely — ensure locking clip clicks into place.
Reconnect battery and turn ignition ON (do not start engine yet).
❗ Critical Step – Perform Initialization Learning (Throttle Adaptation)
After replacement, the ECU must relearn the throttle's idle and full-open positions.
Required tools:
Original diagnostic device (e.g., Weichai ZhiDuoxing / "Wisdom Star", Delphi DS150E, or Sinotruk EOL tester)
Software access to perform “Throttle Body Initialization” or “Adaptive Reset”
Procedure typically includes:
Ignition ON, engine OFF
Enter service menu → Select “Throttle Learning”
Follow prompts until completion (~2–5 minutes)
⚠️ Failure to complete this step will result in:
Check Engine Light (CEL) illumination
Reduced power mode ("limp home")
Poor idle stability or unresponsive accelerator
