| Quantity: | |
|---|---|
WG9518522000
Shacman Sinotruk HOWO
| Parameter | Description |
|---|---|

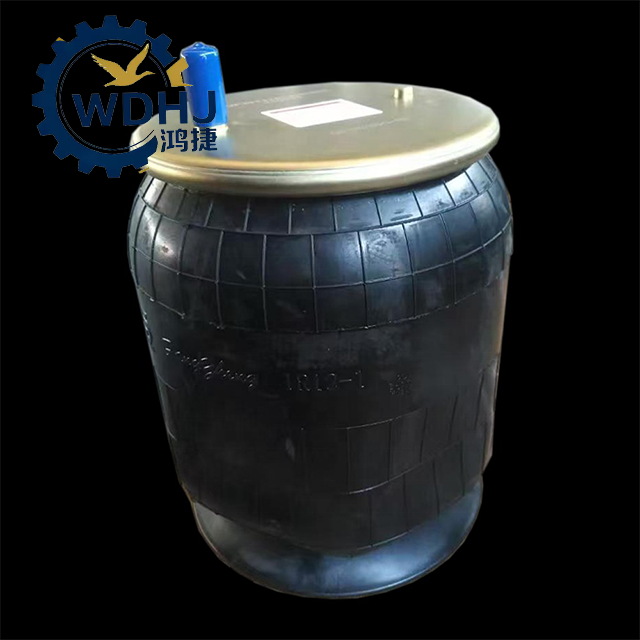

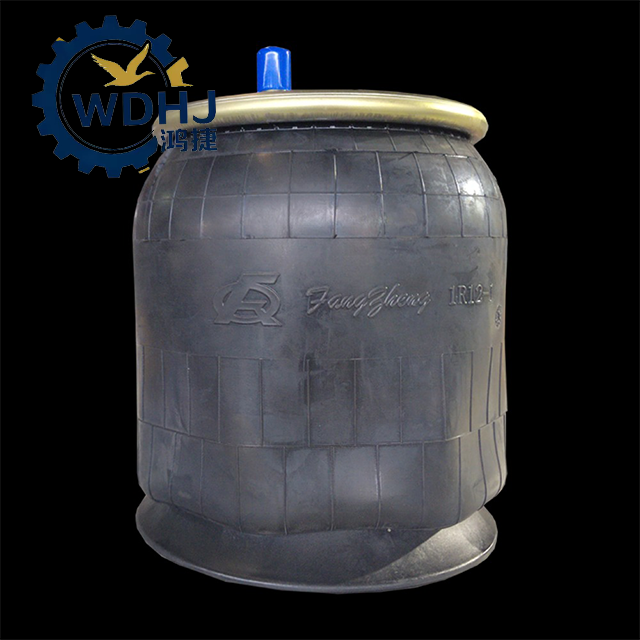

| Type | Double Convolute Rolling Lobe Air Spring (Bellows Style) |
| Main Material | High-quality natural rubber blend with synthetic fiber reinforcement (e.g., nylon or polyester cord layers) |

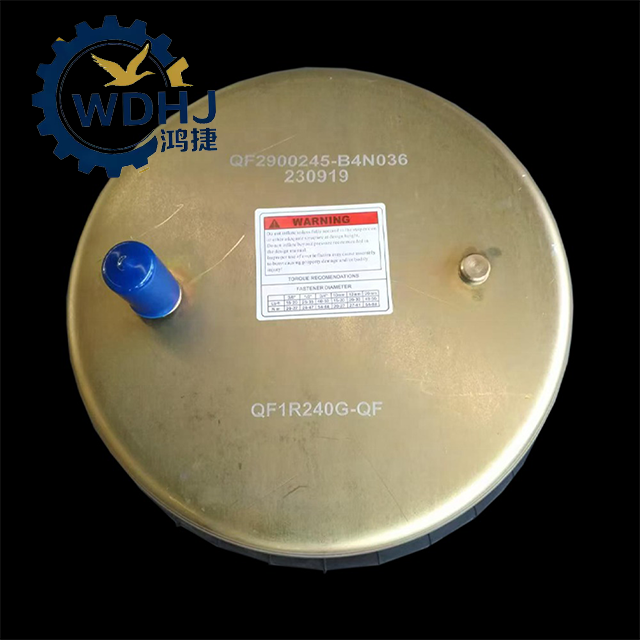

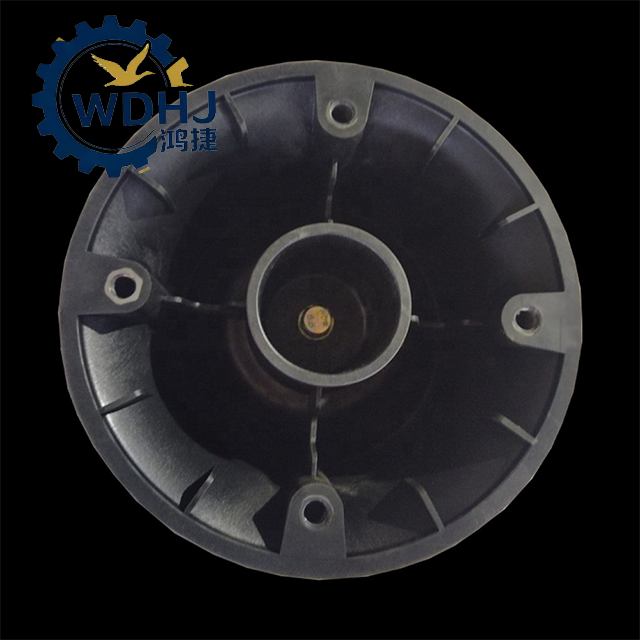

| Structure | Multi-layer reinforced rubber bellows with upper and lower metal mounting plates |
| Mounting Method | Bolt-on installation via top and bottom studs/plates (exact stud count/dimensions depend on model; typically M10–M14) |
| Air Inlet Port | Standard pneumatic connection: NPT 1/4" or metric equivalent (e.g., M16×1.5 straight fitting) |
| Operating Pressure Range | Typically 5–8 bar (72–116 psi), depending on load and vehicle settings |
| Effective Area | Designed to match OEM suspension dynamics (specific value not public, optimized for load capacity) |
| Extended Height | Approx. 220–240 mm (varies by fitment; design-specific) |
| Compressed Height | Approx. 120–140 mm (depends on load and inflation status) |
| Outer Diameter (Max) | Approx. 200–220 mm |
| Load Capacity | Variable based on air pressure; supports several tons per spring (designed for rear tandem axle loads) |
| Temperature Range | -40°C to +90°C (-40°F to 194°F) |
| Durability Features | Ozone-resistant, UV-resistant, anti-aging rubber formulation; crack-resistant under repeated flexing |
|
|
|
