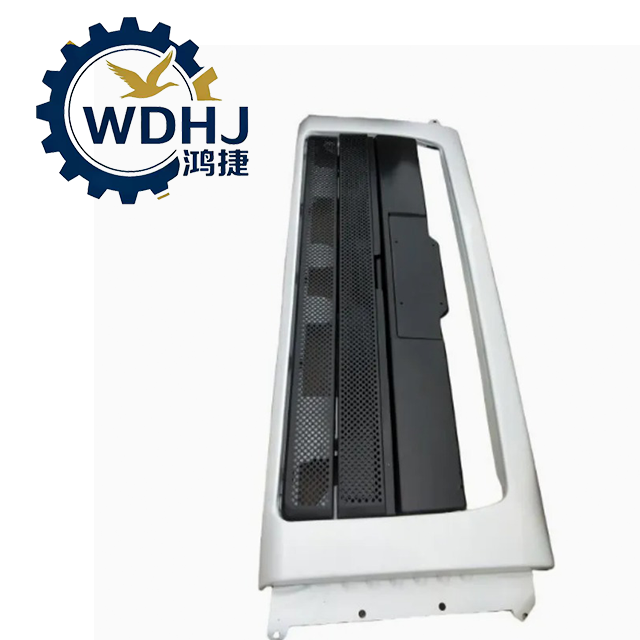

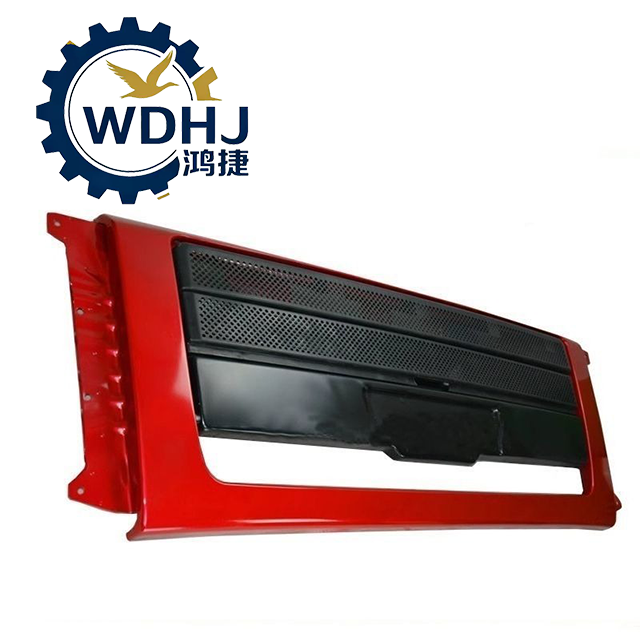

2803010-Q491 FAW 380HP Front Middle Bumper Assembly Front Bumper Middle Section

The Front Middle Bumper Assembly (OE: 2803010-Q491) is a heavy-duty steel front bumper center section designed specifically for FAW Jiefang J6P, Xindawei (New Dawei), and other medium-to-heavy-duty commercial truck models. As a critical structural and protective component of the vehicle’s front-end system, this middle bumper segment provides robust impact resistance, engine compartment protection, and functional utility in harsh operating environments.

Constructed from high-strength cold-rolled steel and precision-formed using advanced stamping technology, this OE-grade bumper is engineered to absorb collision energy, shield vital components such as the radiator and condenser, and serve as a practical step for driver access during maintenance or windshield cleaning.

Featuring a modular three-piece design, it allows cost-effective replacement of only the damaged section — significantly reducing repair downtime and maintenance costs. Widely used in mining, construction, bulk transport, and long-haul logistics sectors, this bumper meets rigorous durability standards, including over 1,000 hours of salt spray testing for superior corrosion resistance.

Quantity:
Availability:





Inquire Add to Basket

Model:
2803010-Q491
Brand:
FAW

Product Description

Attribute	Description
Product Name	Front Middle Bumper Assembly / Lower Center Bumper
OEM Part Number	2803010-Q491 (also listed as 2803010-Q491-MD)
Brand	FAW Jiefang (First Automotive Works)
Component Type	Truck Front Body Structure / Impact Protection Part
Function	Collision absorption, radiator protection, pedestrian safety, step function
Design Style	Modular segmented bumper – center section for integration with left/right side panels
Application Level	Heavy-load and off-road duty vehicles

Parameter	Details
Primary Material	High-strength cold-rolled steel (SPCC or equivalent)
Material Thickness	3.0 – 4.0 mm (standard: ~3.5 mm)
Manufacturing Process	One-piece press molding + electro-coating (E-coat) base treatment
Surface Finish	Factory-applied primer (primitive gray/black); requires topcoat painting to match body color
Corrosion Resistance	Passed 1,000+ hours of neutral salt spray test (NSS) — excellent anti-rust performance
Weight (Approx.)	18 kg – 22 kg (without mounting hardware or accessories)
Dimensions (L×W×H)	Approx. 100 cm × 60 cm × 26 cm (varies slightly by model year)
	Packaging size: ~1.0 x 0.6 x 0.26 m or 2.56 x 0.54 x 0.26 m (for full assembly kits)
Mounting Method	Bolt-on via internal support brackets welded to frame rails
Load Capacity	Designed to withstand frontal impacts at low speed and protect cooling modules
