A20F2-1308150A DONGFENG TRUCK YUCHAI ENGINE FAN ASSEMBLY

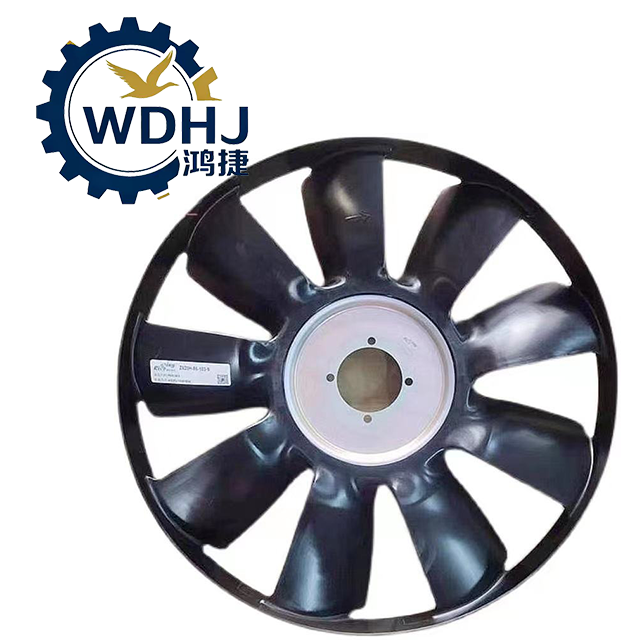

The Yuchai A20F2-1308150A Engine Cooling Fan Blade is an original equipment (OE) radiator fan manufactured by Guangxi Yuchai Machinery Co., Ltd. (Yuchai Power) for heavy-duty diesel engines. Designed as a critical component of the engine cooling system, this 9-blade circular fan with integrated outer ring (ring-type design) delivers high-volume airflow to maintain optimal engine temperature — especially during low-speed operation, idling, or heavy-load conditions such as climbing or hauling.

Engineered for use on Yuchai YC6A and YC6J series engines, it is widely installed on commercial trucks from Dongfeng, SHACMAN (Xuande), and major bus manufacturers like Yutong and Zhongtong. Constructed from high-strength glass-fiber reinforced nylon (PA66+GF), the fan offers excellent heat resistance, structural stability at high RPM, and reduced rotational inertia — protecting water pump bearings and fan clutch systems.

Quantity:
Availability:





Inquire Add to Basket

Model:
A20F2-1308150A
Brand:
Dongfeng

Product Description

Attribute	Description
Product Name	Engine Cooling Fan Blade / Ring-Type Radiator Fan
Blade Type	Circular (annular), 9-blade configuration with full outer stabilizing ring
Material	High-performance composite: PA66+GF (66% nylon + 30% glass fiber) — lightweight, heat-resistant, anti-static
Color	Black (standard OEM finish)
Mounting Style	Center hub with bolt-on flange; designed to mount directly onto viscous fan clutch
Design Advantages
	- Outer ring reduces tip vortex losses, increasing static pressure and cooling efficiency
	- Balanced blade geometry lowers operational noise
	- Lightweight construction reduces stress on driveline components
	- Resists deformation under centrifugal force up to 3,000+ RPM

Parameter	Specification
Part Number (OEM)	A20F2-1308150A
Alternative Designations	A20F2-1308150A-231 (supplier-specific variant), A6600-1308150, B3000-1308150
Fan Diameter (OD)	620 mm (±1 mm tolerance)
Hub Bore (Inner Diameter)	~86 mm (center mounting hole)
Number of Blades	9 (standard); some variants may differ
Weight	Approx. 1.5–1.8 kg
Max Operating Temperature	Up to 120°C continuous; short-term exposure up to 150°C acceptable
Balance Grade	Dynamically balanced to ISO 1940-1 G6.3 standard
Application Type	Belt-driven via fan clutch; used with mechanical or thermal silicone coupling
Compatibility Standard	Meets Yuchai OE specifications for medium-to-heavy-duty powertrains
