| Quantity: | |
|---|---|
DZ96189584344
FAW
| Attribute | Specification |
|---|---|

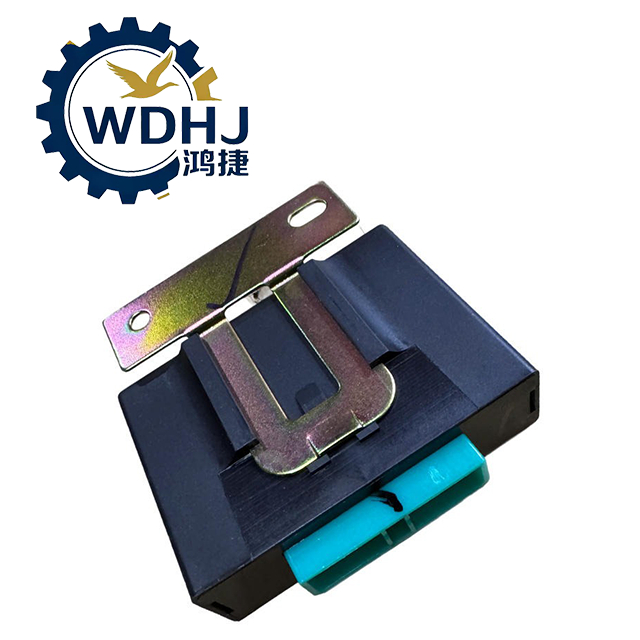

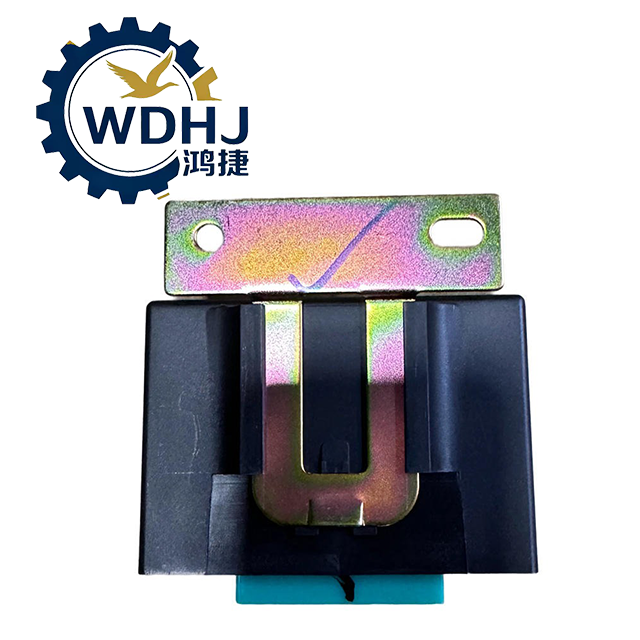

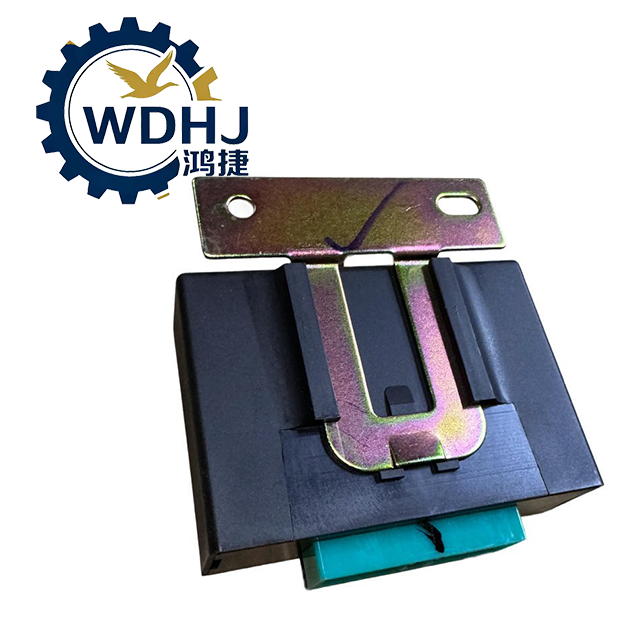

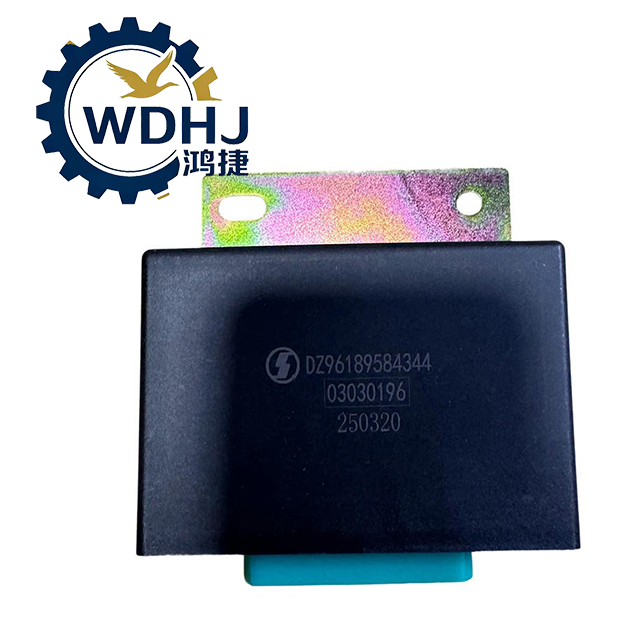

| Product Name | Electronic Turn Signal Flasher Relay |
| Part Number | DZ96189584344 |
| Alternative Numbers | DZ96189584309, DZ96189584334 |
| Voltage Rating | 24V DC (Nominal Range: 18V – 32V) |
| Flash Rate | 85 ± 10 flashes per minute (complies with GB11554 standard) |
| Duty Cycle | 40% – 60% (optimal on/off timing for visibility) |
| Load Capacity | Supports multiple 21W halogen bulbs or LED turn signal assemblies |
| Mounting Type | Plug-in modular design (3-pin or 4-pin configuration) |
| Housing Material | Flame-Retardant Engineering Plastic (UL94-V0 rated) |
| Internal Construction | High-Precision PCB with IC-based timing control |
| Vehicle Application | Shacman Delong X3000, M3000S, H3000, New Aolong Series |
| Compatible Engines | Weichai, Cummins-powered Shacman truck variants |
| Certification | Meets Chinese GB standards; OEM quality assurance |
Name1
Name2
| Parameter | Value |
|---|---|
| Operating Voltage | 24V DC (designed for dual-battery heavy truck systems) |
| Working Current | Adjustable based on connected load (typically 5–10A total) |
| Control Method | Integrated Circuit (IC)-Based Electronic Control |
| Flashing Frequency Stability | Maintains constant rate even during battery voltage drops or surges |
| Short-Circuit Protection | Built-in circuitry prevents damage from wiring faults |
| Overload Resistance | Automatically detects abnormal loads (e.g., bulb failure) and adjusts behavior accordingly |
| Ambient Temperature Range | -40°C to +85°C (-40°F to 185°F) |
| Vibration & Shock Resistant | Designed to withstand continuous road vibration and mechanical impacts |
| Pin Configuration | Typically 3-pin or 4-pin (verify base socket before installation) |
| Weight | Approx. 60 – 80 g |
