| Quantity: | |
|---|---|
3716020-362
FAW
| Attribute | Description |
|---|---|

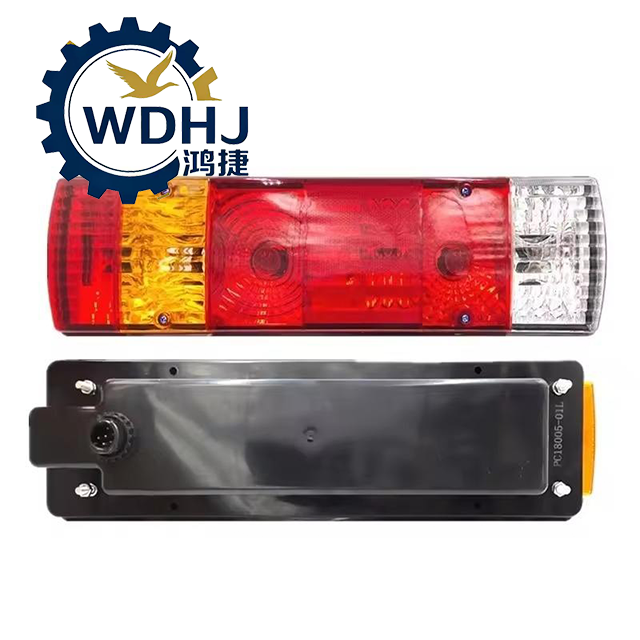

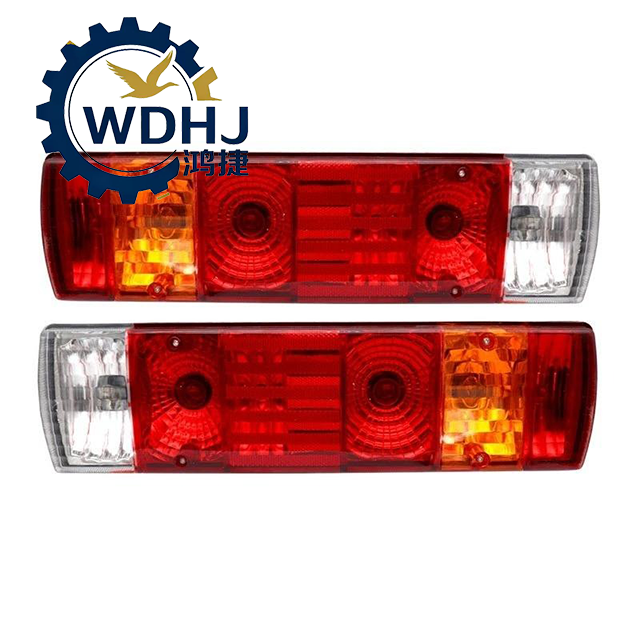

| Product Name | Right Rear Combination Lamp Assembly |
| Brand Compatibility | FAW Jiefang (primary); compatible with some Sinotruk HOWO, Foton, and semi-trailer applications |
| Functionality | Multi-function signal lighting: tail, brake, turn, reverse, reflector |
| Installation Side | Right-hand side (RHS) – typically indicated by even-number suffixes like "362" |
| Electrical System | 24V DC (Standard for Chinese heavy-duty diesel trucks) |
| Quality Standard | Meets ISO 9001; complies with national GB standards for automotive lamps |
Name2
| Parameter | Specification |
|---|---|
| Part Number | 3716020-362 / 3716020-362-C00 / 3716020-362-C00A / 3716020-362-B |
| Voltage Rating | 24V DC |
| Light Source Options | |
| • Halogen Version: Bulbs (e.g., 21W for brake/turn, 5W for tail light) | |
| • LED Version: High-brightness SMD LEDs (standard on newer models; faster response, longer life) | |
| Lens Material | High-strength polycarbonate (PC) – impact-resistant, UV-stabilized to prevent yellowing |
| Housing/Base Material | Flame-retardant engineering plastic (PA6+GF or PBT) – excellent insulation and vibration resistance |
| Optical Design | Precision reflector bowl + prismatic lens for wide beam angle and high luminous intensity |
| Protection Level | IP65 / IP66 (Dust-tight and protected against water jets from any direction) |
| Operating Temperature | -40°C to +85°C |
| Mounting Type | Bolt-on flange with standard hole pattern (typically 2–3 mounting points) |

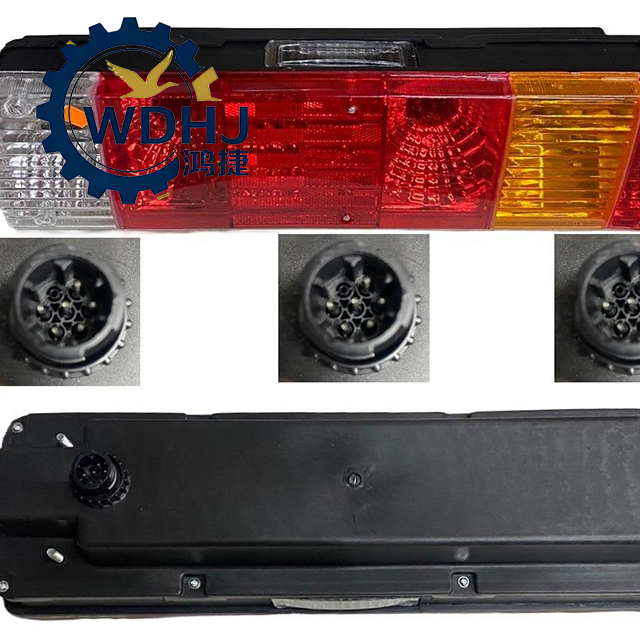

| Connector Type | Standard multi-pin plug (direct对接with vehicle harness; no splicing required) |
| Attribute | Description |
|---|---|
| Product Name | Right Rear Combination Lamp Assembly |
| Brand Compatibility | FAW Jiefang (primary); compatible with some Sinotruk HOWO, Foton, and semi-trailer applications |
| Functionality | Multi-function signal lighting: tail, brake, turn, reverse, reflector |
| Installation Side | Right-hand side (RHS) – typically indicated by even-number suffixes like "362" |
| Electrical System | 24V DC (Standard for Chinese heavy-duty diesel trucks) |
| Quality Standard | Meets ISO 9001; complies with national GB standards for automotive lamps |
