| Quantity: | |
|---|---|
3726040-367
FAW
| Attribute | Description |
|---|---|

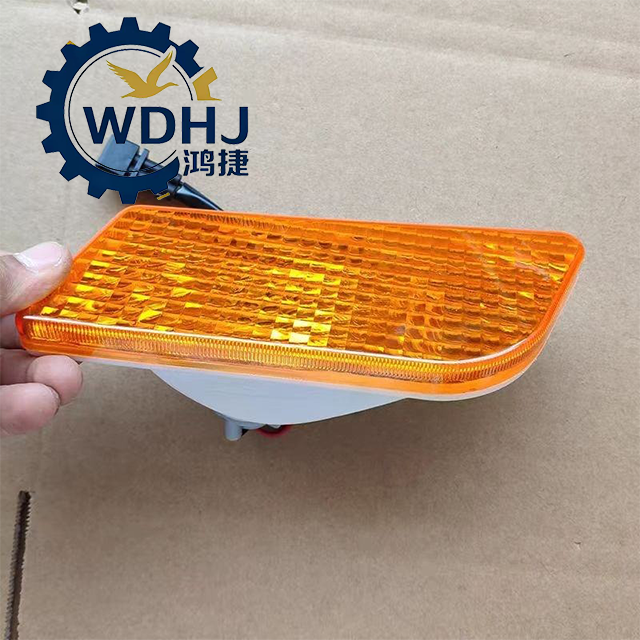

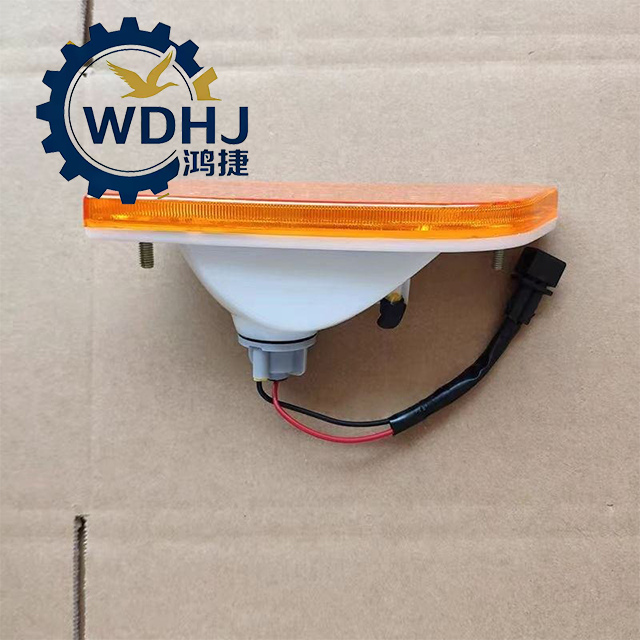

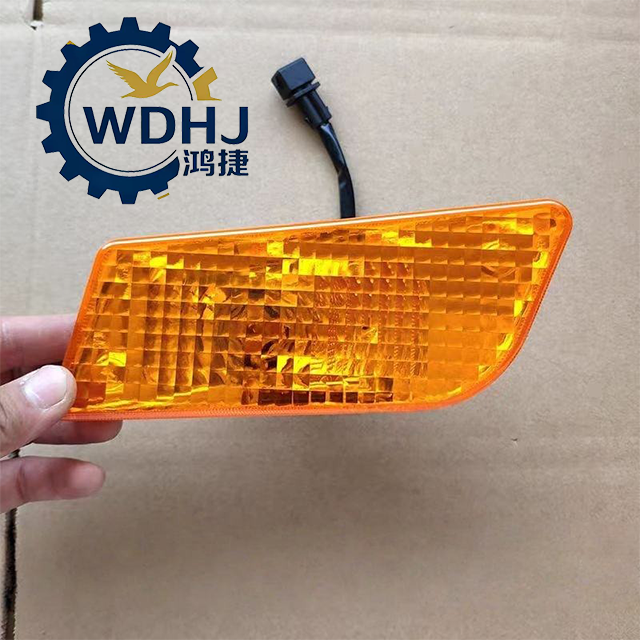

| Product Name | Right Side Turn Signal Lamp / Fender Indicator Assembly |
| Common Name | Wing Light, Side Marker Light, Fender Blinker |
| Brand Compatibility | FAW Jiefang (primary); may fit certain Sinotruk, Foton, or trailer applications with matching mounting |
| Function | Amber turn indication visible from side/rear angles |
| Installation Side | Right-hand side (RHS) – typically indicated by even-number suffixes like "367" |
| Electrical System | 24V DC (Standard for Chinese heavy-duty diesel trucks) |
| Quality Standard | Complies with GB/T standards; OEM-level build quality |
| Parameter | Specification |
|---|---|
| Part Number | 3726040-367 (Base number); variants include -C00, -A, -B |
| Voltage Rating | 24V DC |
| Light Color | Amber/Yellow (Standard SAE/ECE-compliant turn signal color) |
| Light Source Options | |
| • Halogen Version: T10 base bulb, 5W or 21W (common in older models) | |
| • LED Version: Integrated LED module (modern standard; faster response, longer life, lower power draw) | |
| Lens Material | UV-stabilized polycarbonate (PC) – high impact resistance, anti-yellowing under prolonged sun exposure |
| Housing/Base Material | Flame-retardant engineering plastic (PBT or PA6+GF) – excellent insulation and vibration tolerance |
| Protection Level | IP65 (Dust-tight and protected against water jets) |
| Operating Temperature | -40°C to +85°C |
| Mounting Type | Snap-in or bolt-on installation into pre-drilled hole on right front fender |

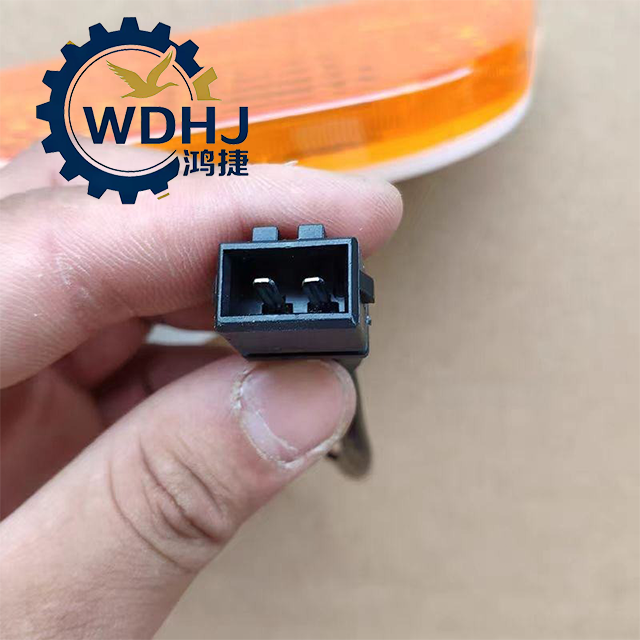

| Connector Type | Standard 1–2 pin plug (direct对接with side signal harness) |
| Flashing Behavior | Synchronized with front/rear turn signals via flasher relay (approx. 60–120 flashes per minute) |
| Attribute | Description |
|---|---|
| Product Name | Right Side Turn Signal Lamp / Fender Indicator Assembly |
| Common Name | Wing Light, Side Marker Light, Fender Blinker |
| Brand Compatibility | FAW Jiefang (primary); may fit certain Sinotruk, Foton, or trailer applications with matching mounting |
| Function | Amber turn indication visible from side/rear angles |
| Installation Side | Right-hand side (RHS) – typically indicated by even-number suffixes like "367" |
| Electrical System | 24V DC (Standard for Chinese heavy-duty diesel trucks) |
| Quality Standard | Complies with GB/T standards; OEM-level build quality |
| Parameter | Specification |
|---|---|
| Part Number | 3726040-367 (Base number); variants include -C00, -A, -B |
| Voltage Rating | 24V DC |
| Light Color | Amber/Yellow (Standard SAE/ECE-compliant turn signal color) |
| Light Source Options | |
| • Halogen Version: T10 base bulb, 5W or 21W (common in older models) | |
| • LED Version: Integrated LED module (modern standard; faster response, longer life, lower power draw) | |
| Lens Material | UV-stabilized polycarbonate (PC) – high impact resistance, anti-yellowing under prolonged sun exposure |
| Housing/Base Material | Flame-retardant engineering plastic (PBT or PA6+GF) – excellent insulation and vibration tolerance |
| Protection Level | IP65 (Dust-tight and protected against water jets) |
| Operating Temperature | -40°C to +85°C |
| Mounting Type | Snap-in or bolt-on installation into pre-drilled hole on right front fender |
| Connector Type | Standard 1–2 pin plug (direct对接with side signal harness) |
| Flashing Behavior | Synchronized with front/rear turn signals via flasher relay (approx. 60–120 flashes per minute) |
