| Quantity: | |
|---|---|
3730010-363
FAW
| Attribute | Description |
|---|---|

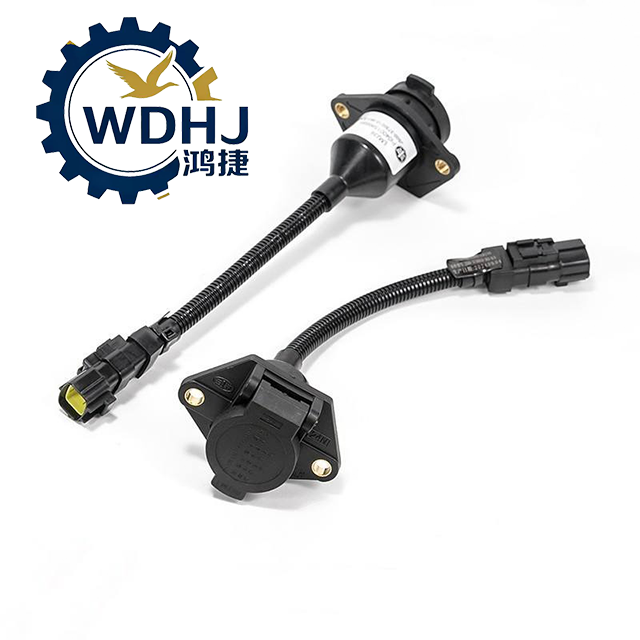

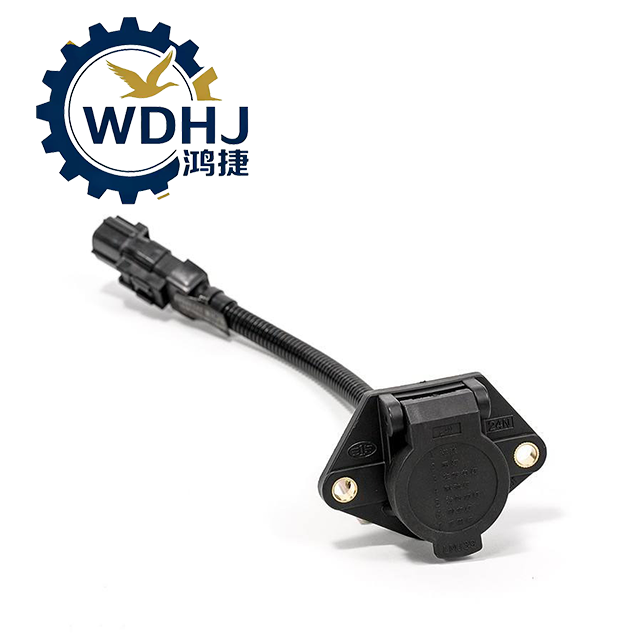

| Product Name | 7-Pin Trailer Power Socket / Plug Assembly |
| Brand Compatibility | FAW Jiefang (FAW Jiefang Automotive Co., Ltd.) |
| Primary Function | Electrical signal transmission from tractor to trailer (lighting, braking, turning, ABS) |
| Application Type | OEM Replacement, Aftermarket Repair |
| Mounting Location | Rear frame rail or fifth wheel area of tractor units |
| Electrical System | 24V DC (Standard for Chinese heavy-duty diesel trucks) |
| Quality Standard | Meets ISO 1185, GB/T 5054.1, and FAW OEM specifications |
Name1
Name2
| Parameter | Specification |
|---|---|
| Model Number | 3730010-363 / 3730010-363-B / 3730010-363-C |
| Voltage Rating | 24V DC |

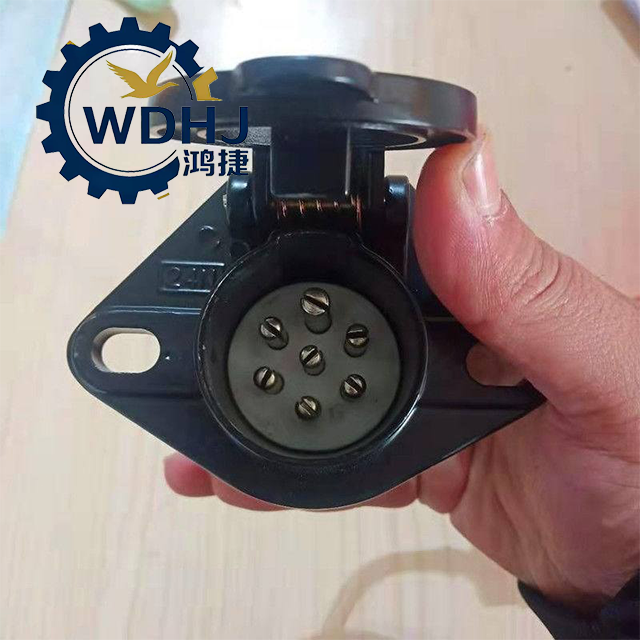

| Number of Pins | 7-Pin (7-Core) |
| Pin Configuration (Color-Coded) | |
| • Pin 1 (White): Ground / Earth (Negative) | |
| • Pin 2 (Black): Left Rear Side Marker & License Plate Light | |
| • Pin 3 (Yellow): Left Turn Signal | |
| • Pin 4 (Red): Brake Light (Stop Lamp) | |
| • Pin 5 (Green): Right Turn Signal | |
| • Pin 6 (Brown): Right Rear Side Marker & License Plate Light | |
| • Pin 7 (Blue): Auxiliary Power (e.g., Trailer ABS, monitoring systems) | |
| Contact Material | Copper alloy pins with nickel or silver plating for high conductivity and anti-oxidation |
| Housing Material | Die-cast aluminum alloy (standard) or high-strength flame-retardant plastic |
| Sealing Design | Integrated rubber gasket + spring-loaded protective cover |
| Protection Level | IP65 / IP67 (Dust-tight & protected against water jets and temporary immersion) |
| Current Capacity | Up to 15A–20A per pin (suitable for LED/halogen lighting clusters) |
| Operating Temperature | -40°C to +85°C |
| Corrosion Resistance | Oxidation-resistant surface treatment; withstands road salt, mud, and de-icing agents |
