WG9619470080
FAW
| Attribute | Description |
|---|---|

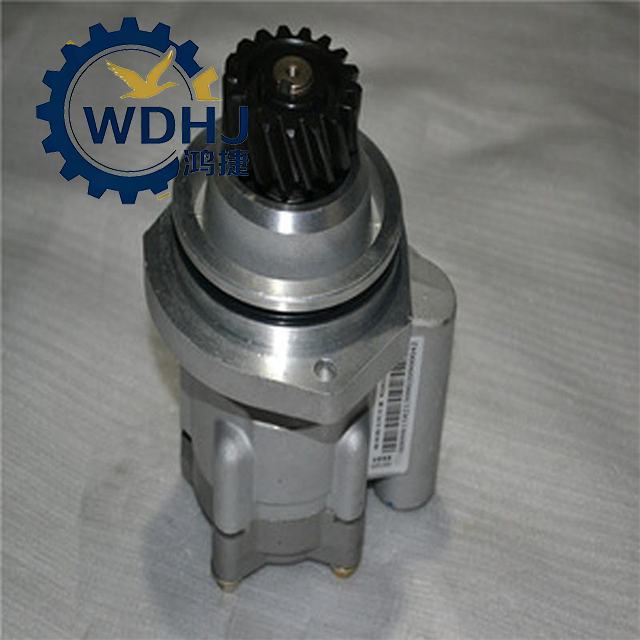

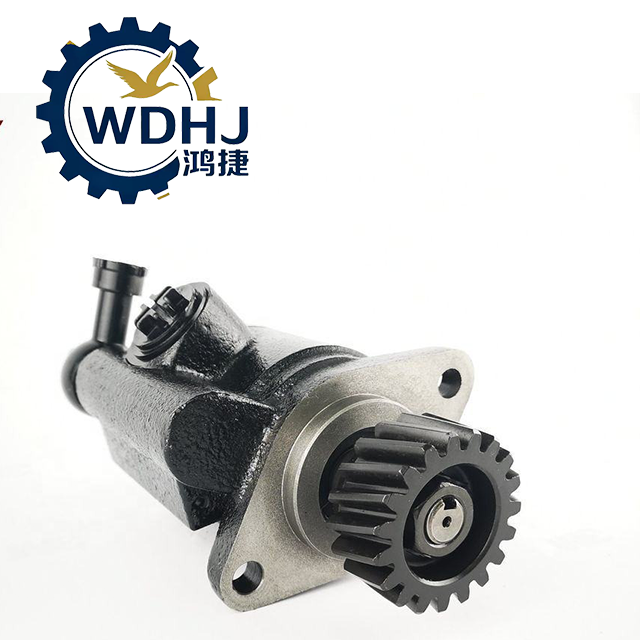

| Product Name | Power Steering Pump / Hydraulic Directional Assist Pump |
| Pump Type | Balanced vane pump (Single-stage) |
| Brand Compatibility | SINOTRUK (Primary), HOWO, Steyr, Shacman F-series, FAW, Foton Auman (with matching gear interface) |
| Function | Supplies pressurized hydraulic fluid to the steering gear (e.g., recirculating ball or rack & pinion type) |
| Drive Mechanism | Belt-driven via engine crankshaft pulley |
| Quality Standard | OEM specification compliant; meets GB/T and internal SINOTRUK engineering standards |
| Parameter | Specification |
|---|---|
| Part Number | WG9619470080 (Base model); variants include WG9619470080/4 |
| Displacement (Nominal) | 18.0 ml/rev (some variants: 16.0 ml/rev) |
| Maximum Pressure | 15.0 MPa (~150 bar / 2175 psi) |
| Flow Rate | 16.0 L/min (at rated speed) |
| Operating Speed Range | 500 – 3600 rpm |
| Rotation Direction | Left-hand rotation (LH) – when viewed from drive end |
| Drive Gear | 17-tooth straight gear (17T) – mates with PTO or intermediate shaft |
| Inlet Port (Suction) | M26 × 1.5 thread |
| Outlet Port (Pressure) | M18 × 1.5 thread |
| Mounting Style | Bracket-mounted with adjustable tension for belt drive |
| Weight | Approx. 5.4 kg (11.9 lbs) |
| Housing Material | Ductile iron or high-strength cast steel – excellent wear resistance and structural rigidity |
| Internal Components | Hardened vanes, dual-metal side plates, precision-ground rotor, reinforced seals |
| Noise Level | Optimized chamber design reduces operational noise (<78 dB at full load) |
