| Quantity: | |
|---|---|
5002075AA01
FAW
| Parameter | Specification |
|---|---|
| Part Number | 5002075AA01 |

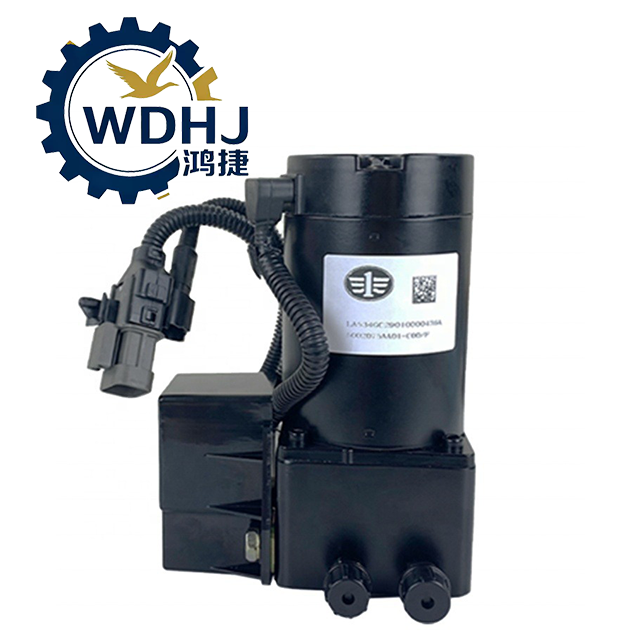

| Product Name | Electric Cab Tilt/Lifting Pump Assembly |
| Operating Voltage | 24V DC (directly powered from vehicle dual-battery system) |
| Motor Power | 300W – 500W |
| System Pressure | 30 – 45 MPa (high-pressure hydraulic circuit) |
| Hydraulic Fluid | Low-pour-point anti-wear hydraulic oil (e.g., HM 32# or aviation-grade low-temp oil) |
| Reservoir Capacity | 0.5 – 0.8 liters (integrated transparent or metal tank with level indicator) |
| Main Components | - 24V DC brushed motor - High-pressure gear pump - Electromagnetic directional control valve - Manual override lever socket - Integrated oil reservoir & filter |
| Lift Time (Typical) | 40–60 seconds to full tilt (under normal battery condition) |
| Housing Material | Cast iron or high-strength aluminum alloy (pump body); engineering plastic (reservoir) |
| Weight | Approx. 3.5 – 5.0 kg |
