3757010-2000-C00
FAW
| Attribute | Description |
|---|---|

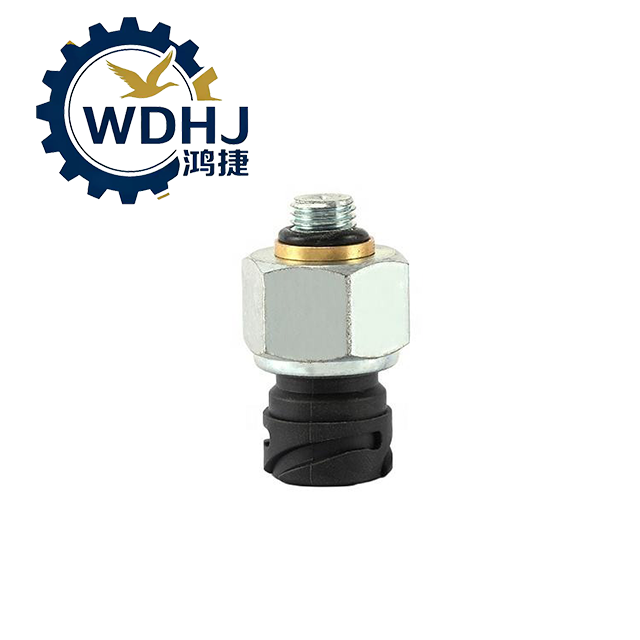

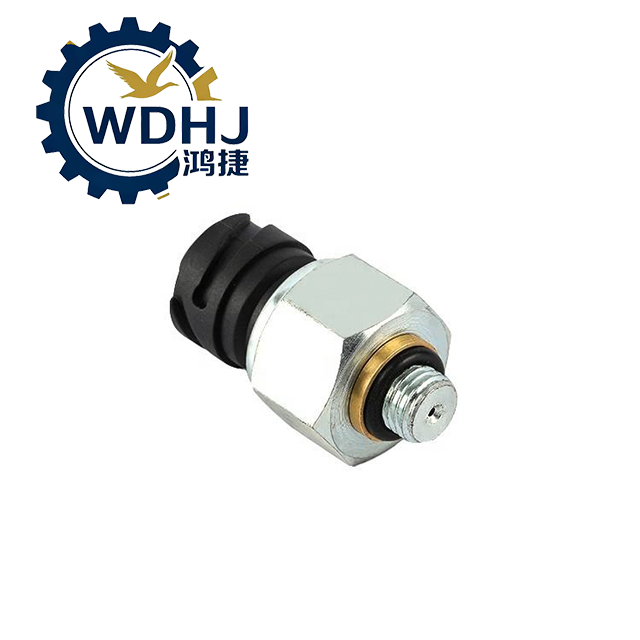

| Product Name | Air Pressure Sensor / Pressure Transducer Assembly |
| Brand Compatibility | FAW Jiefang (FAW Jiefang Automotive Co., Ltd.) |
| Primary Function | Monitors air brake system pressure; provides analog signal output and low-pressure alarm trigger |
| Application Type | OEM Replacement, Aftermarket Repair |
| System Integration | Brake Monitoring System, Instrument Panel Warning System |
| Electrical System | 24V DC (Standard for Chinese heavy-duty diesel trucks) |
| Quality Standard | Meets FAW OEM specifications; compatible with pneumatic braking systems on modern commercial vehicles |
| Parameter | Specification |
|---|---|
| Model Number | 3757010-2000-C00 |
| Working Voltage | 24V DC (or regulated 5V reference from ECU/instrument cluster) |
| Measurement Range | 0 – 1.2 MPa (0 – 12 bar) |
| Accuracy | High linearity ±2% FS (Full Scale) |
| Output Signal | Linear voltage output (typically 0.5V–4.5V proportional to pressure) |
| Thread Connection | M16 × 1.5 internal thread with sealing washer (standard metric fine thread) |
| Connector Type | Dedicated 3-pin plug |
| • Pin 1: Power Supply (V+) | |
| • Pin 2: Analog Signal Output | |
| • Pin 3: Ground (GND / Earth) | |
| Sensing Element | Ceramic pressure sensing diaphragm (high durability, oil/water resistant) |
| Housing Material | Metal sensor body + high-temperature resistant engineering plastic housing |
| Protection Rating | IP67 (Dust-tight and protected against temporary immersion) |
| Operating Temperature | -40°C to +105°C |
| Vibration Resistance | Designed to withstand long-term chassis vibration (meets GB/T 28046/ISO 16750 standards) |
| Environmental Durability | Resistant to road salt, moisture, diesel fumes, and thermal cycling |
