3704010-D816
FAW
| Attribute | Specification |
|---|---|

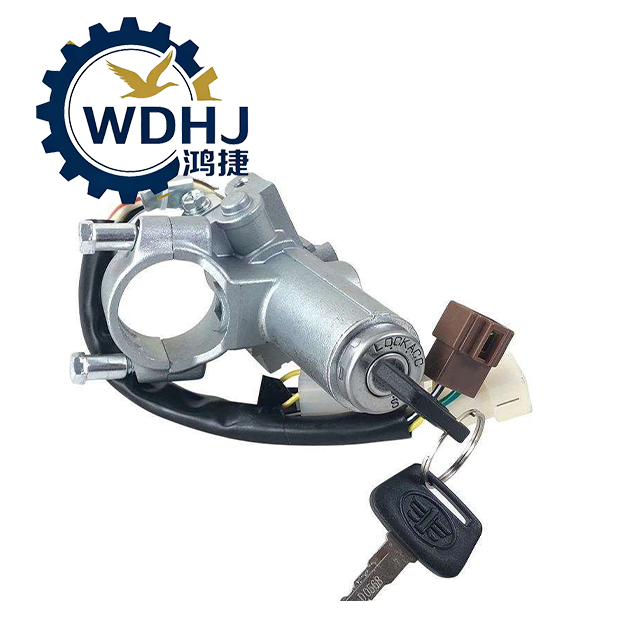

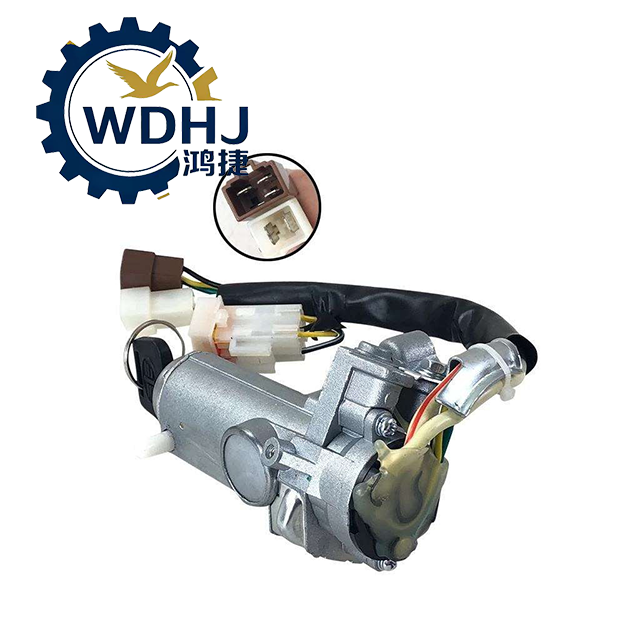

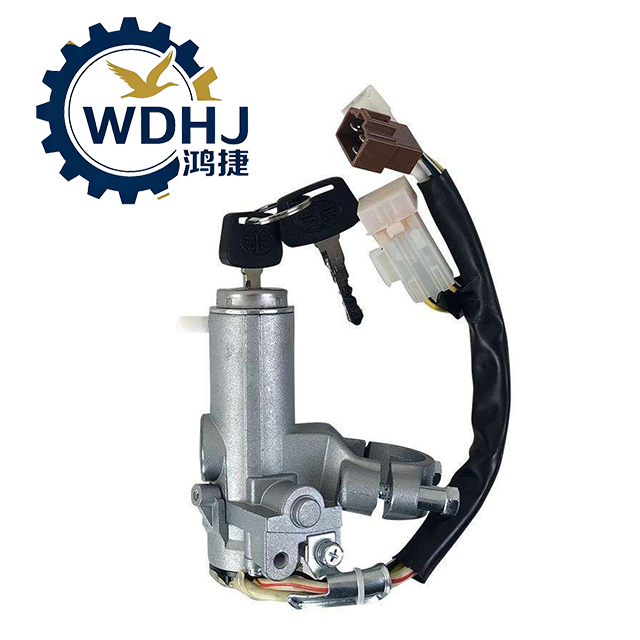

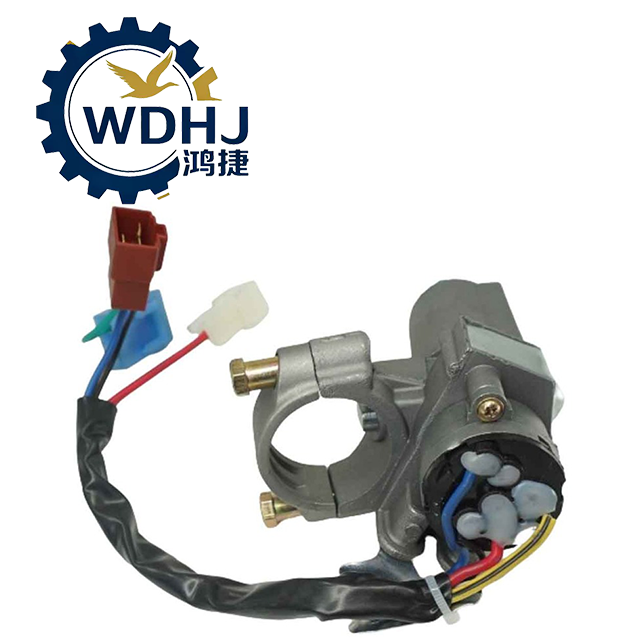

| Product Name | Ignition Switch Assembly / Starter Switch |
| Part Number | 3704010-D816 |
| Alternative Numbers | 3704010-A01, 3704010-B110, 3704010-61B, 3704010-6K9, 3704010-8EB1 |
| Voltage Rating | 24V DC (standard for dual-battery heavy truck systems) |
| Key Function | Mechanical lock + Electrical circuit control |
| Switch Positions | LOCK / ACC / ON(RUN) / START (4-position design) |
| Lock Body Material | High-Strength Zinc Alloy or Stainless Steel (anti-drill, anti-pick) |
| Contact Material | Silver-Copper Alloy (high conductivity, arc-resistant) |
| Connector Base | Heat-Resistant, High-Insulation Engineering Plastic |
| Vehicle Application | FAW Jiefang J5P (New Dawei), J5M, J6P, J6L, J6H, JH6 Series |
| Engine Compatibility | Xichai (CA6DL/CA6DM), Dachai engines with 24V systems |
| Operating Temperature | -30°C to +85°C (-22°F to 185°F) |
| Weight | Approx. 0.4 – 0.6 kg |
| Parameter | Value |
|---|---|
| Electrical Load Capacity | Supports up to 15–20A continuous load; peak current during starter engagement |
| Position Detents | Clear tactile feedback at each position (LOCK, ACC, ON, START) |
| START Position Return | Spring-loaded auto-return to ON after release |
| Mechanical Life | ≥ 50,000 rotation cycles |
| Steering Lock | Integrated mechanical interlock engages when key is removed in LOCK position |
| Terminal Configuration | Multi-pin plug-in connector (direct harness mating) |
| EMI Protection | Low-voltage fluctuation output prevents CAN bus interference |
| Certification | CE, ISO9001, ROHS compliant manufacturing standards |
