| Quantity: | |
|---|---|
612600090506
FAW
| Attribute | Specification |
|---|---|

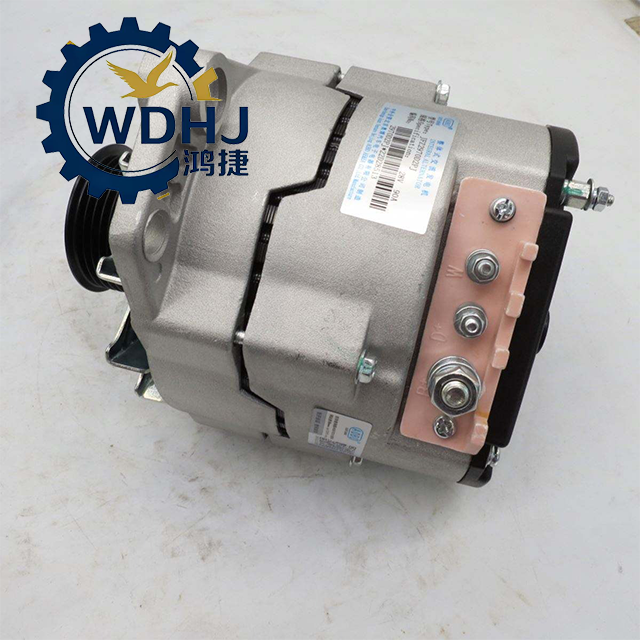

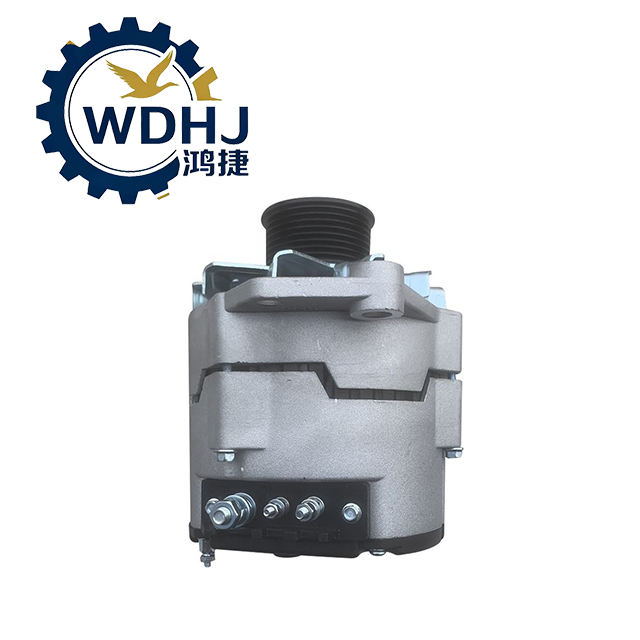

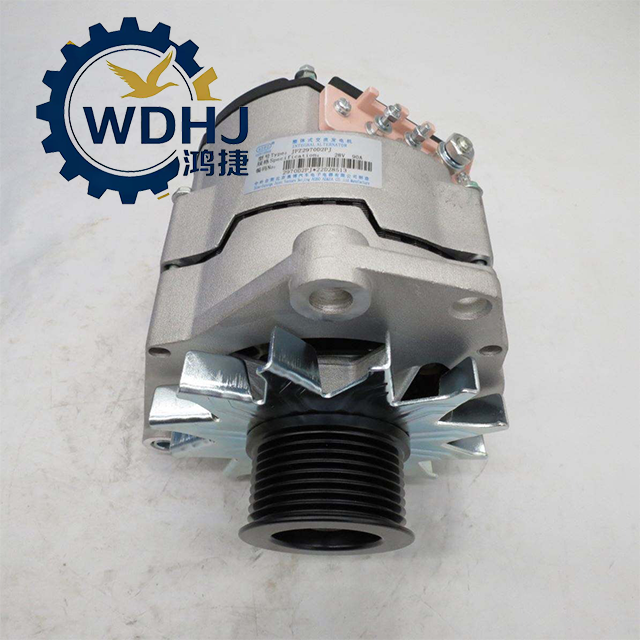

| Product Name | Alternator Assembly / AC Generator |
| Part Number | 612600090506 |
| Alternative Numbers | 612600090352, 612600090249, VG1560090012, D11-102-13+A, AVE2716D, ATG20887 |
| Voltage Output | 24V / 28V DC (regulated) |
| Rated Current | 70A (up to 80A in enhanced versions; some models support 120–150A variants) |
| Rated Power | ~2.0 kW |
| Construction Type | Three-phase AC generator, full-wave rectified to DC output |
| Cooling Method | Air-cooled (external fan and ventilation slots) |
| Regulator Type | Internal IC Voltage Regulator (with over-voltage protection and self-excitation) |
| Pulley Type | 8PK Multi-Ribbed Belt Pulley (with dust cover) |
| Weight | 6.5 kg – 7.5 kg |
| Mounting Style | Bracket-mounted with adjustable tensioning arm |
| Primary Application | Weichai-powered commercial vehicles and heavy equipment |
| Certification | Meets GB/T, ISO 10605 (ESD), EMC standards |
| Parameter | Value |
|---|---|
| Nominal Voltage | 24V (system compatible); regulated output: 27.8V – 28.5V |
| Idle Charging Performance | Capable of generating usable current at engine idle (~700–900 RPM) |
| Rated Speed | 6,000 rpm |
| Maximum Continuous Speed | 12,000 – 15,000 rpm (bearings rated accordingly) |
| Efficiency | ≥ 65% (optimized for high-load scenarios) |
| Bearing Type | High-Temperature Double-Sealed Ball Bearings (lubricated for life) |
| Winding Insulation Class | Class H (180°C rated enamel wire) |
| Environmental Resistance | -40°C to +180°C operational temperature range |
| EMC Compliance | Electromagnetic interference shielded to prevent CAN bus or GPS/Beidou signal disruption |
| Output Terminal | B+ (Main output stud), D+ (excitation/sense), Ground |
