3735010C61B/A
FAW
| Attribute | Specification |
|---|---|

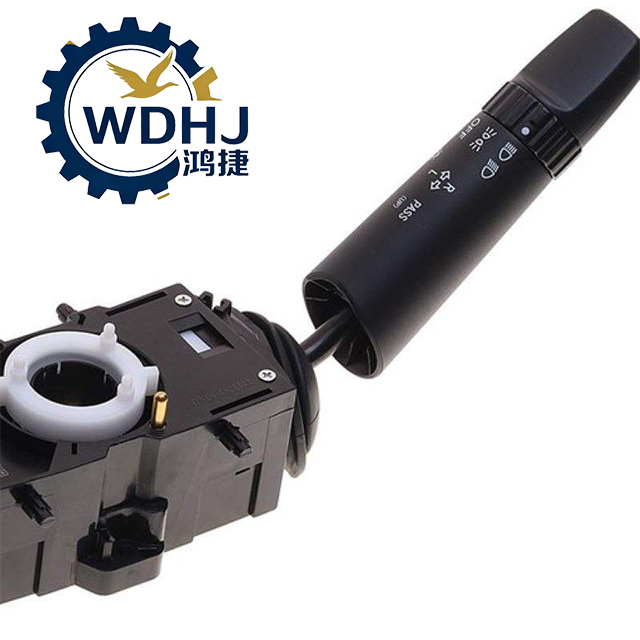

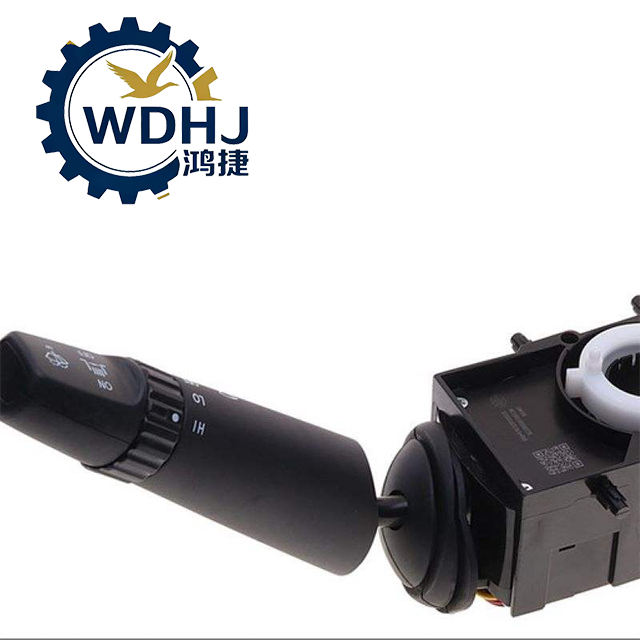

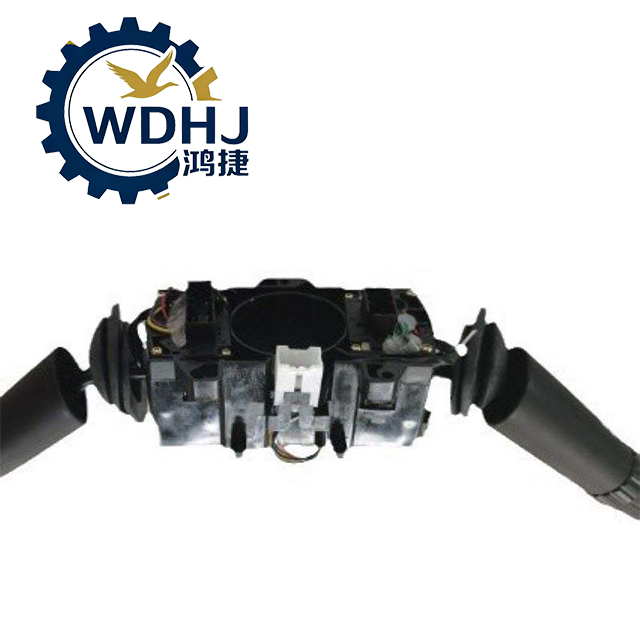

| Product Name | Combination Switch Assembly (Lighting & Wiper Control) |
| Part Number | 3735010-C61B/A (also written as 3735010C61B/A) |
| Alternative Numbers | 3735010-D160, 3735010-B110, 3735010-AA01 |
| Voltage Rating | 24V DC (standard for heavy-duty dual-battery systems) |
| Switch Type | Dual-paddle design (left + right lever) |
| Main Functions | |
| • Left Lever: Turn Signals, High/Low Beam Toggle, Flash-to-Pass | |
| • Right Lever: Wiper Speed Control, Washer Spray | |
| • Rotary Knob: Parking Light / Headlight On-Off | |
| Material – Housing | High-Strength Flame-Retardant ABS/PC Engineering Plastic |
| Contact Material | Silver-plated Copper Alloy (anti-oxidation, arc-resistant) |
| Mounting Location | Steering column behind the steering wheel |
| Connector Type | Multi-pin integrated plug-in harness connector |
| Vehicle Application | FAW Jiefang J6P, J6L, JH6, J7 Series, Tiger V/VH (high-spec variants) |
| Compliance Standards | GB/T, ISO 10605 (ESD protection), ROHS |
| Parameter | Value |
|---|---|
| Operating Voltage | 24V DC nominal (compatible with 18–32V transient conditions) |
| Current Load Capacity | Up to 10A per circuit (supports halogen and LED lighting loads) |
| Turn Signal Auto-Return | Yes – automatically cancels after turning via cam mechanism |
| Wiper Control Modes | Intermittent / Low Speed / High Speed |
| Mechanical Life | ≥ 50,000 actuation cycles |
| Environmental Resistance | Dust-proof, splash-resistant (IP54 level) |
| Temperature Range | -40°C to +85°C (-40°F to 185°F) |
| Weight | Approx. 0.45 – 0.6 kg |
| Installation Interface | Standard steering column mounting bracket with locking clip |
