Faw Jiefang J6 Truck Spare Parts 3711020A487 Headlamp Assembly Electronics And Electrical System

Faw Jiefang J6 Truck Spare Parts 3711020A487 Headlamp Assembly Electronics And Electrical System

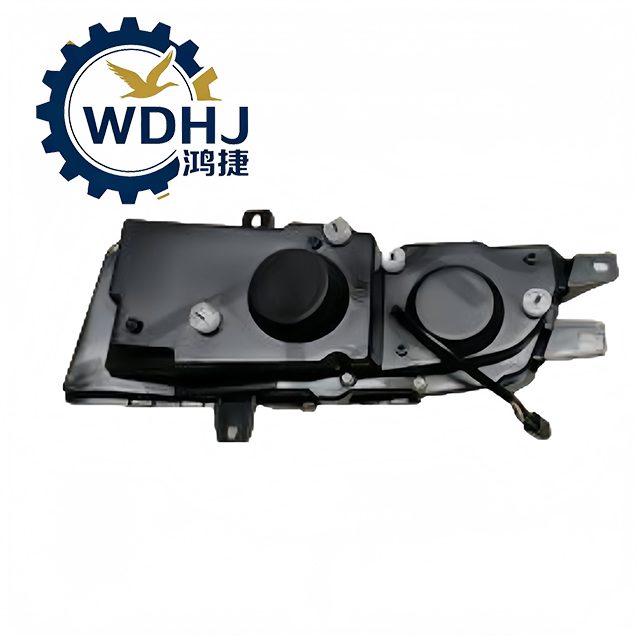

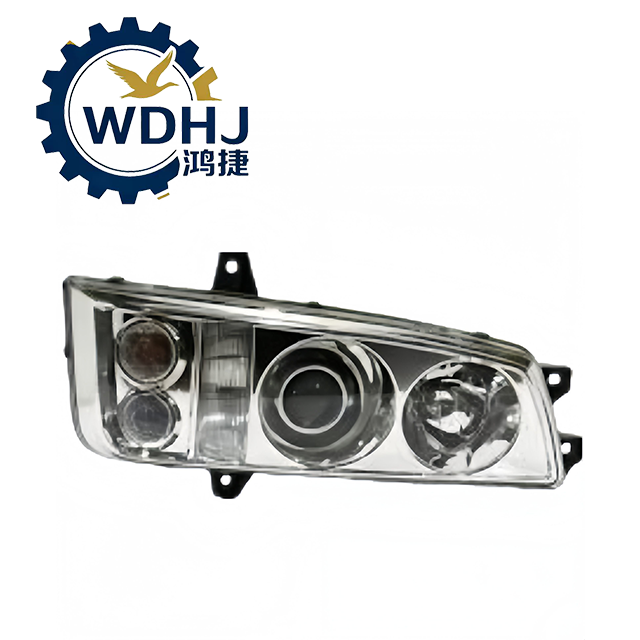

The 3711020A487 Right Front Headlamp Assembly is an OEM-standard combination headlight unit designed specifically for FAW Jiefang J5 (Hanwei/Aowei) and J6 series heavy-duty trucks. As the right-hand side (RHS) lighting module, it integrates low beam, high beam, and front turn signal into a single durable housing — providing essential visibility and signaling functions during nighttime operation, adverse weather, and highway driving.

Manufactured to meet strict automotive lighting standards, this headlamp ensures reliable performance under extreme conditions such as vibration, dust, moisture, and wide temperature fluctuations. Built with high-quality polycarbonate lens and reflective parabolic reflectors, it delivers bright, focused illumination while maintaining excellent resistance to fading, fogging, and UV degradation.

Quantity:
Availability:





Inquire Add to Basket

Model:
3711020A487
Brand:
FAW

Product Description

Attribute	Specification
Product Name	Right Front Headlamp Assembly / Headlight Unit
Part Number	3711020A487
Side Position	Right-Hand Side (RHS)
Vehicle Application	FAW Jiefang J5 Series (Hanwei, Aowei), J6P, J6M, J6L
Lighting Functions	Low Beam + High Beam + Front Turn Signal (Amber)
Voltage System	24V DC (standard for heavy-duty commercial vehicles)
Rated Power	Approx. 72W (combined output)
Bulb Type	Standard Halogen Bulbs: H11 (low/high beam), PY21W or H7 (turn signal) – verify socket type upon installation
Housing Material	Impact-Resistant ABS Plastic
Lens Material	UV-Stabilized Polycarbonate (anti-yellowing, anti-fog coating)
Sealing Level	IP65-rated (dust-tight and protected against water jets)
Mounting Style	Bolt-on flange with rubber gasket for vibration damping
Weight	Approx. 1.1 – 1.4 kg

大灯-2

Parameter	Value
Operating Voltage	24V DC (compatible with dual-battery truck systems)
Beam Pattern	Asymmetric cut-off (ECE R112 compliant for glare control)
Optical Design	Reflector-type housing with separate chambers for each function
Turn Signal Color	Amber (meets GB and ECE safety standards)
Environmental Resistance	Withstands -40°C to +90°C (-40°F to 194°F)
Vibration Compliance	Meets automotive-grade durability testing (ISO 16750)
Installation Interface	Standard multi-pin connector (typically 3–5 pin)
Compliance Standards	GB/T, ECE R112, ROHS
