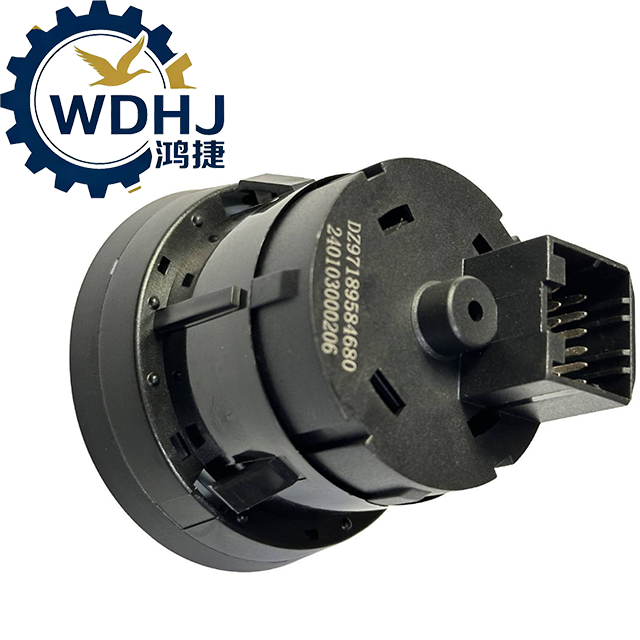

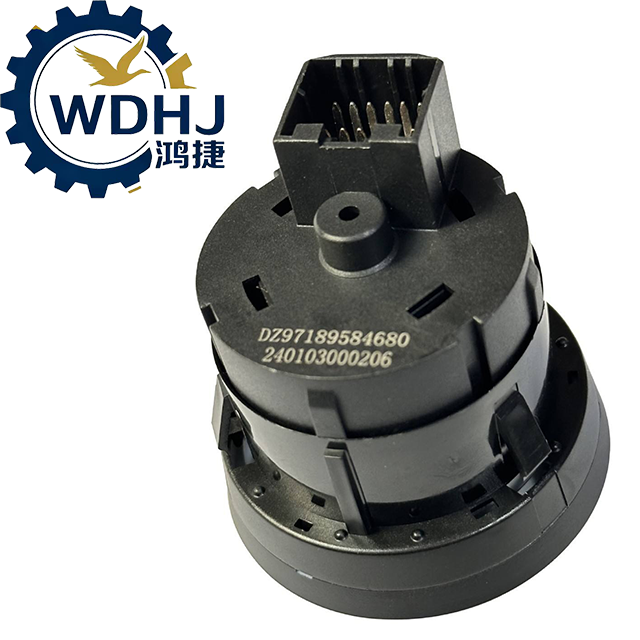

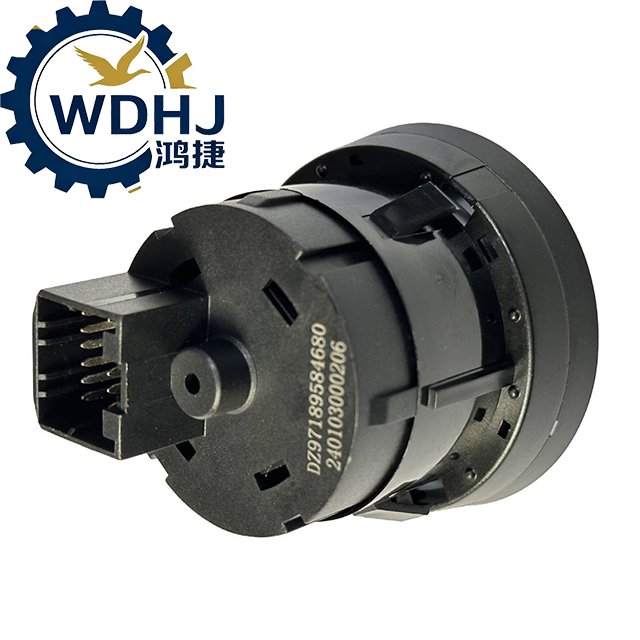

High Quality Power Door Control And Combination Switch Model DZ97189584680 for Shacman Delong X3000 Replacementor

High Quality Power Door Control And Combination Switch Model DZ97189584680 for Shacman Delong X3000 Replacementor

Product Specification: Electric Door Control Switch (Power Door Switch Module)
The Electric Door Control Switch is a key component of the vehicle’s body control system, typically installed on the driver’s or front passenger’s door panel. It allows the driver or occupant to control power windows, central door locks, and sometimes electric side mirrors — providing convenience, safety, and modern functionality in commercial and passenger vehicles.

This switch module serves as the primary human-machine interface for managing door-mounted electrical systems

Quantity:
Availability:





Inquire Add to Basket

Model:
DZ97189584680
Brand:
Shacman

Product Description

Attribute	Details
Part Name	Electric Door Control Switch / Power Window & Lock Switch Assembly / Door Control Panel
Common OEM Numbers	- WG1664331070 (Sinotruk HOWO) - DZ9L149584602 (Shacman left-side) - DZ97189584680 (Shacman variant) - 82.25330.0029 (FAW Jiefang)
Brand/Manufacturer	Compatible with SINOTRUK, SHACMAN, FAW, Dongfeng, and other Chinese OEMs
Type	Original Equipment Replacement (OER), Aftermarket High-Quality Equivalent
Voltage Rating	24V DC (for heavy-duty trucks); 12V DC (light-duty or export models)
Operating Current	5–30A per circuit (depending on motor load)
Housing Material	High-strength engineering plastic (UV-resistant, impact-proof)
Internal Components	Tactile switches, rocker levers, PCB board, copper contacts, fuses (in some models)
Functions Supported	- Power window up/down (single or multi-window) - Central locking/unlocking - Mirror adjustment (up/down/left/right) - Mirror folding/unfolding- Child lock disable (on driver’s side)
Mounting Location	Interior of driver’s or passenger’s front door trim panel
Connector Type	Multi-pin waterproof plug (typically 6–14 pins)
Sealing Level	IP54 rated (protected against dust and water splashes)
Origin	China (manufactured for domestic and export markets)
Warranty	Typically 6 to 12 months depending on supplier

Name1

Name2

Installation & Usage Guidelines

Verify Compatibility Before Purchase
Confirm shape, button layout, mounting style, and connector pinout match your original unit.
Disconnect Battery Before Work
Always disconnect the negative terminal of the battery before removal to prevent short circuits or ECU errors.
Professional Installation Recommended
Requires careful disassembly of door trim panels. Risk of damaging clips, speakers, or moisture barriers.
Handle with Care – Sensitive Electronics
Avoid static discharge, drops, or moisture exposure. Do not touch internal PCB directly.
Ensure Proper Sealing & Waterproofing
After installation, restore the door’s internal vapor barrier film to prevent water ingress.
Avoid Liquid Exposure During Cleaning
Clean only with dry or slightly damp cloth. Never spray cleaners directly onto the switch.
Test All Functions After Installation
Verify:

All windows move smoothly
Lock/unlock works across all doors
Mirrors adjust and fold correctly
No unusual noises or delays

Do Not Modify Internally
The unit is sealed and not user-serviceable. Opening voids warranty and risks permanent failure.
Check for Corrosion or Moisture
If replacing due to failure, inspect for signs of previous leaks or condensation inside the door.
Use Genuine or High-Quality Replacements Only
Avoid counterfeit modules made with brittle plastics or poor contact materials — they degrade quickly and compromise safety.
