YZ160082210086
Shacman
| Attribute | Details |
|---|---|

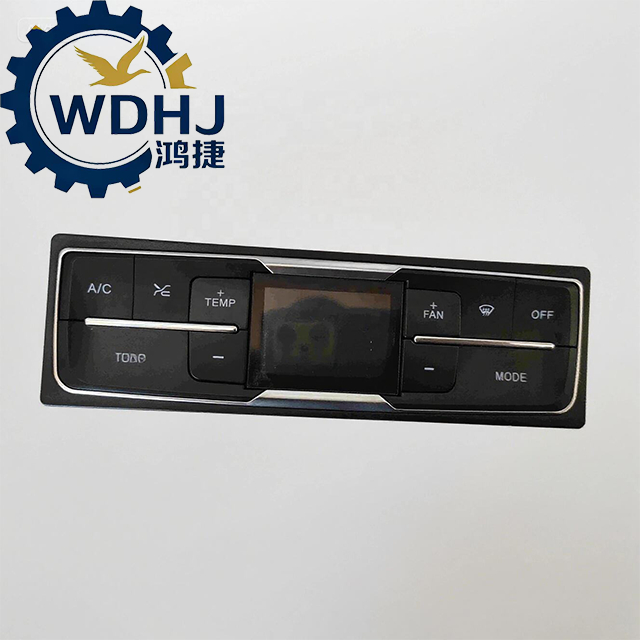

| Part Name | Cab Electrical Control Panel Assembly / Central Control Panel / Multi-Function Switch Panel |
| OEM Part Number | YZ160082210086 |
| Alternate Numbers | AZ160082210086 (Sinotruk internal marking or alternative supplier label) |
| Brand/Manufacturer | Compatible with SINOTRUK HOWO, SHACMAN (Shaanxi), FAW Jiefang — commonly used across platforms |
| Type | Original Equipment Replacement (OER) / High-Quality Aftermarket Equivalent |
| Voltage Rating | 24V DC (Standard truck electrical system) |
| Operating Current | Varies by circuit (typically 5–15A per switch) |
| Housing Material | High-strength engineering plastic (heat-resistant, impact-resistant) |
| Internal Components | Tactile switches, rocker switches, LED indicators, conductive traces, connectors |
| Connector Type | Multi-pin waterproof connector(s), compatible with standard Chinese heavy-truck harnesses |
| Mounting Location | Dashboard or center console within the driver’s cab |
| Origin | China (manufactured for multiple OEMs) |
| Warranty | Typically 6 to 12 months depending on supplier |
Name1
Name2
Verify Compatibility Before Purchase
Confirm that the button layout, size, and connector type match your existing panel. Differences exist even between model years.
Disconnect Battery Before Installation
Always disconnect the negative terminal of the 24V battery before removing or installing the panel to prevent:
Short circuits
Damage to ECUs or fuse boxes
Accidental airbag triggering (if near steering column)
Professional Installation Recommended
Involves disassembling the dashboard or console. Requires knowledge of wiring diagrams and clip-based fasteners.
Handle Connectors Carefully
Ensure multi-pin plugs are fully seated and locked. Loose connections can cause intermittent failures or signal loss.
Avoid Liquid Exposure
Do not clean with excessive water or liquid sprays. Use a dry or slightly damp cloth to prevent moisture from entering internal circuits.
Do Not Force Buttons or Levers
Excessive pressure can break internal springs or solder joints. Operate gently for long-term reliability.
Test All Functions After Installation
Perform full functional check:
HVAC controls
Window operation (if applicable)
Interior lighting
Radio/audio functions
Any auxiliary outputs
Use Genuine or High-Quality Replacements Only
Avoid low-cost clones made with brittle plastics or poor contact materials — they often fail prematurely.
Keep Panel Clean and Dry
Dust and spilled liquids can accumulate under buttons, causing sticking or short circuits over time.
Do Not Disassemble Internally
The unit is sealed and not user-serviceable. Opening voids warranty and risks permanent damage.
