Dongfeng Truck Fuel Filter Assembly 1711030-TV101/2 New Condition Engine Parts Including 1711030-TV101 1711030-TV102 Filters

Dongfeng Truck Fuel Filter Assembly 1711030-TV101/2 New Condition Engine Parts Including 1711030-TV101 1711030-TV102 Filters

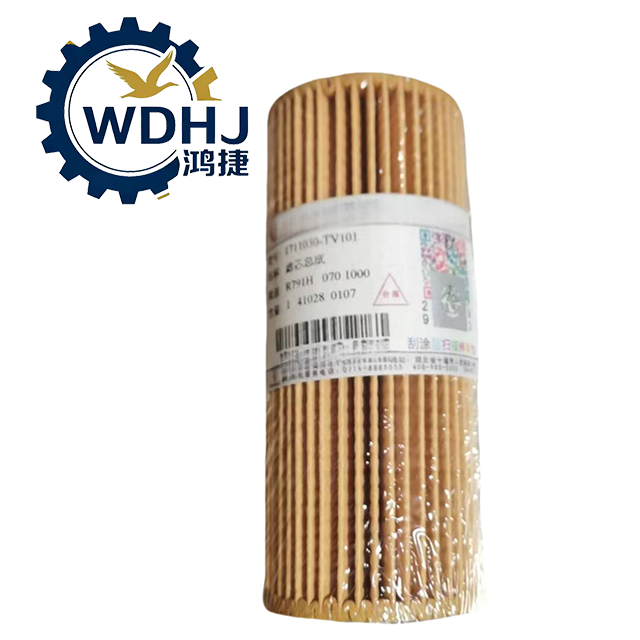

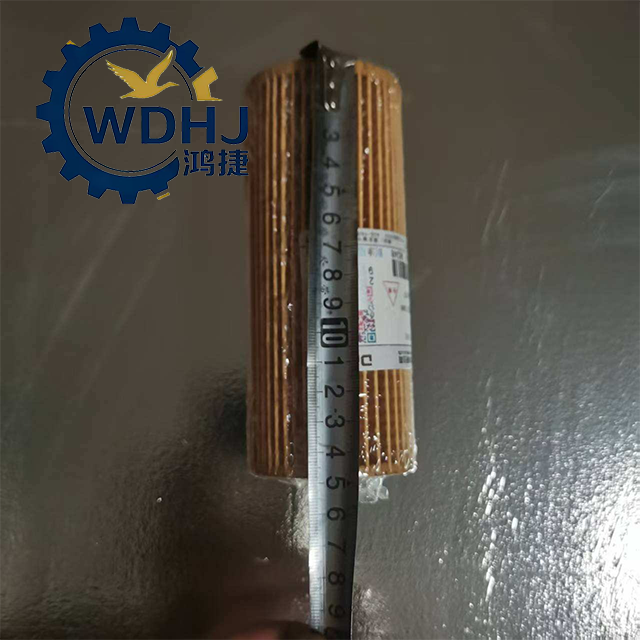

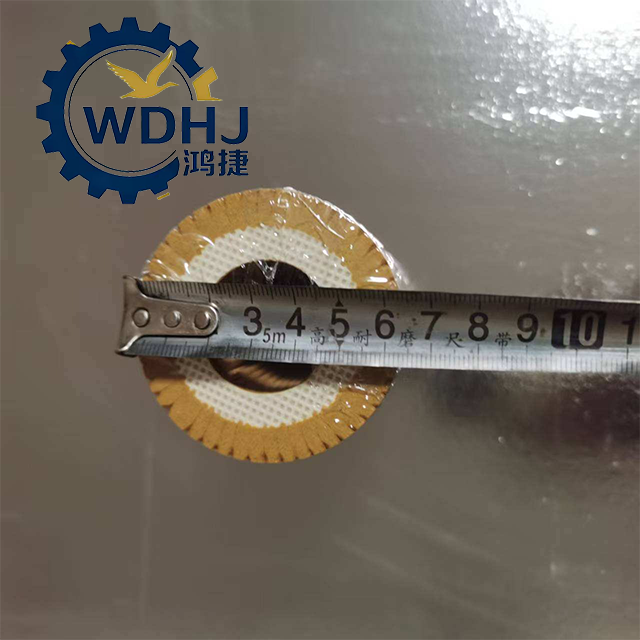

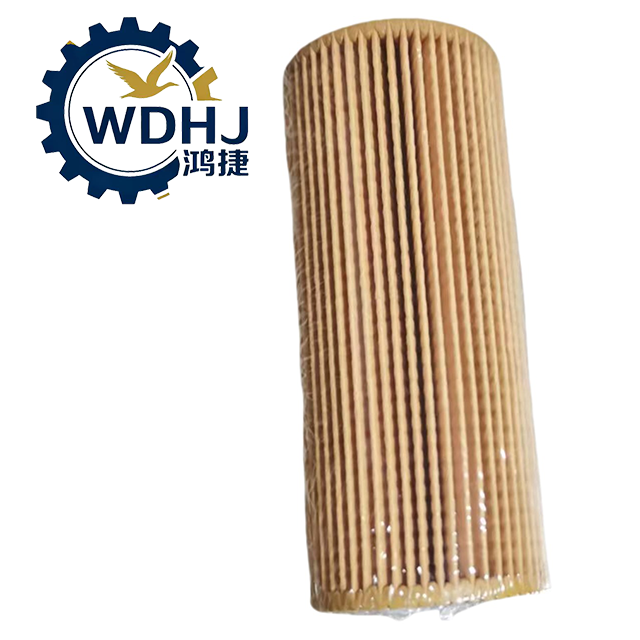

The 1711030-TV101 Transmission Oil Filter (Transmission Filter Element) is a high-performance, spin-on type filter specifically engineered for heavy-duty commercial vehicles. Designed primarily for 14-speed transmissions used in Dongfeng Tianlong heavy-duty trucks, this filter ensures optimal protection and longevity of transmission systems by effectively removing metal particles, sealant residues, and other contaminants from automatic transmission fluid (ATF).

Due to technological collaboration between Dongfeng and Volvo, this filter is also compatible with certain Volvo 14-speed transmission models, making it a widely used component in the commercial vehicle aftermarket sector. It meets or exceeds original equipment (OE) standards and is commonly sourced through industrial suppliers and major e-commerce platforms such as Taobao (retail) and Alibaba (wholesale/export).

Quantity:
Availability:





Inquire Add to Basket

Model:
1711030-TV101
Brand:
Dongfeng

Product Description

Attribute	Description
Product Type	Spin-On Transmission Oil Filter (Replaceable Cartridge Style)
Primary Function	Filters metallic debris, sludge, and impurities from transmission oil to protect precision valve bodies, gears, and internal components
Housing Material	High-strength metal shell with corrosion-resistant coating
Filter Media	Premium synthetic fiber or high-efficiency cellulose blend for superior dirt retention
Sealing Material	Nitrile rubber (NBR) O-ring for reliable sealing under high pressure and temperature
Mounting Style	Threaded base with integrated gasket; direct screw-on installation
Application	Heavy-duty commercial trucks, especially those equipped with 14-speed manual/automated transmissions

Parameter	Specification
Filtration Precision	Meets OE specifications; typically 10–25 microns beta ratio (βx ≥ 75)
Working Pressure	Rated for continuous operation under standard transmission system pressures (up to 8–12 bar typical)
Burst Pressure	≥ 30 bar (ensures safety under extreme conditions)
Operating Temperature Range	-40°C to +130°C (-40°F to +266°F)
Flow Rate	Optimized for 14-speed transmission hydraulic circuits
Drain Back Valve	Not applicable (typical for transmission filters)
Anti-Drain Back Check Valve	No (standard design for transmission applications)
By-Pass Valve	Integrated pressure relief valve to prevent flow blockage during cold starts or clogging
