| Quantity: | |
|---|---|

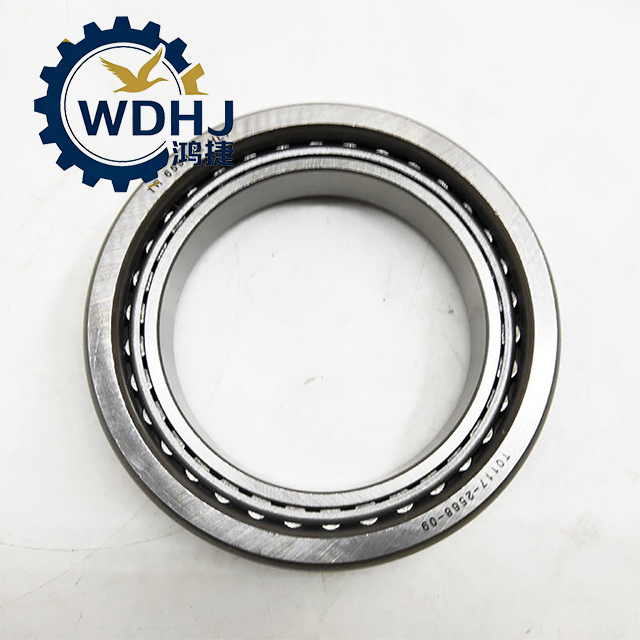

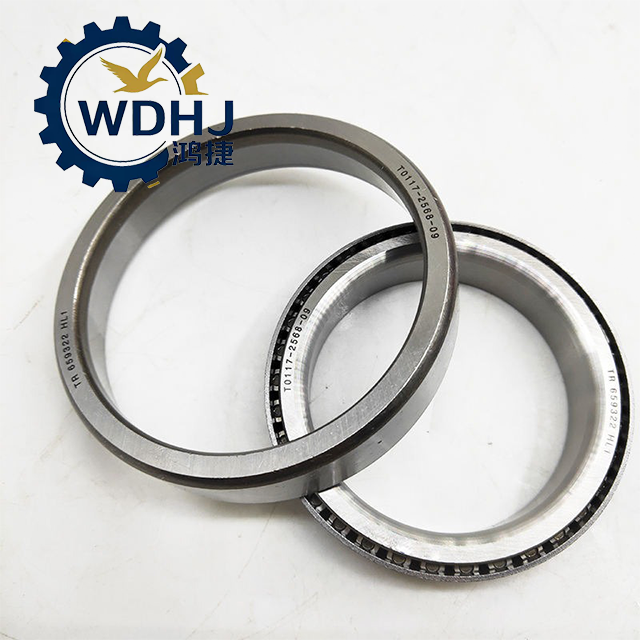

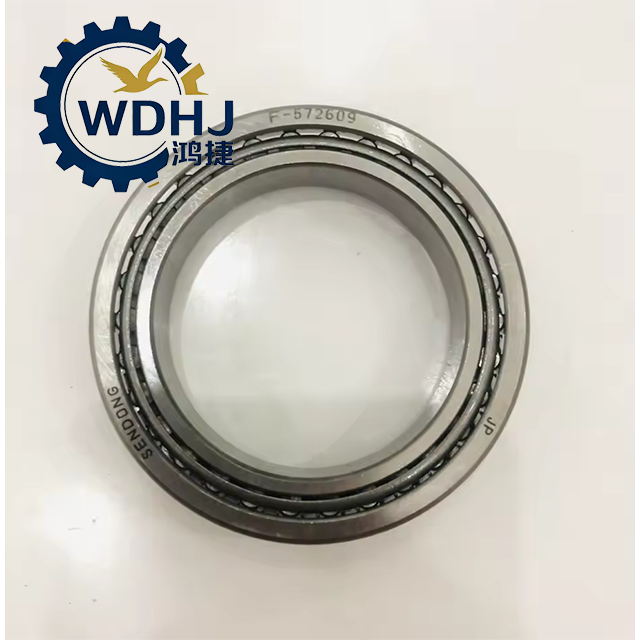

F-572609
Trailer Parts
| Attribute | Specification |
|---|---|
| Bearing Type | Single Row Tapered Roller Bearing |
| Model Number | F-572609 |
| Inner Diameter (d) | 53 mm |
| Outer Diameter (D) | 75 mm |
| Width / Height (T) | 16.25 mm (Total Assembly Width) |
| Outer Ring Width (B) | 12 mm (approx., varies by component) |
| Precision Class | P0 (Normal) or P5 (High Precision) |
| Material | Chrome Steel 52100 (High-Carbon Chromium Steel) |
| Cage Type | Stamped Steel Cage |
| Dynamic Load Rating | Refer to manufacturer catalog (varies by batch) |
| Static Load Rating | Refer to manufacturer catalog |
| Sealed/Unsealed | Open Type (No Seal) |
| Temperature Range | -30°C to +120°C (standard operating range) |
| Lubrication Method | Oil Bath / Splash Lubrication (Gear Oil Compatible) |
| Application | Transfer Case, Differential, Transmission Shaft Support |
| Suitable for | Nissan SUVs and Pickup Trucks |
High Load Capacity: Capable of supporting heavy radial loads and significant unidirectional axial forces.
Optimized Roller Design: Minimizes friction and internal heat buildup, enhancing transmission efficiency.
Durability & Fatigue Resistance: Designed for long service life under severe automotive operating conditions.
Precision Ground Components: Ensures smooth running and consistent performance over time.
Non-Interchangeable Components: Inner ring (cone), rollers, cage, and outer ring (cup) are matched sets — do not mix parts between bearings.
| Attribute | Specification |
|---|---|
| Bearing Type | Single Row Tapered Roller Bearing |
| Model Number | F-572609 |
| Inner Diameter (d) | 53 mm |
| Outer Diameter (D) | 75 mm |
| Width / Height (T) | 16.25 mm (Total Assembly Width) |
| Outer Ring Width (B) | 12 mm (approx., varies by component) |
| Precision Class | P0 (Normal) or P5 (High Precision) |
| Material | Chrome Steel 52100 (High-Carbon Chromium Steel) |
| Cage Type | Stamped Steel Cage |
| Dynamic Load Rating | Refer to manufacturer catalog (varies by batch) |
| Static Load Rating | Refer to manufacturer catalog |
| Sealed/Unsealed | Open Type (No Seal) |
| Temperature Range | -30°C to +120°C (standard operating range) |
| Lubrication Method | Oil Bath / Splash Lubrication (Gear Oil Compatible) |
| Application | Transfer Case, Differential, Transmission Shaft Support |
| Suitable for | Nissan SUVs and Pickup Trucks |
High Load Capacity: Capable of supporting heavy radial loads and significant unidirectional axial forces.
Optimized Roller Design: Minimizes friction and internal heat buildup, enhancing transmission efficiency.
Durability & Fatigue Resistance: Designed for long service life under severe automotive operating conditions.
Precision Ground Components: Ensures smooth running and consistent performance over time.
Non-Interchangeable Components: Inner ring (cone), rollers, cage, and outer ring (cup) are matched sets — do not mix parts between bearings.
