3508010-D818W
FAW
| Attribute | Specification |
|---|---|

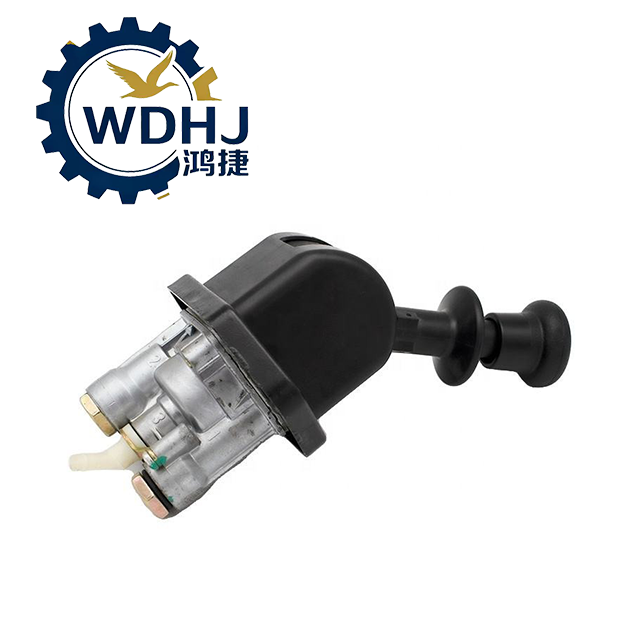

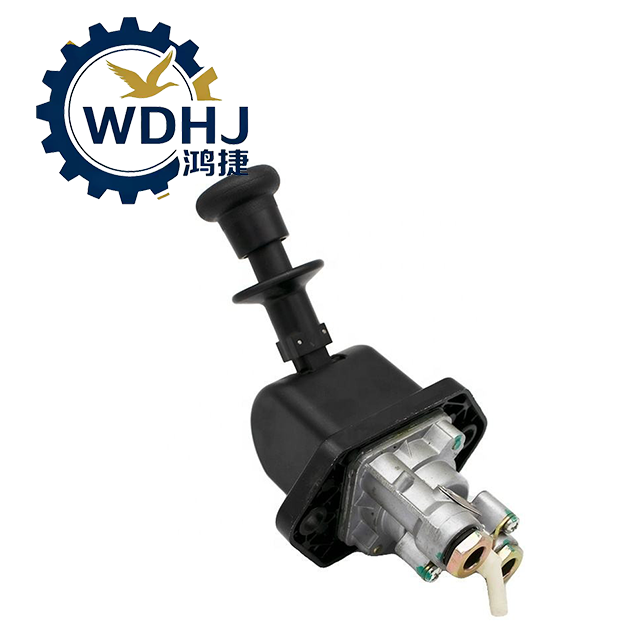

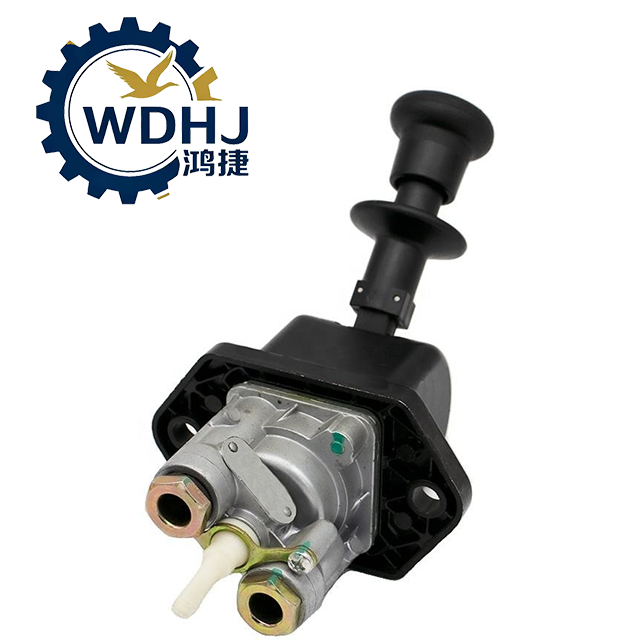

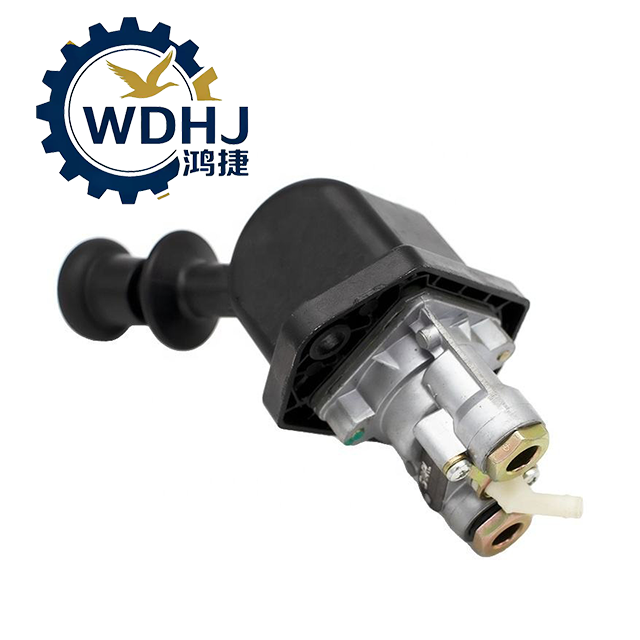

| Product Name | Hand Brake Valve / Parking Brake Control Valve |
| Part Number | 3508010-D818W |
| Alternative Numbers | 3508010-D818, 3508020-D818W, 3508010-50A, 3508G02-1500W |
| Control Medium | Compressed Air (Pneumatic System) |
| Operating Principle | Push-to-Release, Pull-to-Apply (Fail-Safe Design) |
| Handle Color | Red (standard for emergency/safety identification) |
| Valve Body Material | High-Strength Cast Iron or Aluminum Alloy |
| Internal Components | Stainless Steel Spool, Oil & Temperature-Resistant Rubber Seals |
| Number of Ports | Multiple inlet/outlet/exhaust ports |
| Port Thread Size | M10×1, M12×1.5 (metric threads, compatible with standard air fittings) |
| Vehicle Application | FAW Jiefang J6P, J6L, J6H, J5P, J5M, JH6 Series |
| Brake Compatibility | Spring-type parking brake systems (common in drum and disc setups) |
| Parameter | Value |
|---|---|
| Rated Working Pressure | 0.7 MPa – 0.8 MPa (7–8 bar / 100–116 psi) |
| Maximum Burst Pressure | > 1.0 MPa (> 10 bar) |
| Failure Mode Safety | Automatically applies brake if air pressure drops below safe level |
| Sealing Performance | Dual-seal design prevents internal leakage and slow air loss |
| Ambient Temperature Range | -40°C to +90°C (-40°F to 194°F) |
| Actuation Method | Manual lever-operated spool valve |
| Response Time | Immediate air release/recharge (<1 second) |
| Weight | Approx. 0.8 – 1.2 kg |
| Compliance Standards | Meets GB12676, ECE R13, ISO 5780, WABCO/Knorr compatibility standards |
