| Quantity: | |
|---|---|
WG9925590350 WG9925590270 WG9925590410
Sinotruk HOWO
| Attribute | Description |
|---|---|

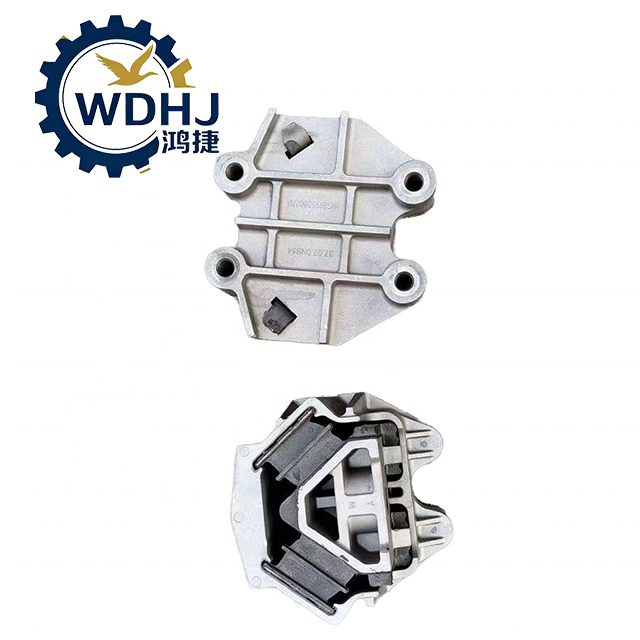

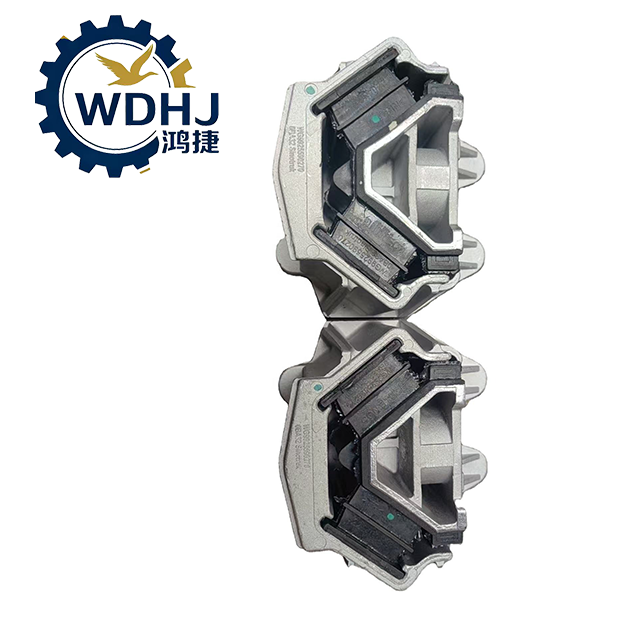

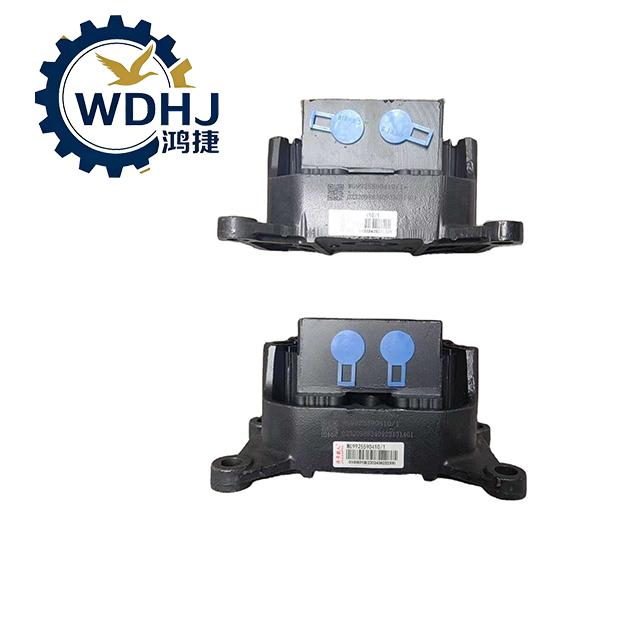

| Part Name | Engine Rear Support / Rear Engine Mount / Engine Mounting Pad |
| OEM Number | WG9925590410 |
| Position | Mounted at the rear end of the engine, typically near the flywheel housing or gearbox interface |
| Material | |
| • Outer housing: High-strength steel plate | |
| • Internal core: Vibration-damping rubber compound (70°A–80°A Shore hardness) | |
| Design Type | Rubber-metal bonded structure with bolt-through flange mounting |
| Load Capacity | Supports several hundred kilograms of engine mass under dynamic conditions |
| Damping Performance | Absorbs engine vibrations and torsional shocks during acceleration, deceleration, and idle |
| Sealing Level | Fully sealed design — resists oil mist, moisture, and dust ingress |
| Dimensions | Standard OEM size — designed to match original chassis and engine cutouts |
| Weight | Approx. 3.0 – 4.5 kg |
| Function | |
| • Supports engine rear load | |
| • Reduces noise, vibration, and harshness (NVH) | |
| • Maintains drivetrain alignment | |
| • Prevents stress cracking in engine mounts | |
| Condition | Brand new (OEM fresh stock or premium aftermarket) |
Name1
Name2
Professional Installation Required
Involves lifting the engine slightly — must be done by trained technicians using proper jacks and safety stands.
Never rely solely on hydraulic jack.
Support the Engine Properly
Use an engine support bar mounted to the chassis rails.
Remove only one mount at a time if possible.
Replace in Pairs When Necessary
If one rear mount is damaged, inspect all other engine supports.
Replace together to ensure balanced load distribution.
Align Before Final Tightening
Ensure mounting holes align perfectly before tightening bolts.
Misalignment causes stress and early failure.
Torque Bolts to Specification
Typically requires 100–150 Nm depending on thread size.
Under-tightening → loosening; Over-tightening → cracked bracket or stripped threads.
Inspect for Oil Contamination
Oil-soaked mounts lose elasticity — replace immediately if swollen or sticky.
Check for Cracks and Separation
Rubber tearing
Metal fatigue
Delamination between steel and rubber
Look for visible signs of:
Replace at first sign of damage.
Avoid Using Damaged Units
Do not install a cracked or deformed mount — risk of complete failure.
Use Genuine or High-Quality Replacements
Low-cost imitations often use inferior rubber compounds that harden quickly.
Storage Advice
Store upright in dry indoor environment.
Keep away from direct sunlight and ozone sources (e.g., motors).
